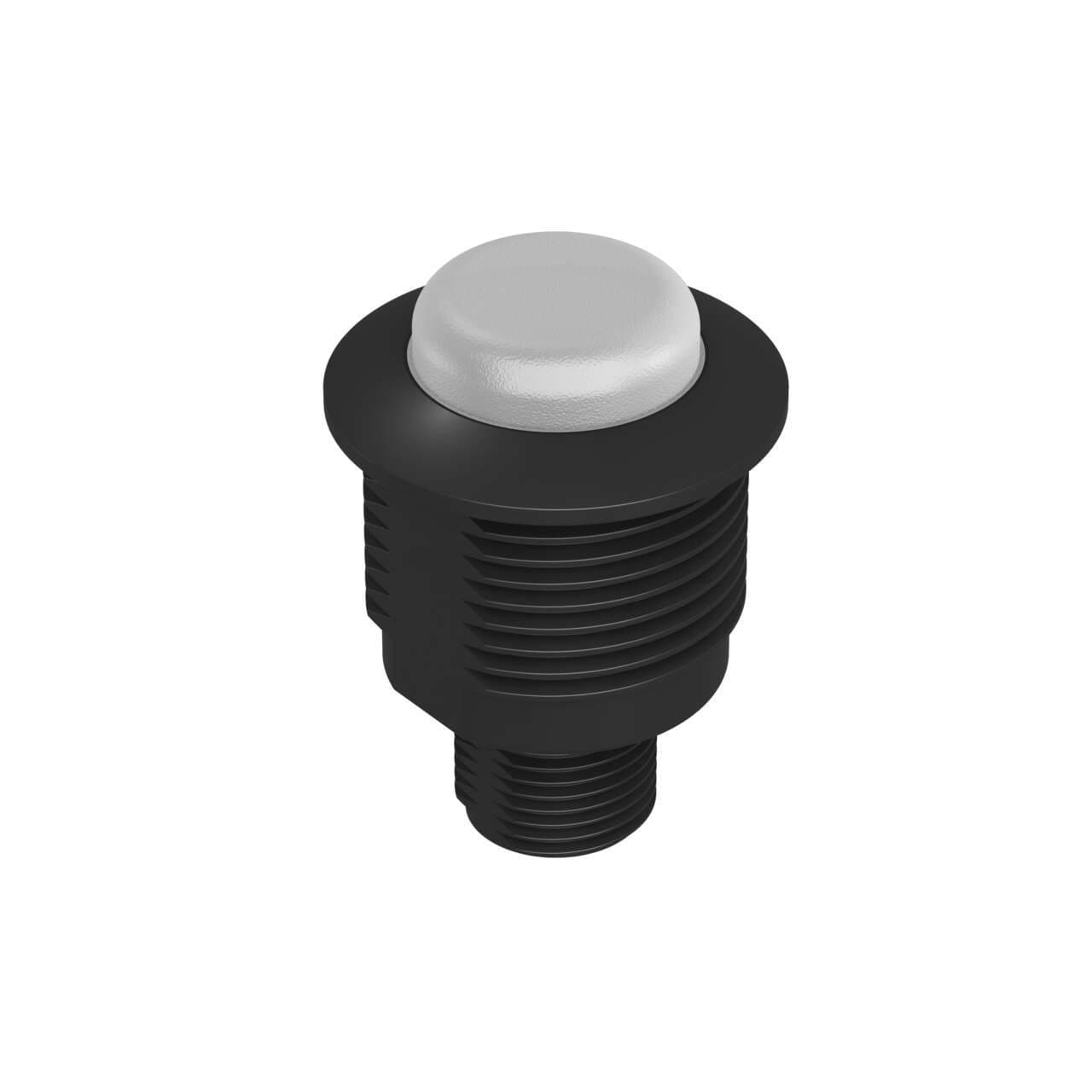

S22LYXXPQ Banner Pick-to-Light Sensors
Part#:S22LYXXPQ
Alt. Part#:86072
Manufacturer:Banner
Category:Pick-to-Light Sensors
Product Lifecycle:Active
Product description
S22 EZ Light - 22 mm - IP67; Single Color: Yellow; 10-30 V dc PNP Input; 4-pin M12 Integral QD
Product Details
- Weight 38.55532 g
- Country Of Origin CN
- Housing Style Barrel Mount - Flat Window
- Color Option 1 Yellow
- Max Input Response Time (ms) 1
- Feature: Hazardous Area No
- Color Input Control Individual (One wire/color, same number of colors as input wires)
- Animation Option 1 Solid On
- Supply Voltage 10-30 V dc
- Feature: Chemical Resistant No
- Indication Yes
- Color 1 - Wavelength/Color Temp/Coordinates 590 nm
- Primary Housing Color Black
- IO Link No
- Power DC
- Max Current Color (mA) 25
- Max Op. Temperature (°C) 50
- Modbus RTU No
- Product Size (mm) 22
- Power Source DC
- Physical Dimensions (LxWxH or DxH mm) 26.0 x 35.3
- Feature: Washdown Rated Yes
- Mounting Thread M22 x 1.5
- Quick Disconnect Type M12 (Euro)
- NEMA Type and UL Type Rating NEMA and UL 4X, 13
- Feature: Audible No
- Cable Length (m) 0.15
- Color Technology Standard LED
- Input Type PNP
- Min Op. Temperature (°C) -40
- Wireless No
- Number of Colors / Segments 1
- Lumens Color 1 0.80
- Number of Input Pins/Conductors 4
- Multi-Color Device Single Color On
- Primary Housing Material Polycarbonate
- Connection Integral QD
- Environmental Rating IP67; IP69
- Pro-Editor Compatible (Discrete) No
- Primary Window Material Polycarbonate Diffused
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of S22LYXXPQ on Powermatic Associates is $36.00. Order now.
About the product
Banner Engineering S22LYXXPQ is a pilot light from the EZ-LIGHT series, featuring 1-color yellow LED illumination. This part is designed with a polycarbonate (PC) diffused window and a polycarbonate (PC) base, ensuring durability. It has a 22mm indicator diameter and is equipped with a 4-pin M12 Euro-style QD connector for connectivity. The housing is black, and it operates on a supply voltage of 10Vdc-30Vdc (12Vdc-24Vdc nom.). The S22LYXXPQ is designed for flush mounting in a 22mm hole with an M22 thread. It can operate in ambient air temperatures ranging from -40°C to +50°C. This part boasts a high degree of protection, with ratings of IP67, IP69K, NEMA 4X, NEMA 13, UL type 4X, and UL type 13. The shape is characterized by a flat window and a threaded cylindrical barrel. It has a current consumption of 25mA and includes 1 x digital input (10-30Vdc; PNP) for color control.
