SAB-497RB1LP6-Q5E Banner Safety Light Curtains
Part#:SAB-497RB1LP6-Q5E
Alt. Part#:805074
Manufacturer:Banner
Category:Safety Light Curtains
Product Lifecycle:Active
Product description
WORLD-BEAM QS18 Series: 6 Beam Sensor Array; Polarized Retro; Range: 1 m; Input: 10-30 V dc; Outputs: Bipolar NPN and PNP Dark Operate; 150 mm (6 in) 4-pin M12 Pigtail QD
Product Details
- Weight 861.8248 g
- Country Of Origin US
- Min Op. Temperature (°C) -20
- Beam to Beam Spacing [mm] 82.55
- Cable Length (m) 0.2
- Quick Disconnect Type M12 (Euro)
- Primary Housing Material Black Anodized Aluminum
- Output response time (ms) 1.5
- Indicator Indicator LEDs
- Feature: Hazardous Area No
- Sensing Mode (General) Proximity
- Operation Dark Operate
- Power DC
- Outputs Bipolar (NPN & PNP)
- Adjustments N/A
- NEMA Rating N/A
- Slot Depth/Array Length (mm) 497
- Number of Pins 4
- Delay at Power-up (ms) N/A
- Feature: Encapsulated No
- Sensing Mode (Detailed) Polarized Retro
- Slot Overall Depth (mm) 36
- Lens Material Acrylic
- Feature: Timing (Hold/Delay) No
- Input/Output Discrete
- Connection Pigtail QD
- Max Op. Relative Humidity (%) 95% @ 50°C
- Distance to First Beam [mm] 42.0
- Max Sensing Range (mm) 1000
- Repeatability (µs) N/A
- Max Op. Temperature (°C) 55
- Feature: Audible No
- Housing Style Sensing Array Bar
- Power Supply/Supply Voltage 10-30 V dc
- IP Rating IP50
- Number of Beams 6
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of SAB-497RB1LP6-Q5E on Powermatic Associates is $656.00. Order now.
About the product

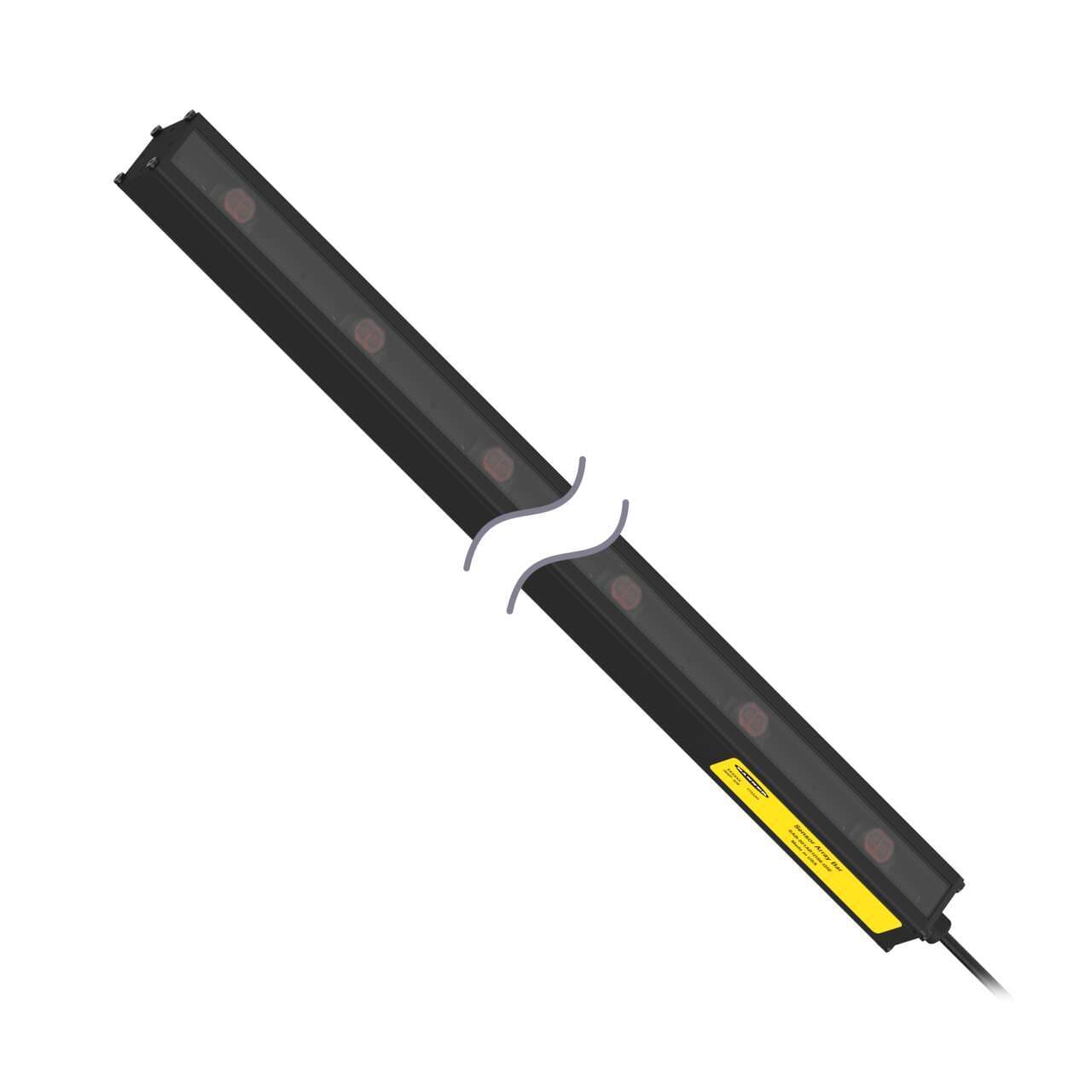

Banner Engineering SAB-497RB1LP6-Q5E is a sensor from the QS18 series designed in a retro-reflective mode. This polarized measuring light curtain array sensor features an anodized aluminum housing with an acrylic lens. It comes pre-wired with a 6" / 150mm pigtail terminated with a 4-pin Euro-style M12 connector. The sensor has a protective height of 413mm and is housed in black. It operates on a supply voltage of 10Vdc-30Vdc (12Vdc / 24Vdc nom.) and can function within an ambient air temperature range of -20 to +55°C. With an IP50 degree of protection, it is rectangular in shape, measuring 36mm in width, 497mm in height, and 38mm in depth. The sensor includes 1 x digital output (PNP/NPN transistor), has a sensing distance of 1m, emits visible red light with a wavelength of 624 nm, and operates in a Dark-ON mode.
