SGSXP4-300Q88 Banner Safety Light Curtains
Part#:SGSXP4-300Q88
Alt. Part#:803223
Manufacturer:Banner
Category:Safety Light Curtains
Product Lifecycle:Active
Product description
SGS Safety Grid System, Emitter/Receiver Pair; Beams: 4; Resolution: 300 mm; Range: 6 to 60 m; 8-pin M12 Integral QD; Scan Codes, Auto/Manual Start/Restart, EDM; Mounting Hardware Ordered Separately
Product Details
- Weight 5098.37408 g
- Country Of Origin HU
- Defined Area Height (mm) 900
- Operating Distance (m) 6 - 60
- Reduced Resolution No
- Primary Housing Material Aluminum
- Operating Temperature 0 to +55 deg. C; RH 95%
- IP Rating IP65
- Operating Voltage 24 V dc +/- 20%
- Response Time 14
- Scan Code Selectable
- OSSD Rating 24 V dc at 0.5 A each
- External Monitoring Device 1 Channel
- Effective Aperture Angle Type 4 Per IEC 61496-2
- Number of Pins (Receiver/Emitter) 8,8
- Recovery Time N/A
- Electrical Safety Class III
- Fault Output No
- Dimensions WxD (mm) 52 x 56.9
- Connector Type M12
- SIL Rating SIL3; CL3
- Supply Current 500 mA
- Feature: Integral Muting No
- Feature: ESD Safe No
- System Type Emitter/Receiver Pair
- Resolution (mm) 4 - 300
- Trip/Latch Output Selectable
- Fixed Blanking No
- Auxiliary Output No
- Short Protection Yes
- Test Input No
- Shock 10g at 16ms (6000 cycles)
- Feature: End-to-End Sensing No
- Overall Length (mm) 1006.35
- Safety Level Type 4
- Housing Finish Yellow Polyester
- PL Rating Ple
- Vibration 10-55 Hz at 0.35 mm
- Housing Material Aluminum; PMMA
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of SGSXP4-300Q88 on Powermatic Associates is $1,837.00. Order now.
About the product

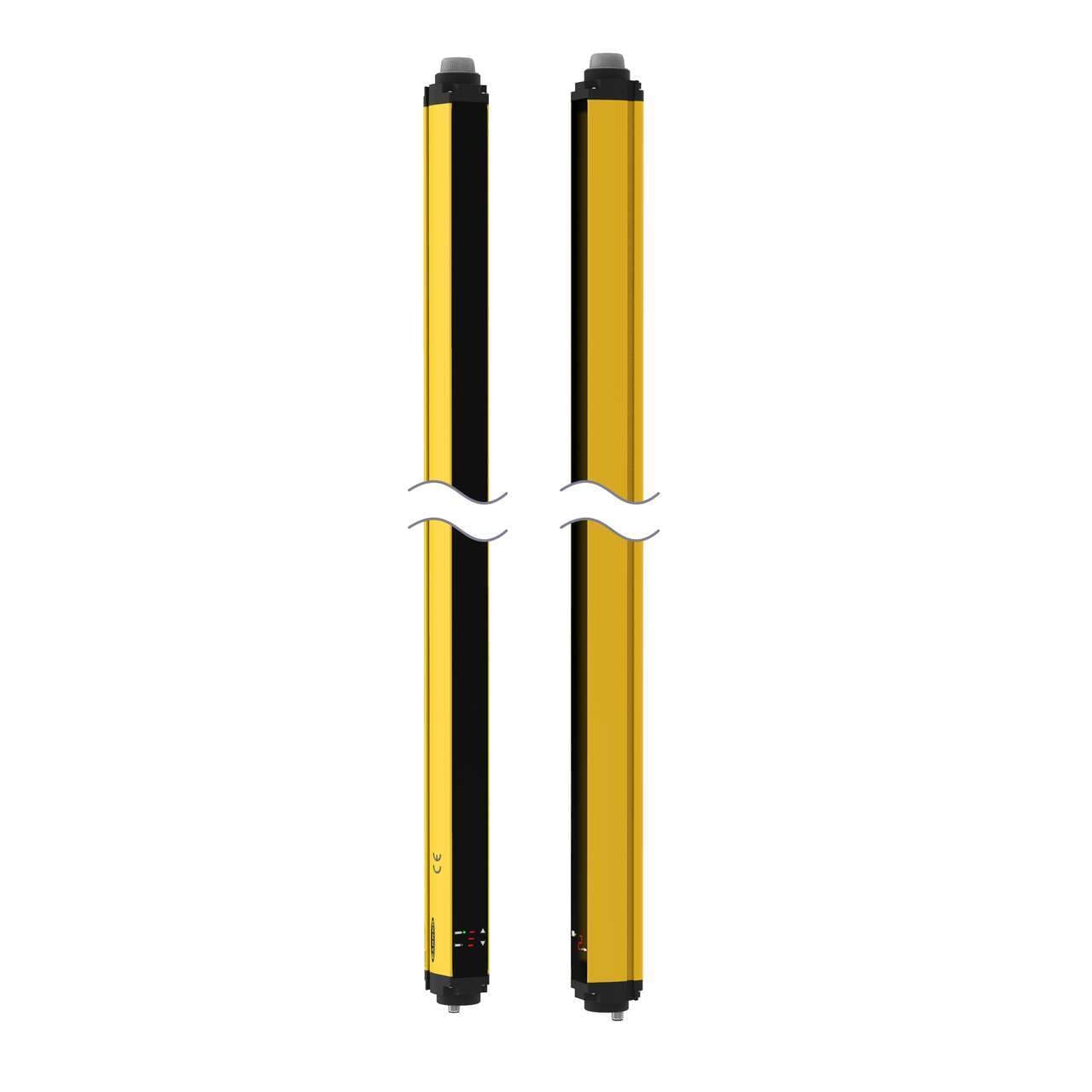

Banner Engineering SGSXP4-300Q88 is a safety light curtain designed for long-range applications within the SGS series. This unit comprises an emitter and receiver pair housed in aluminum with Polymethyl methacrylate (PMMA) lenses and thermoplastic end caps. It features a pre-equipped 8-pin Euro-style M12 connector for connectivity. The device offers a protective height of 900mm and comes in a yellow housing. It operates on a 24Vdc supply voltage and can function within an ambient air temperature range of 0 to +55°C. With an IP65 degree of protection, it is designed to withstand harsh environments. The dimensions include a net width of 52 mm, a net height of 1007 mm, and a net depth of 57 mm. It is configured with 4 beams at a 300mm beam spacing/pitch, alongside 2 x digital outputs (24Vdc; 500mA; sourcing; redundant OSSD solid-state outputs) for signaling. The sensing distance ranges from 6 to 60 meters, utilizing infrared (IR) light with a wavelength of 950 nm and a response time of 14ms / 0.014 s. The resolution is set at 300mm, making it suitable for perimeter access guarding applications.
