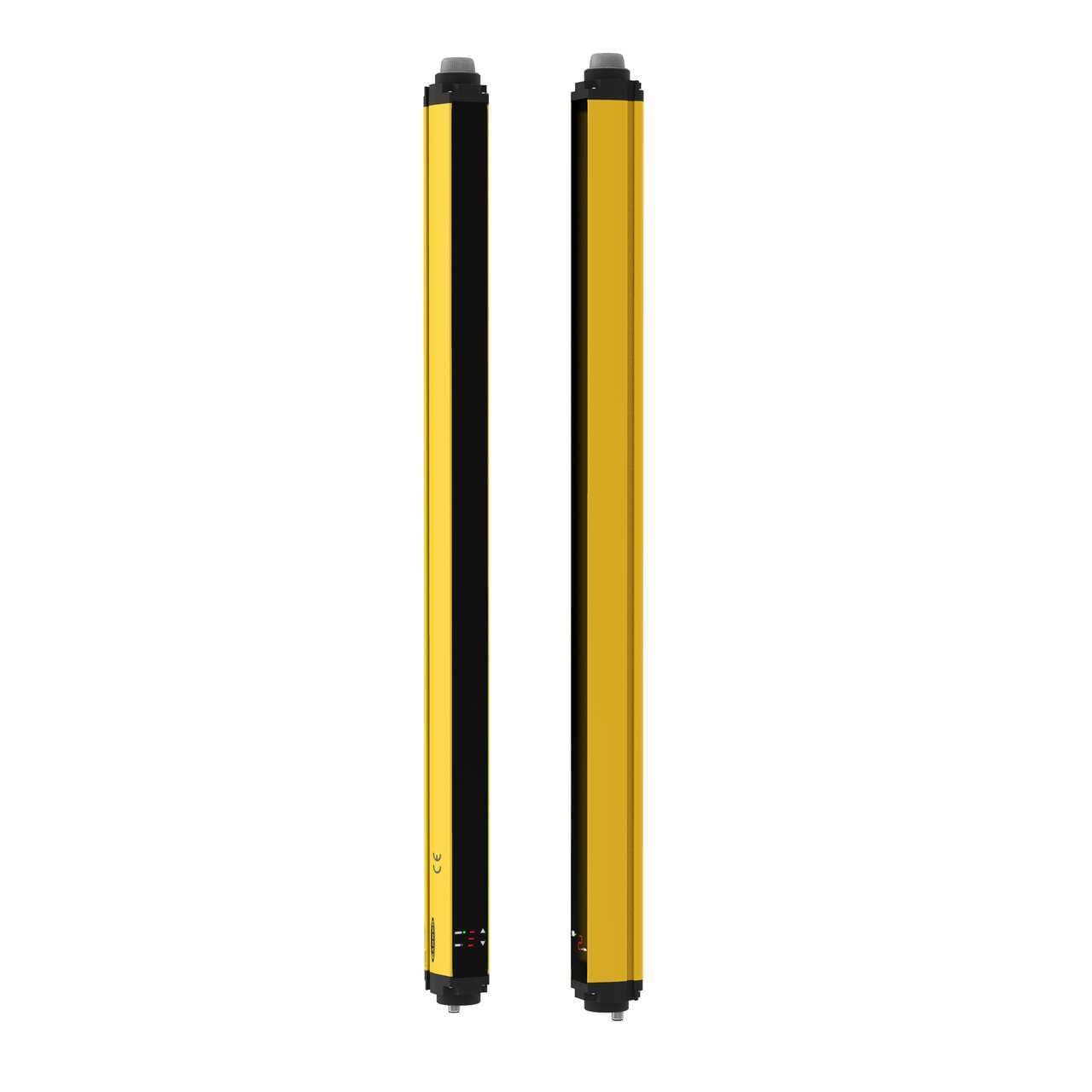

SGSXP4-400Q88 Banner Safety Light Curtains
Part#:SGSXP4-400Q88
Alt. Part#:803224
Manufacturer:Banner
Category:Safety Light Curtains
Product Lifecycle:Active
Product description
SGS Safety Grid System, Emitter/Receiver Pair; Beams: 4; Resolution: 400 mm; Range: 6 to 60 m; 8-pin M12 Integral QD; Scan Codes, Auto/Manual Start/Restart, EDM; Mounting Hardware Ordered Separately
Product Details
- Weight 6849.2392 g
- Country Of Origin HU
- Dimensions WxD (mm) 52 x 56.9
- Overall Length (mm) 1306.35
- Number of Pins (Receiver/Emitter) 8,8
- SIL Rating SIL3; CL3
- Auxiliary Output No
- Connector Type M12
- Operating Distance (m) 6 - 60
- Scan Code Selectable
- Effective Aperture Angle Type 4 Per IEC 61496-2
- IP Rating IP65
- Electrical Safety Class III
- Operating Temperature 0 to +55 deg. C; RH 95%
- External Monitoring Device 1 Channel
- Defined Area Height (mm) 1200
- Fixed Blanking No
- Resolution (mm) 4 - 400
- Primary Housing Material Aluminum
- Housing Finish Yellow Polyester
- Response Time 14
- Supply Current 500 mA
- Operating Voltage 24 V dc +/- 20%
- Short Protection Yes
- Trip/Latch Output Selectable
- Shock 10g at 16ms (6000 cycles)
- Fault Output No
- PL Rating Ple
- OSSD Rating 24 V dc at 0.5 A each
- Reduced Resolution No
- Feature: End-to-End Sensing No
- Vibration 10-55 Hz at 0.35 mm
- Housing Material Aluminum; PMMA
- System Type Emitter/Receiver Pair
- Feature: Integral Muting No
- Test Input No
- Recovery Time N/A
- Safety Level Type 4
- Feature: ESD Safe No
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of SGSXP4-400Q88 on Powermatic Associates is $1,969.00. Order now.
About the product
Banner Engineering SGSXP4-400Q88 is a safety light curtain designed for long-range applications within the SGS series. This unit comprises an emitter and receiver pair housed in aluminum with Polymethyl methacrylate (PMMA) lenses and thermoplastic end caps. It features a pre-equipped 8-pin Euro-style M12 connector for connectivity. The dimensions include a 1200mm protective height, a net width of 52 mm, a net height of 1307 mm, and a net depth of 57 mm. The housing is colored yellow, and it operates on a 24Vdc supply voltage. The SGSXP4-400Q88 is designed to function within an ambient air temperature range of 0 to +55 °C and offers a degree of protection rated at IP65. It has 4 beams with a 400mm beam spacing/pitch and includes 2 x digital outputs (24Vdc; 500mA; sourcing; redundant OSSD solid-state outputs). The sensing distance ranges from 6 to 60 meters, with an infrared light color, a response time of 14ms / 0.014 s, and a wavelength of 950 nm. The resolution is set at 400mm for perimeter access guarding.
