SLPCP14-1110 Banner Safety Light Curtains
Part#:SLPCP14-1110
Alt. Part#:83799
Manufacturer:Banner
Category:Safety Light Curtains
Product Lifecycle:Active
Product description

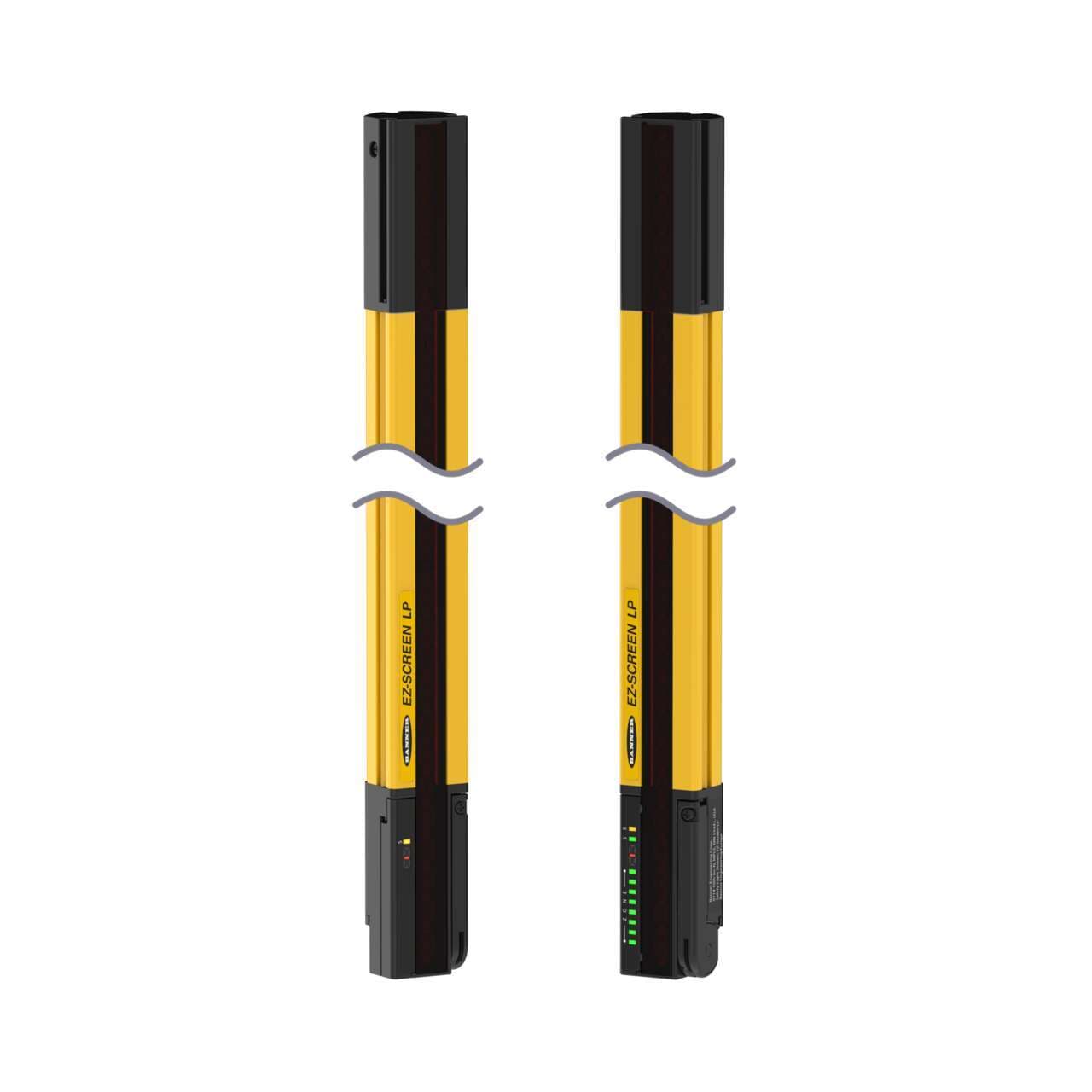

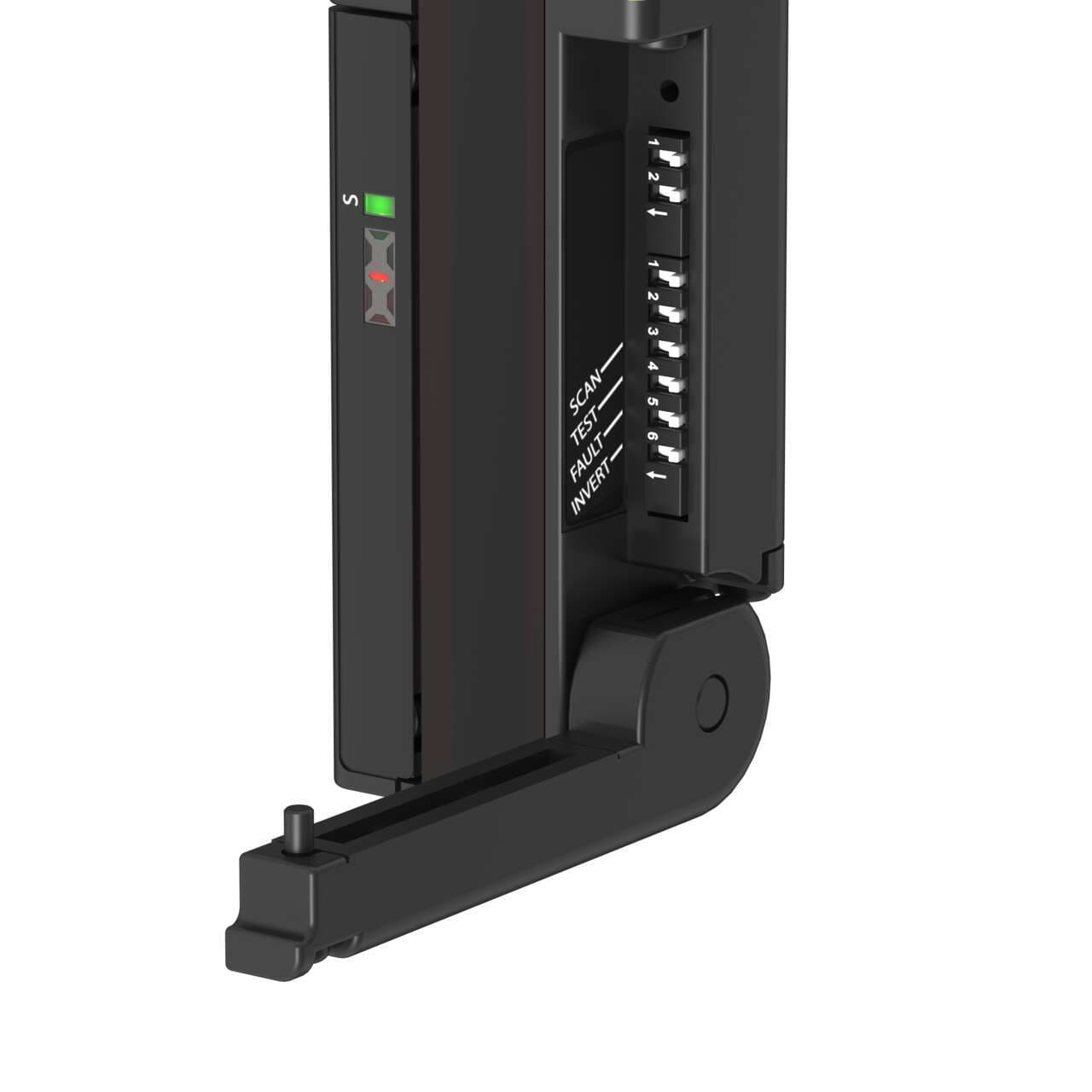

SLPCP14-1110 EZ-SCREEN Low Profile Cascade Pair; Resolution: 14 mm; Response (Tr): 28.5 ms; Beams: 111; Range: 0.1-7 m (4 in - 23 ft); Height: 1110 mm (43.7 in); Integral RD
Product Details
- Weight 3311.2216 g
- Country Of Origin US
- Defined Area Height (mm) 1110
- Housing Finish Yellow Polyester
- low-profile Yes
- Electrical Safety Class III
- OSSD Rating 24 V dc at 0.5 A each
- Overall Length (mm) 1110
- External Monitoring Device 1 or 2 Channel
- Resolution (mm) 14
- Auxiliary Output Yes
- Reduced Resolution No
- Fault Output Yes
- Feature: Integral Muting No
- Primary Housing Material Aluminum
- IP Rating IP65
- SIL Rating SIL3; CL3
- Supply Current 210 mA max.
- Effective Aperture Angle Type 4 Per IEC 61496-2
- Operating Temperature 0 to +55 deg. C; RH 95%
- Vibration 10-55 Hz at 0.35 mm
- Feature: End-to-End Sensing Yes
- Connector Type Removable Disconnect
- Operating Distance (m) 0.1 - 7
- Scan Code Selectable
- Trip/Latch Output Selectable
- Fixed Blanking Yes
- Response Time 28.5
- Housing Material Aluminum; Zinc; Acrylic
- Operating Voltage 24 V dc +/- 15%
- Shock 10g at 16ms (6000 cycles)
- Test Input Yes
- Safety Level Type 4
- Recovery Time 33-220 / 109-800
- Short Protection Yes
- Feature: Cascade Yes
- Dimensions WxD (mm) 28 x 26
- PL Rating Ple
- System Type Emitter/Receiver Pair
- Feature: ESD Safe No
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of SLPCP14-1110 on Powermatic Associates is $4,386.00. Order now.
About the product
Banner Engineering SLPCP14-1110 is a safety light curtain from the LP Low-Profile series, designed for finger detection with a resolution of 14mm. This cascadable unit features an emitter and receiver pair housed in aluminum with acrylic lens and zinc end caps. It offers a protective height of 1110mm and operates with a 24Vdc supply voltage. The SLPCP14-1110 operates within an ambient air temperature range of 0 to +55°C and is rated IP65 for protection against dust and water jets. It has a net width of 28mm, a height of 1108mm, and a depth of 26mm. The light curtain provides a sensing distance from 10cm to 7m using infrared light with a wavelength of 850nm. It includes two digital outputs (24Vdc; 500mA; sourcing; redundant OSSD solid-state outputs), one digital output (24Vdc; 250mA; PNP transistor) for fault indication, one digital input (10Vdc-30Vdc; 30mA) for external device monitoring (EDM), and one digital input (10Vdc-30Vdc) for reset functions. The response time is 28.5ms, and it features a wiring chamber connection for installation. The housing is colored yellow.
