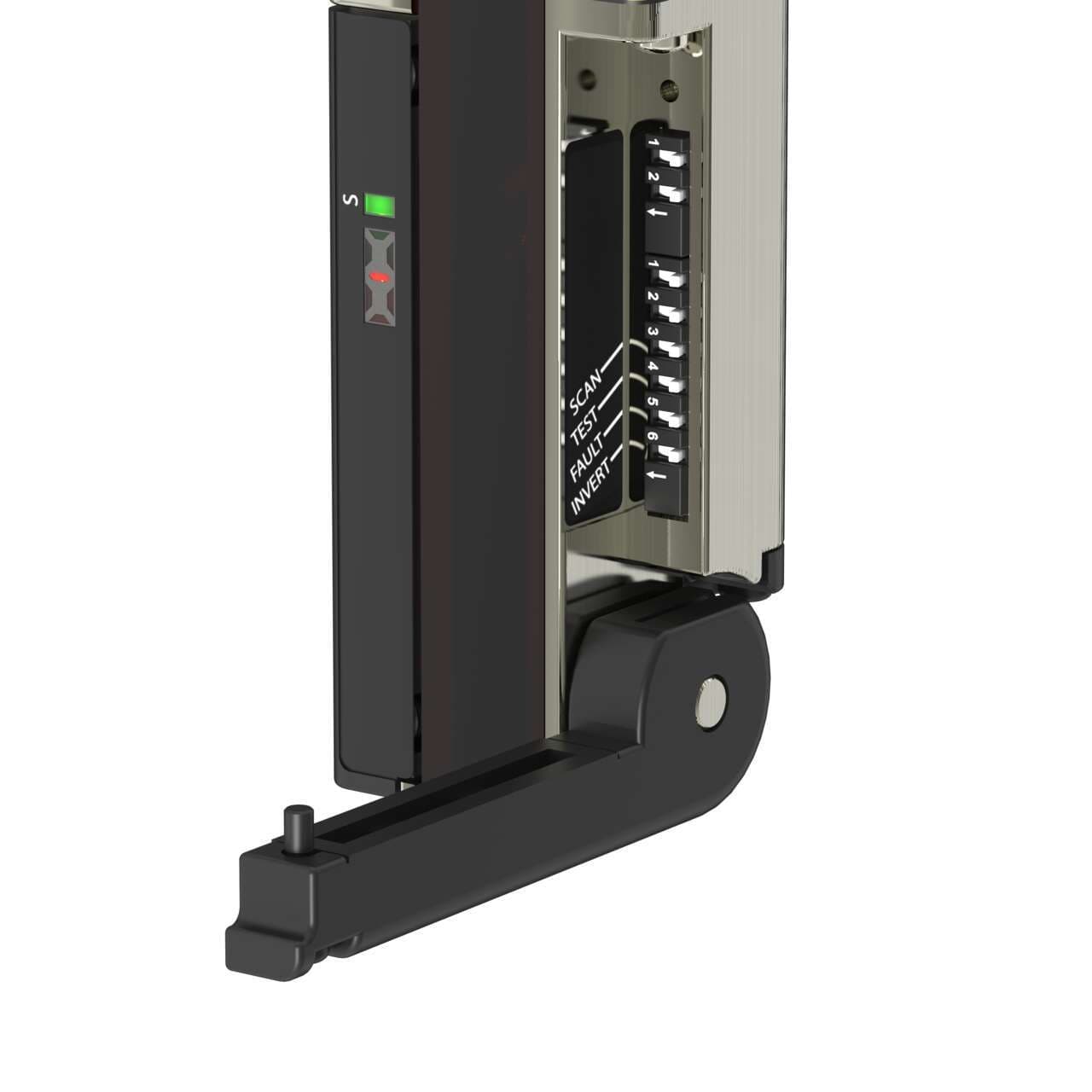

SLPCP14-550N Banner Safety Light Curtains

SLPCP14-550N on Powermatic Associates
Banner
  • SLPCP14-550N
  • SLPCP14-550N

Part#:SLPCP14-550N

Alt. Part#:84314

Manufacturer:Banner

Category:Safety Light Curtains

Product Lifecycle:Active

Product description

SLPCP14-550N EZS LP PAIR 14 mm x 550 mm CASCADE

Product Details

  • Weight
    3734.876528 g
  • Country Of Origin
    US
  • Connector Type
    Removable Disconnect
  • Housing Finish
    Nickel Plated
  • Safety Level
    Type 4
  • Electrical Safety Class
    III
  • Primary Housing Material
    Aluminum
  • Overall Length (mm)
    550
  • Resolution (mm)
    14
  • Vibration
    10-55 Hz at 0.35 mm
  • Feature: ESD Safe
    Yes
  • External Monitoring Device
    1 or 2 Channel
  • Dimensions WxD (mm)
    28 x 26
  • PL Rating
    Ple
  • Shock
    10g at 16ms (6000 cycles)
  • Effective Aperture Angle
    Type 4 Per IEC 61496-2
  • low-profile
    Yes
  • Operating Voltage
    24 V dc +/- 15%
  • Defined Area Height (mm)
    550
  • Operating Distance (m)
    0.1 - 7
  • Response Time
    16.5
  • Short Protection
    Yes
  • Feature: Cascade
    Yes
  • Supply Current
    210 mA max.
  • Recovery Time
    33-220 / 109-800
  • Reduced Resolution
    Yes
  • System Type
    Emitter/Receiver Pair
  • Trip/Latch Output
    Selectable
  • Fixed Blanking
    Yes
  • Auxiliary Output
    Yes
  • Test Input
    Yes
  • IP Rating
    IP65
  • Feature: End-to-End Sensing
    Yes
  • Operating Temperature
    0 to +55 deg. C; RH 95%
  • Scan Code
    Selectable
  • Housing Material
    Aluminum; Zinc; Acrylic
  • Feature: Integral Muting
    No
  • SIL Rating
    SIL3; CL3
  • Fault Output
    Yes
  • OSSD Rating
    24 V dc at 0.5 A each

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of SLPCP14-550N on Powermatic Associates is $3,005.00. Order now.


About the product

Banner Engineering SLPCP14-550N is a safety light curtain from the LP Low-Profile series designed with an ESD-safe, cascadable design. This part features a nickel-plated aluminum housing, acrylic lens, and zinc end cap, ensuring durability and longevity. It offers a protective height of 550mm and comes in a silver housing. The SLPCP14-550N operates on a 24Vdc supply voltage and can function within an ambient air temperature range of 0 to +55°C. It is rated with an IP65 degree of protection, indicating a high level of protection against dust and water jets. The net dimensions of this part are 28mm in width, 549mm in height, and 26mm in depth, with a 14mm beam spacing/pitch for precise detection. It includes 2 x digital outputs (24Vdc; 500mA; sourcing; redundant OSSD solid-state outputs) and 1 x digital output (24Vdc; 250mA; PNP transistor) for FAULT output. Additionally, it features 1 x digital input (10Vdc-30Vdc; 30mA) for EDM input and 1 x digital input (10Vdc-30Vdc) for RESET input. The sensing distance ranges from 10cm to 7m, with an infrared light color at a wavelength of 850 nm. The resolution is set at 14mm for finger detection, and it has a response time of 16.5ms / 0.0165 s.
