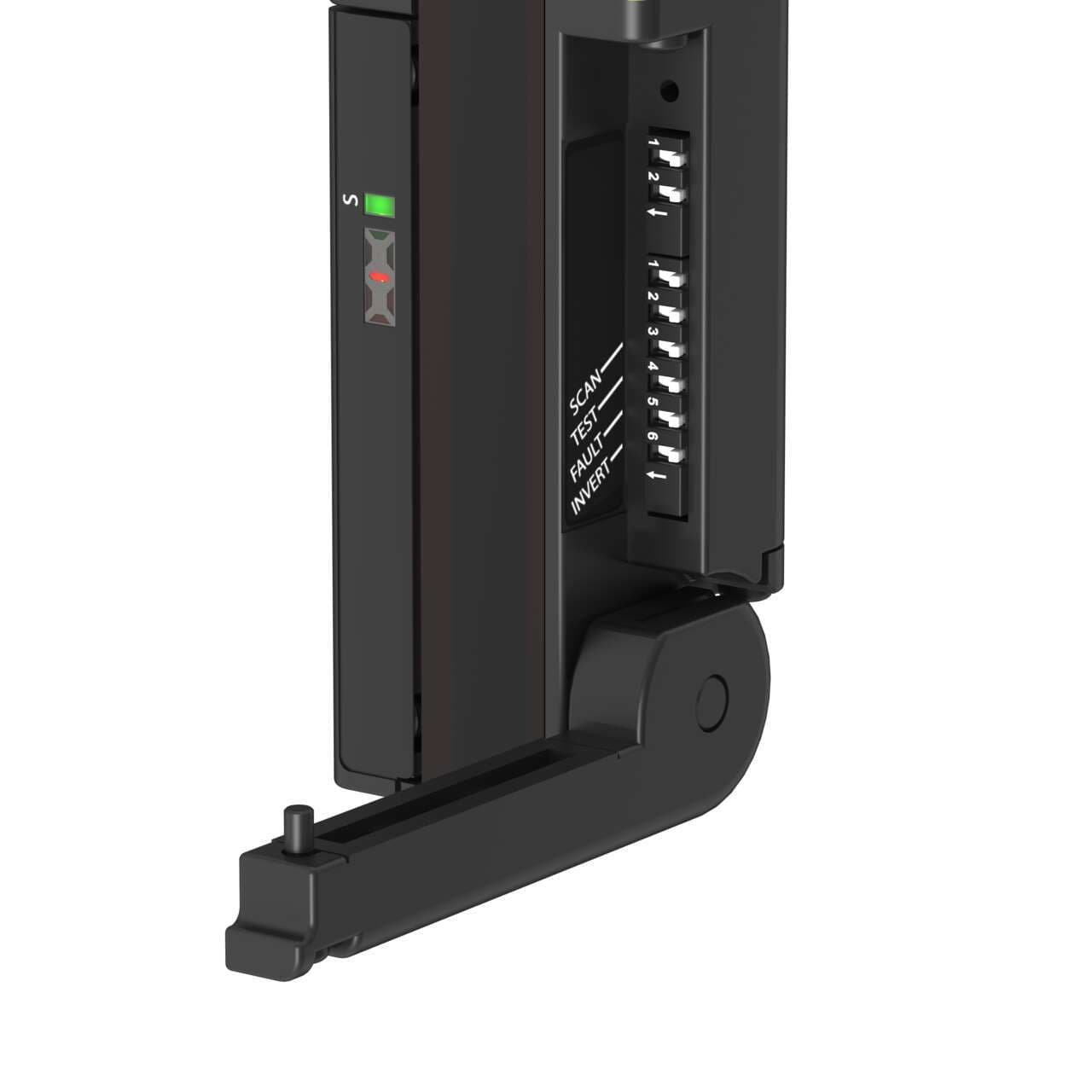

SLPCP25-550 Banner Safety Light Curtains
Part#:SLPCP25-550
Alt. Part#:83806
Manufacturer:Banner
Category:Safety Light Curtains
Product Lifecycle:Active
Product description
SLPCP25-550 EZ-SCREEN Low Profile Cascade Pair; Resolution: 25 mm; Response (Tr): 11 ms; Beams: 28; Range: 0.1-7 m (4 in - 23 ft); Height: 550 mm (21.7 in); Integral RD
Product Details
- Weight 3084.4256 g
- Country Of Origin US
- Feature: Integral Muting No
- Feature: ESD Safe No
- Feature: End-to-End Sensing Yes
- Feature: Cascade Yes
- Test Input Yes
- Trip/Latch Output Selectable
- Supply Current 210 mA max.
- OSSD Rating 24 V dc at 0.5 A each
- Vibration 10-55 Hz at 0.35 mm
- Housing Material Aluminum; Zinc; Acrylic
- Fault Output Yes
- Auxiliary Output Yes
- System Type Emitter/Receiver Pair
- Short Protection Yes
- Shock 10g at 16ms (6000 cycles)
- Scan Code Selectable
- Electrical Safety Class III
- SIL Rating SIL3; CL3
- Response Time 11
- Reduced Resolution No
- Resolution (mm) 25
- Recovery Time 25-152 / 81-495
- Operating Distance (m) 0.1 - 7
- PL Rating Ple
- Operating Voltage 24 V dc +/- 15%
- Housing Finish Yellow Polyester
- Operating Temperature 0 to +55 deg. C; RH 95%
- IP Rating IP65
- Fixed Blanking Yes
- Defined Area Height (mm) 550
- Overall Length (mm) 550
- Effective Aperture Angle Type 4 Per IEC 61496-2
- Connector Type Removable Disconnect
- Primary Housing Material Aluminum
- External Monitoring Device 1 or 2 Channel
- Safety Level Type 4
- low-profile Yes
- Dimensions WxD (mm) 28 x 26
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of SLPCP25-550 on Powermatic Associates is $2,178.00. Order now.
About the product
Banner Engineering SLPCP25-550, part of the LP Low-Profile series, is a safety light curtain designed for hand detection with a resolution of 25mm. This cascadable unit features an emitter and receiver pair housed in aluminum with acrylic lenses and zinc end caps. It offers a protective height of 550mm and is equipped with a wiring chamber connection for installation. The SLPCP25-550 operates on a 24Vdc supply voltage and can function within an ambient air temperature range of 0 to +55°C. It is rated IP65 for protection against dust and water jets. The dimensions include a net width of 28mm, height of 549mm, and depth of 26mm. The yellow housing encompasses digital outputs: two 24Vdc, 500mA sourcing redundant OSSD solid-state outputs, and one 24Vdc, 250mA PNP transistor FAULT output. Additionally, it features one digital input for EDM and one for RESET, both accepting 10Vdc to 30Vdc at 30mA. The sensing distance ranges from 10cm to 7m, with an infrared light color at a wavelength of 850nm and a response time of 11ms.
