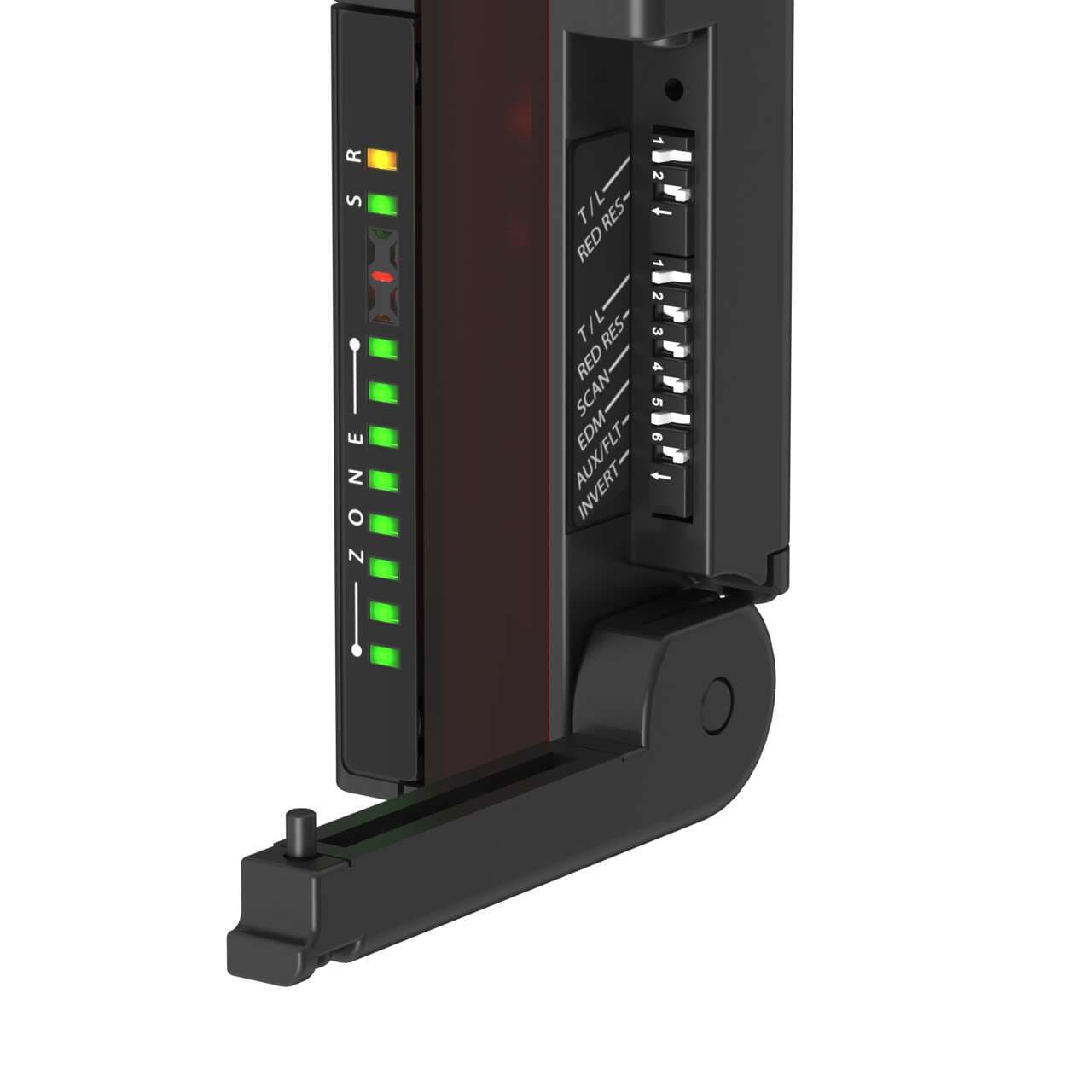

SLPCR14-690P8 Banner Safety Light Curtains
Part#:SLPCR14-690P8
Alt. Part#:83601
Manufacturer:Banner
Category:Safety Light Curtains
Product Lifecycle:Active
Product description
SLPCR14-690P8 EZ-SCREEN Low Profile Cascade Receiver; Resolution: 14 mm; Response (Tr): 19.5 ms; Beams: 69; Range: 0.1-7 m (4 in - 23 ft); Height: 690 mm (27.2 in); 300 mm (1 ft) 8-pin M12 Pigtail QD
Product Details
- Weight 725.7472 g
- Country Of Origin US
- Feature: ESD Safe No
- Fault Output Yes
- Feature: Integral Muting No
- Feature: End-to-End Sensing Yes
- Feature: Cascade Yes
- OSSD Rating 24 V dc at 0.5 A each
- Supply Current 150 mA max.
- Trip/Latch Output Selectable
- Test Input No
- Auxiliary Output Yes
- Vibration 10-55 Hz at 0.35 mm
- System Type Receiver
- Housing Material Aluminum; Zinc; Acrylic
- Shock 10g at 16ms (6000 cycles)
- Scan Code Selectable
- Electrical Safety Class III
- Short Protection Yes
- Response Time 19.5
- SIL Rating SIL3; CL3
- Reduced Resolution Yes
- Number of Pins (Receiver/Emitter) 8
- Resolution (mm) 14
- Operating Distance (m) 0.1 - 7
- Fixed Blanking Yes
- IP Rating IP65
- Operating Temperature 0 to +55 deg. C; RH 95%
- Operating Voltage 24 V dc +/- 15%
- Housing Finish Yellow Polyester
- Recovery Time 33-220 / 109-800
- PL Rating Ple
- Overall Length (mm) 690
- Primary Housing Material Aluminum
- External Monitoring Device 1 or 2 Channel
- Defined Area Height (mm) 690
- Safety Level Type 4
- Dimensions WxD (mm) 28 x 26
- Effective Aperture Angle Type 4 Per IEC 61496-2
- Connector Type M12 Pigtail (Yellow)
- low-profile Yes
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of SLPCR14-690P8 on Powermatic Associates is $1,806.00. Order now.
About the product
Banner Engineering SLPCR14-690P8 is a safety light curtain from the LP Low-Profile series designed for finger detection with a resolution of 14mm. This cascadable unit features an aluminium housing, acrylic lens, and zinc end caps, ensuring durability. It is pre-wired with a 300mm pigtail that terminates with an 8-pin Euro-style M12 connector for easy installation. The safety light curtain operates at a supply voltage of 24Vdc and can function within an ambient air temperature range of 0 to +55°C. With a protective height of 690mm and dimensions of 28mm in width, 689mm in height, and 26mm in depth, it fits seamlessly into various setups. The device offers a sensing distance from 10cm up to 7m and includes two digital outputs (24Vdc; 500mA; sourcing; redundant OSSD solid-state outputs) and one digital output (24Vdc; 250mA; PNP transistor) for FAULT indication. Additionally, it features one digital input (10Vdc-30Vdc; 30mA) for EDM and one digital input (10Vdc-30Vdc) for RESET functionality. The response time is 19.5ms, and it is designed to provide a degree of protection of IP65, suitable for diverse industrial environments.
