SLSCP30-1350Q88 Banner Safety Light Curtains
Part#:SLSCP30-1350Q88
Alt. Part#:72451
Manufacturer:Banner
Category:Safety Light Curtains
Product Lifecycle:Active
Product description
EZ-SCREEN Cascade Pair; Resolution: 30 mm; Range: 18 m (60 ft); Defined Area: 1350 mm (53.1 in); Housing Length: 1420 mm (55.9 in); Connection: 8-pin M12 Connectors; Emitter: No test Input
Product Details
- Weight 8872.25952 g
- Country Of Origin MX
- Effective Aperture Angle Type 4 Per IEC 61496-2
- Operating Temperature 0 to +55 deg. C; RH 95%
- Scan Code Selectable
- Housing Material Aluminum; Zinc; Acrylic
- Test Input Yes
- Defined Area Height (mm) 1350
- PL Rating Ple
- Shock 10g at 16ms (6000 cycles)
- Trip/Latch Output Selectable
- Feature: Cascade Yes
- low-profile No
- IP Rating IP65
- Resolution (mm) 30
- System Type Emitter/Receiver Pair
- Safety Level Type 4
- Recovery Time 25-152 / 81-495
- Short Protection Yes
- Supply Current 375 mA max.
- Connector Type M12
- Dimensions WxD (mm) 36 x 45.2
- Fixed Blanking Yes
- Reduced Resolution Yes
- Electrical Safety Class III
- Operating Distance (m) 0.1 - 18
- Response Time 25
- Auxiliary Output Yes
- Feature: ESD Safe No
- SIL Rating SIL3; CL3
- OSSD Rating 24 V dc at 0.5 A each
- Number of Pins (Receiver/Emitter) 8
- Feature: End-to-End Sensing No
- External Monitoring Device 1 or 2 Channel
- Housing Finish Yellow Polyester
- Fault Output No
- Feature: Integral Muting No
- Overall Length (mm) 1420
- Primary Housing Material Aluminum
- Operating Voltage 24 V dc +/- 15%
- Vibration 10-55 Hz at 0.35 mm
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of SLSCP30-1350Q88 on Powermatic Associates is $4,530.00. Order now.
About the product

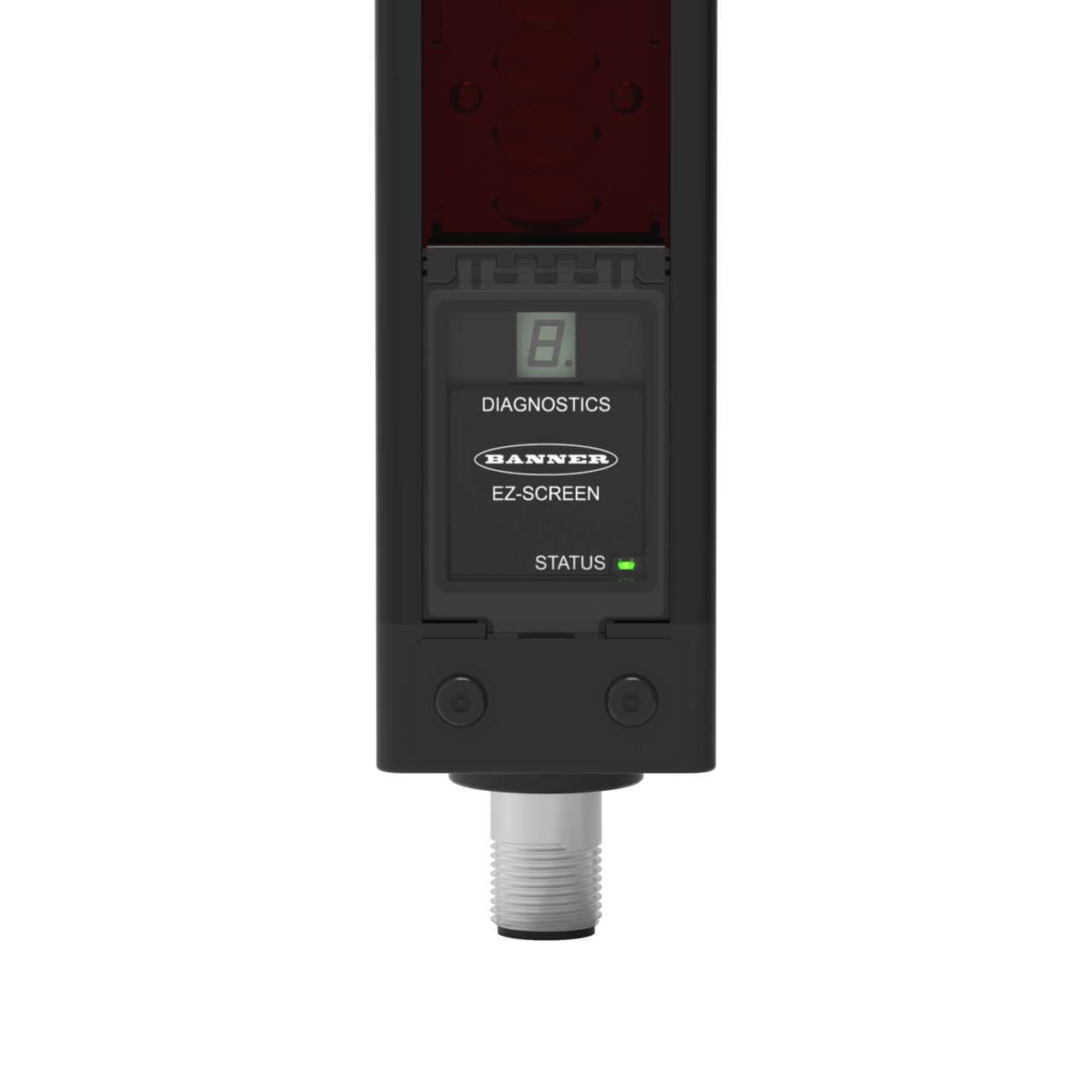

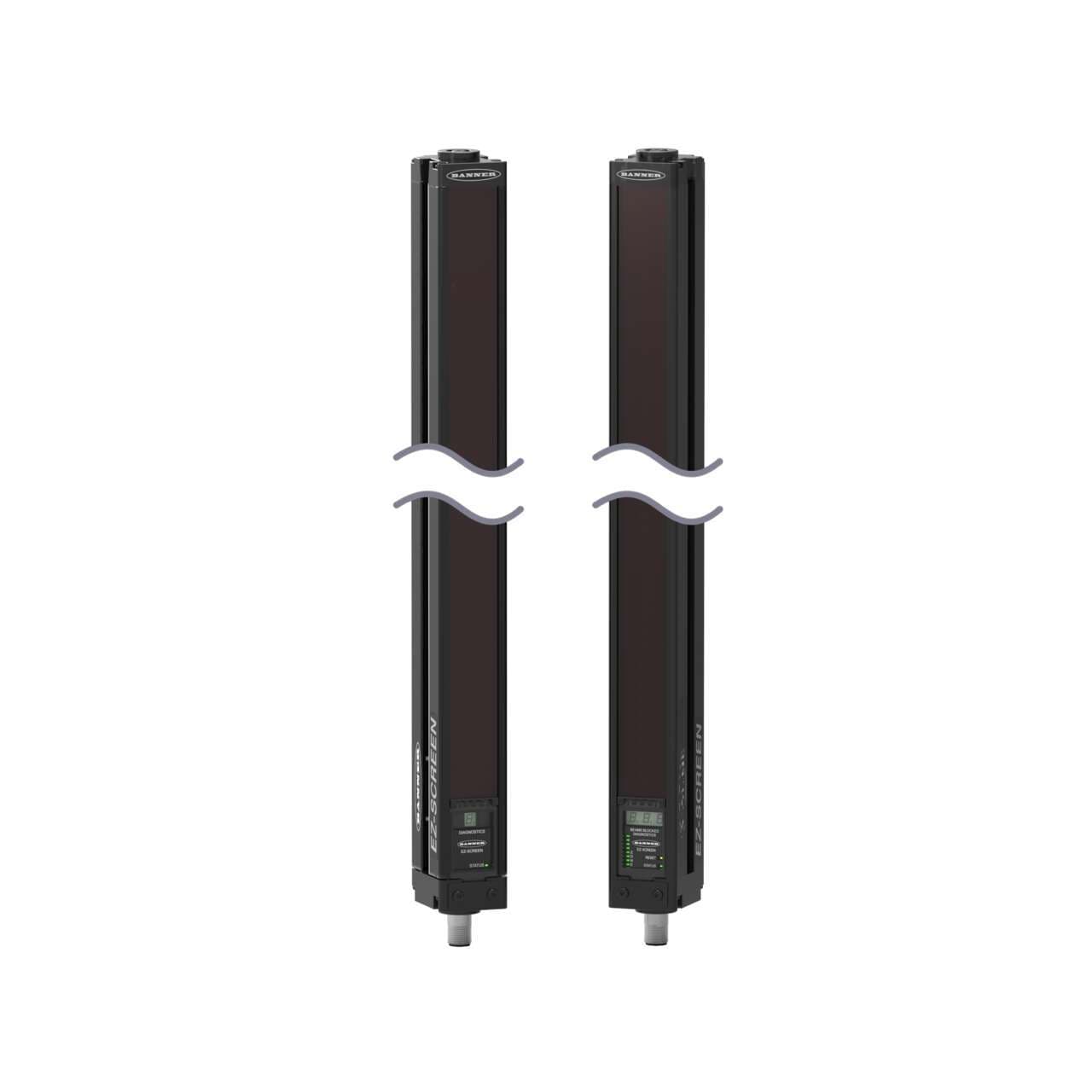

Banner Engineering SLSCP30-1350Q88 is a safety light curtain from the SLS series, designed to be cascadable. This part features a pair of emitter and receiver with an aluminium housing, acrylic lens, and die-cast zinc end caps. It comes pre-equipped with an 8-pin Euro-style M12 connector for connectivity. The protective height of this safety light curtain is 1350mm, and it has a yellow housing. It operates on a 24Vdc supply voltage and can function within an ambient air temperature range of 0 to +55°C. The SLSCP30-1350Q88 offers an IP65 degree of protection, with dimensions including a net width of 36mm, a net height of 1420mm, and a net depth of 46mm. The distance between beams is 30mm, providing a resolution suitable for hand detection. It features two digital outputs (24Vdc; 500mA; sourcing; redundant OSSD solid-state outputs), one digital output (24Vdc; sourcing/PNP transistor; 75mA) for auxiliary purposes, one digital input (10Vdc-30Vdc) for EDM, and one digital input (10Vdc-30Vdc) for reset functions. The sensing distance ranges from 10cm to 18m, with an infrared light color at a wavelength of 850 nm. The response time of this safety light curtain is 25ms.
