SLSCP30-1950P88 Banner Safety Light Curtains
Part#:SLSCP30-1950P88
Alt. Part#:83825
Manufacturer:Banner
Category:Safety Light Curtains
Product Lifecycle:Active
Product description
EZ-SCREEN Cascade Pair; Resolution: 30 mm; Range: 18 m (60 ft); Defined Area: 1950 mm (76.8 in); Housing Length: 2018 mm (79.4 in); Connection: 8-pin M12 Pigtail Connectors; Emitter: No test Input
Product Details
- Weight 10795.4896 g
- Country Of Origin MX
- Effective Aperture Angle Type 4 Per IEC 61496-2
- Operating Distance (m) 0.1 - 18
- Resolution (mm) 30
- Housing Material Aluminum; Zinc; Acrylic
- Test Input Yes
- Primary Housing Material Aluminum
- Operating Voltage 24 V dc +/- 15%
- Fault Output No
- Shock 10g at 16ms (6000 cycles)
- low-profile No
- Operating Temperature 0 to +55 deg. C; RH 95%
- Auxiliary Output Yes
- Scan Code Selectable
- Feature: Integral Muting No
- Connector Type M12 Pigtail (Yellow)
- Housing Finish Yellow Polyester
- Reduced Resolution Yes
- Supply Current 375 mA max.
- Feature: End-to-End Sensing No
- External Monitoring Device 1 or 2 Channel
- Recovery Time 25-152 / 81-495
- Short Protection Yes
- Vibration 10-55 Hz at 0.35 mm
- Overall Length (mm) 2018
- IP Rating IP65
- Response Time 34
- OSSD Rating 24 V dc at 0.5 A each
- Trip/Latch Output Selectable
- Dimensions WxD (mm) 36 x 45.2
- PL Rating Ple
- System Type Emitter/Receiver Pair
- Feature: ESD Safe No
- Safety Level Type 4
- Fixed Blanking Yes
- SIL Rating SIL3; CL3
- Feature: Cascade Yes
- Defined Area Height (mm) 1950
- Number of Pins (Receiver/Emitter) 8
- Electrical Safety Class III
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of SLSCP30-1950P88 on Powermatic Associates is $6,233.00. Order now.
About the product

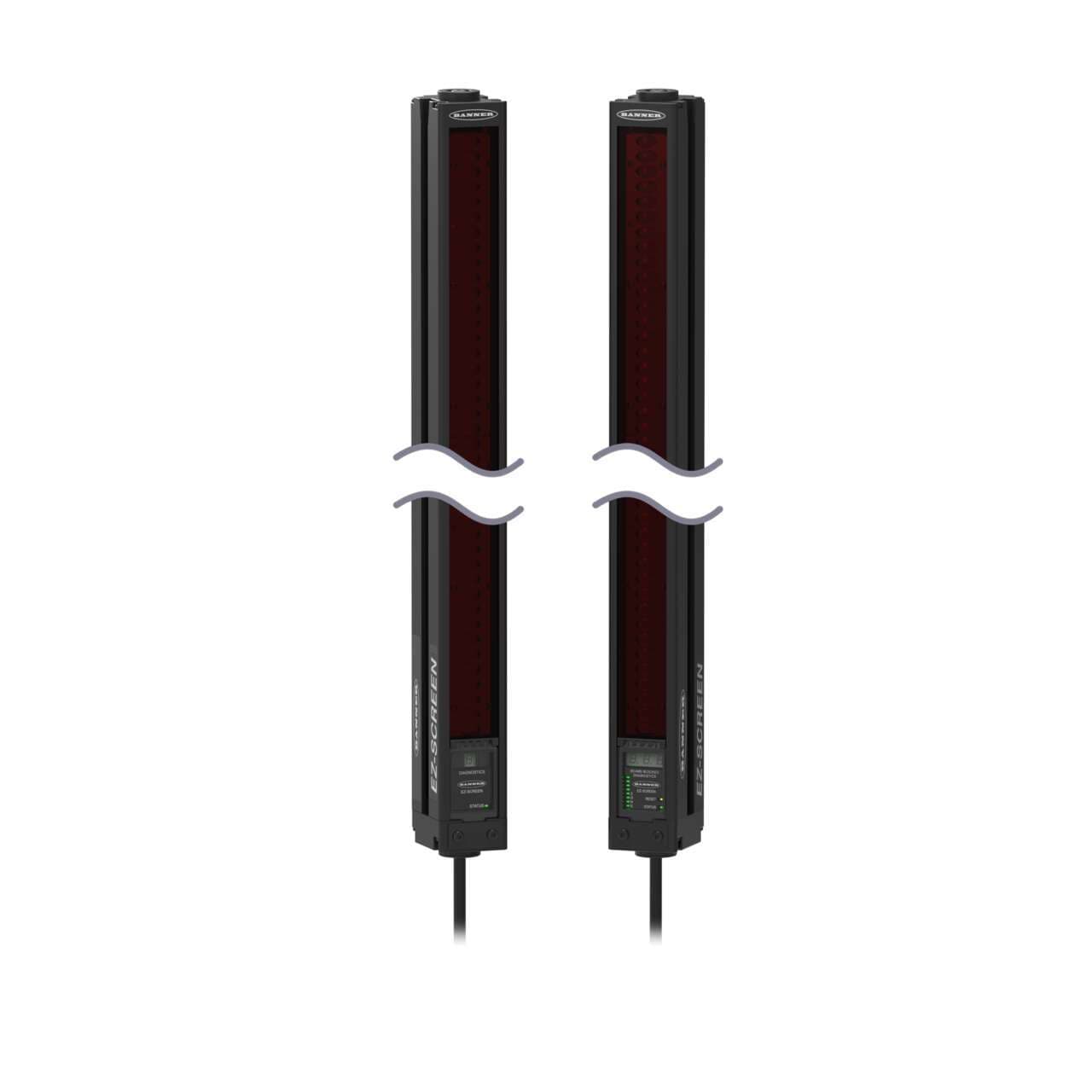

Banner Engineering SLSCP30-1950P88 is a safety light curtain from the SLS series, designed with a cascadable feature. This part consists of an emitter and receiver pair housed in aluminum with acrylic lens and die-cast zinc end caps. It is pre-wired with a 300mm pigtail that terminates with an 8-pin Euro-style M12 connector. The protective height is 1950mm, and it has a yellow housing. It operates on a 24Vdc supply voltage and can function within an ambient air temperature range of 0 to +55°C. The SLSCP30-1950P88 offers an IP65 degree of protection and has dimensions of 36mm in width, 2018mm in height, and 46mm in depth. The light curtain features a 30mm beam spacing/pitch and includes two digital outputs (24Vdc; 500mA; sourcing; redundant OSSD solid-state outputs), one digital output (24Vdc; sourcing/PNP transistor; 75mA) for auxiliary purposes, and two digital inputs (10Vdc-30Vdc) for EDM and RESET functions. Its sensing distance ranges from 10cm to 18m, with an infrared light color at a wavelength of 850 nm. The resolution is set at 30mm for hand detection, and it has a response time of 34ms.
