SLSCP30-1950Q88 Banner Safety Light Curtains
Part#:SLSCP30-1950Q88
Alt. Part#:83826
Manufacturer:Banner
Category:Safety Light Curtains
Product Lifecycle:Active
Product description
EZ-SCREEN Cascade Pair; Resolution: 30 mm; Range: 18 m (20 ft); Defined Area: 1950 mm (76.8 in); Housing Length: 2018 mm (79.4 in); Connection: 8-pin M12 Connectors; Emitter: No test Input
Product Details
- Weight 10795.4896 g
- Country Of Origin MX
- Feature: Integral Muting No
- Feature: ESD Safe No
- Vibration 10-55 Hz at 0.35 mm
- Feature: End-to-End Sensing No
- Supply Current 375 mA max.
- Test Input Yes
- Feature: Cascade Yes
- Trip/Latch Output Selectable
- OSSD Rating 24 V dc at 0.5 A each
- Housing Material Aluminum; Zinc; Acrylic
- Fault Output No
- Shock 10g at 16ms (6000 cycles)
- Auxiliary Output Yes
- System Type Emitter/Receiver Pair
- Short Protection Yes
- Scan Code Selectable
- Electrical Safety Class III
- SIL Rating SIL3; CL3
- Response Time 34
- Resolution (mm) 30
- Reduced Resolution Yes
- PL Rating Ple
- IP Rating IP65
- Operating Temperature 0 to +55 deg. C; RH 95%
- Number of Pins (Receiver/Emitter) 8
- Fixed Blanking Yes
- Operating Voltage 24 V dc +/- 15%
- Recovery Time 25-152 / 81-495
- Operating Distance (m) 0.1 - 18
- Housing Finish Yellow Polyester
- Dimensions WxD (mm) 36 x 45.2
- Primary Housing Material Aluminum
- Overall Length (mm) 2018
- Connector Type M12
- External Monitoring Device 1 or 2 Channel
- Defined Area Height (mm) 1950
- Effective Aperture Angle Type 4 Per IEC 61496-2
- Safety Level Type 4
- low-profile No
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of SLSCP30-1950Q88 on Powermatic Associates is $6,193.00. Order now.
About the product

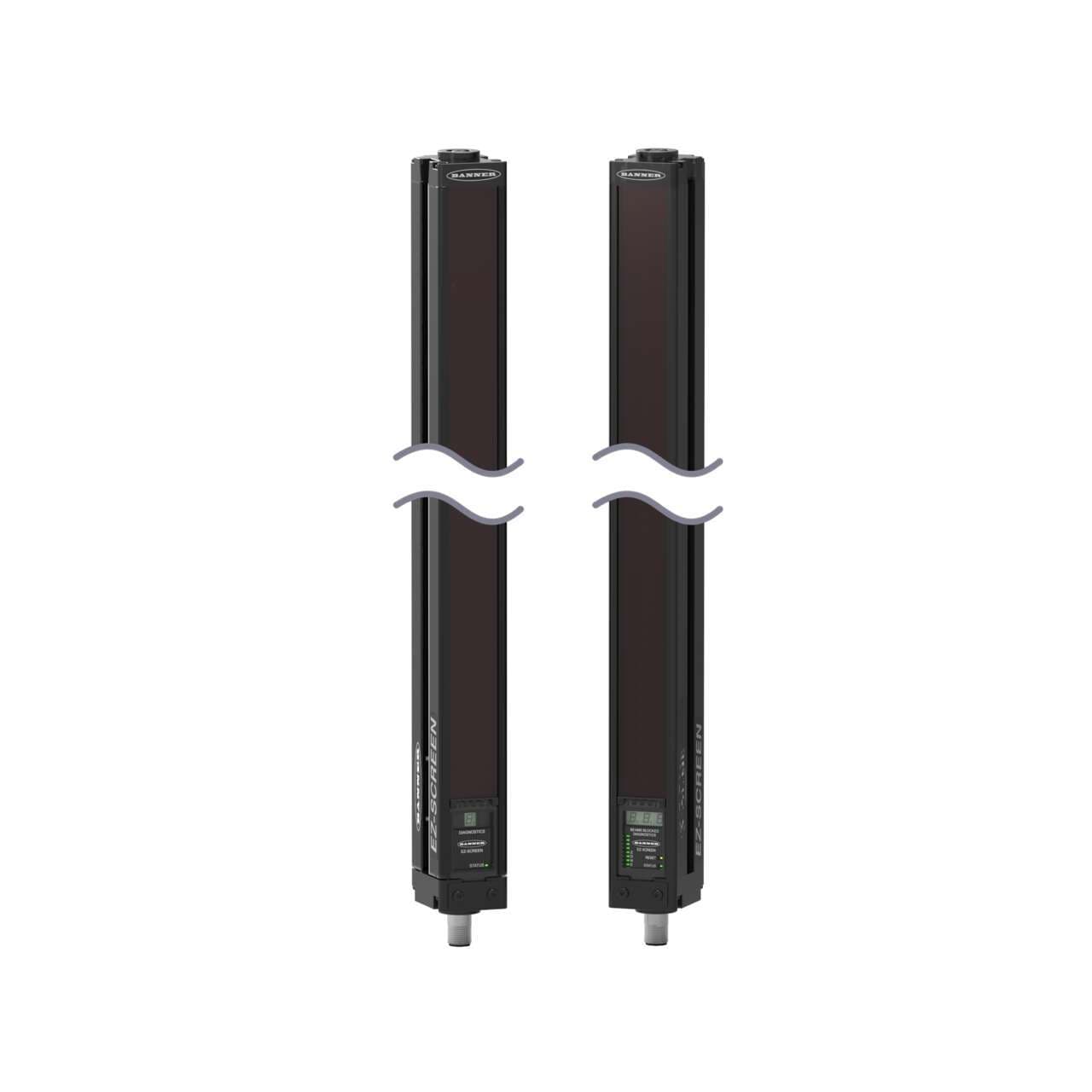

Banner Engineering SLSCP30-1950Q88 is a safety light curtain from the SLS series, designed with a cascadable feature. This part consists of an emitter and receiver pair housed in aluminum with acrylic lens and die-cast zinc end caps. It is pre-equipped with an 8-pin Euro-style M12 connector for connectivity. The SLSCP30-1950Q88 offers a protective height of 1950mm and comes in a yellow housing. It operates on a 24Vdc supply voltage and can function within an ambient air temperature range of 0 to +55°C. This safety light curtain is rated with an IP65 degree of protection and has dimensions of 36mm in width, 2018mm in height, and 46mm in depth. It features a 30mm beam spacing/pitch for hand detection, a sensing distance ranging from 10cm to 18m, and emits infrared light with a wavelength of 850 nm. The device includes 2 x digital outputs (24Vdc; 500mA; sourcing; redundant OSSD solid-state outputs), 1 x digital output (24Vdc; sourcing/PNP transistor; 75mA) for auxiliary output, 1 x digital input (10Vdc-30Vdc) for EDM input, and 1 x digital input (10Vdc-30Vdc) for RESET input. Its response time is 34ms / 0.034 s.
