SLSE14-150Q8 Banner Safety Light Curtains

SLSE14-150Q8 on Powermatic Associates
Banner
  • SLSE14-150Q8
  • SLSE14-150Q8

Part#:SLSE14-150Q8

Alt. Part#:72359

Manufacturer:Banner

Category:Safety Light Curtains

Product Lifecycle:Active

Product description

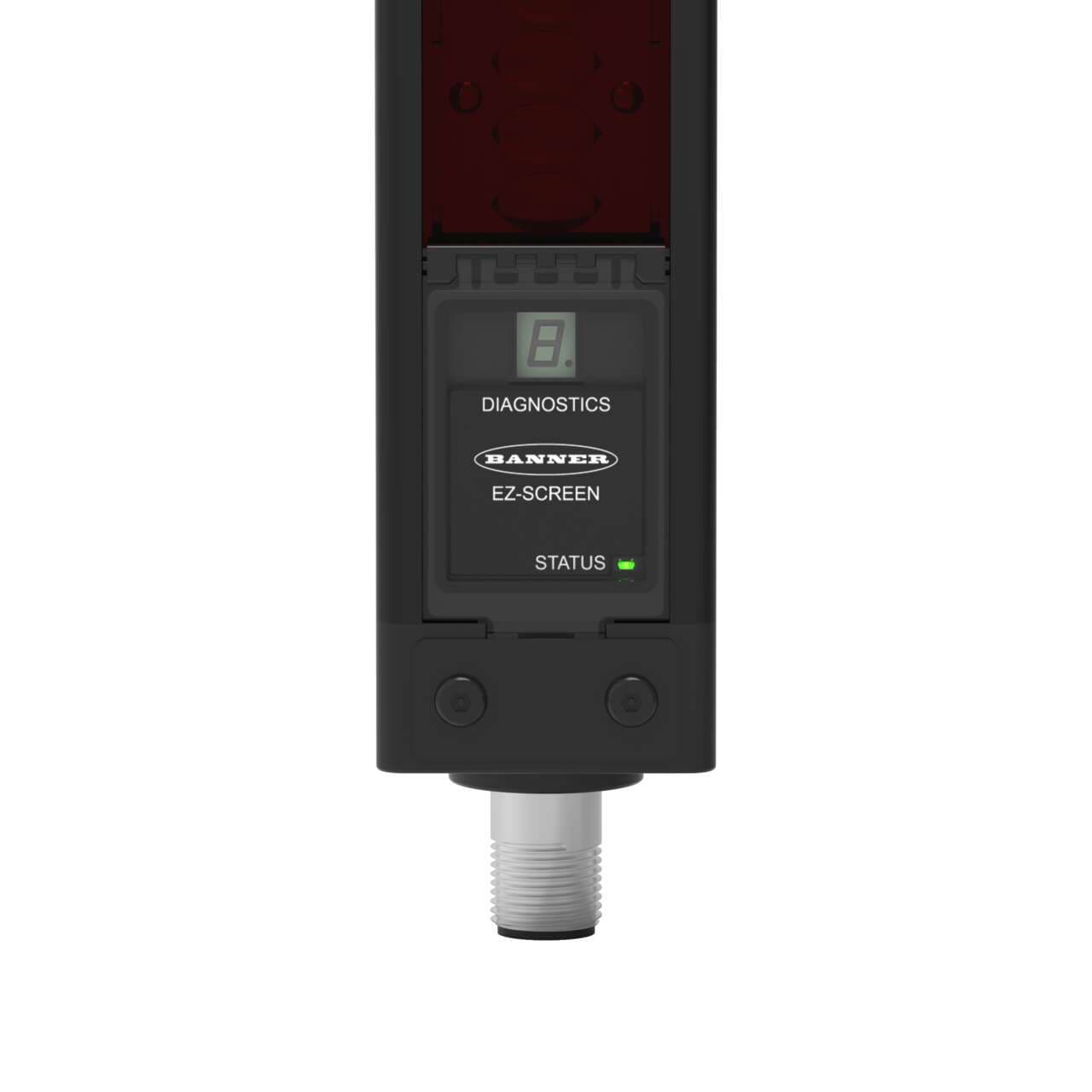

EZ-SCREEN Emitter; Resolution: 14 mm; Range: 6 m (20 ft); Defined Area: 150 mm (5.9 in); Housing Length: 262 mm (10.3 in); Connection: 8-pin M12 Connector; No test input

Product Details

  • Weight
    1492.31768 g
  • Country Of Origin
    MX
  • Feature: Integral Muting
    No
  • Trip/Latch Output
    N/A
  • Feature: ESD Safe
    No
  • Feature: End-to-End Sensing
    No
  • Test Input
    No
  • OSSD Rating
    N/A
  • Supply Current
    100 mA max.
  • Housing Material
    Aluminum; Zinc; Acrylic
  • Fault Output
    No
  • Auxiliary Output
    No
  • Electrical Safety Class
    III
  • Short Protection
    Yes
  • SIL Rating
    SIL3; CL3
  • Vibration
    10-55 Hz at 0.35 mm
  • System Type
    Emitter
  • Response Time
    11
  • Scan Code
    Selectable
  • Reduced Resolution
    No
  • Resolution (mm)
    14
  • Shock
    10g at 16ms (6000 cycles)
  • Recovery Time
    33-220 / 109-800
  • Operating Temperature
    0 to +55 deg. C; RH 95%
  • PL Rating
    Ple
  • Operating Voltage
    24 V dc +/- 15%
  • Operating Distance (m)
    0.1 - 6
  • Number of Pins (Receiver/Emitter)
    8
  • Fixed Blanking
    No
  • Housing Finish
    Yellow Polyester
  • IP Rating
    IP65
  • Defined Area Height (mm)
    150
  • low-profile
    No
  • Dimensions WxD (mm)
    36 x 45.2
  • External Monitoring Device
    No
  • Connector Type
    M12
  • Primary Housing Material
    Aluminum
  • Overall Length (mm)
    262
  • Effective Aperture Angle
    Type 4 Per IEC 61496-2
  • Safety Level
    Type 4

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of SLSE14-150Q8 on Powermatic Associates is $596.00. Order now.

About the product

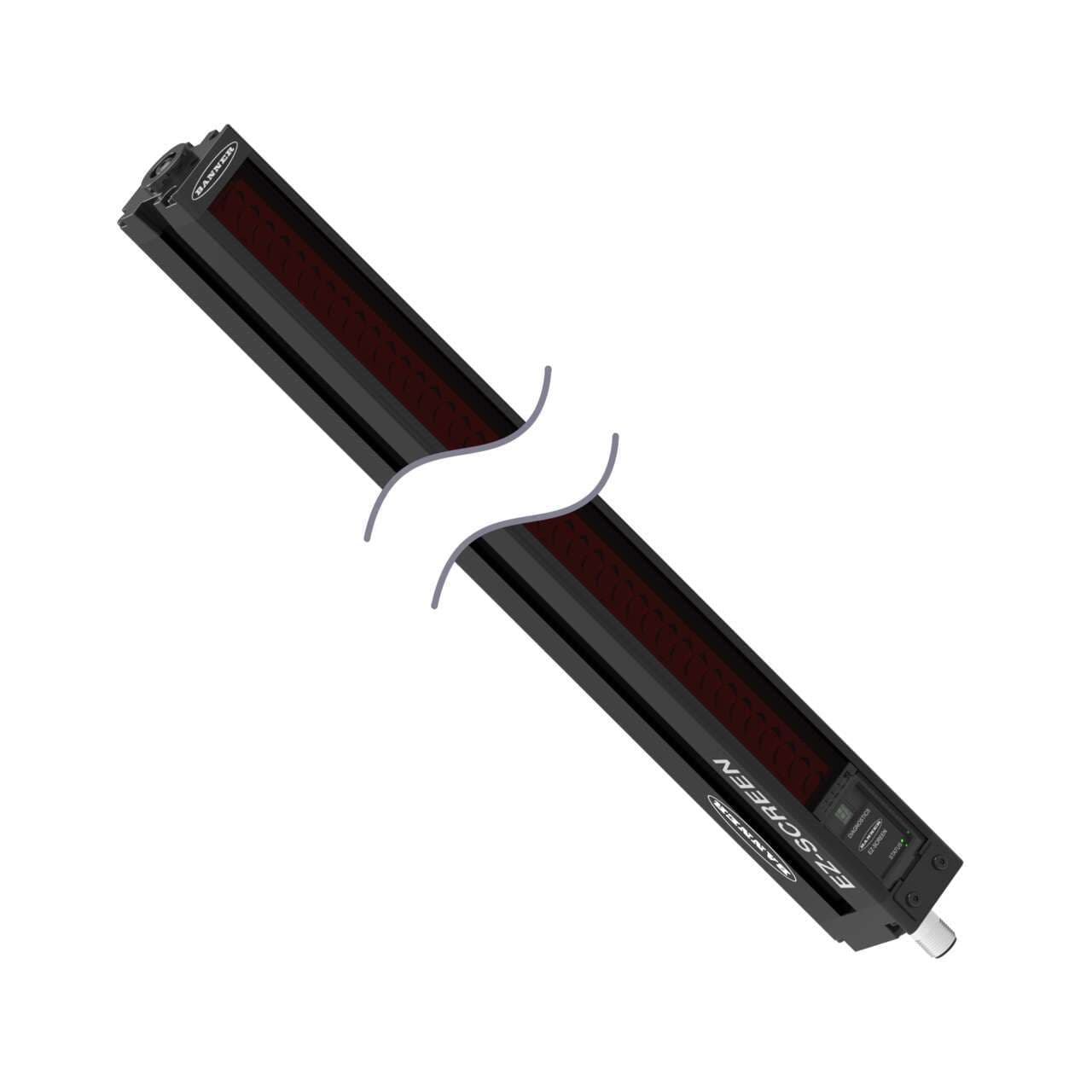

Banner Engineering SLSE14-150Q8 is a safety light curtain designed for protective applications, part of the 14/30 series. This unit, functioning as an emitter alone, features an aluminium housing with an acrylic lens and die-cast zinc end caps. It is pre-equipped with an 8-pin Euro-style M12 connector for connectivity. The device offers a protective height of 150mm and comes in a yellow housing. It operates on a 24Vdc supply voltage and can function within an ambient air temperature range of 0 to +55°C. With an IP65 degree of protection, it is safeguarded against dust and low-pressure water jets. The SLSE14-150Q8 has a net width of 36mm and a depth of 46mm. It features a 14mm beam spacing/pitch and provides two digital outputs (24Vdc; 500mA; sourcing; redundant OSSD solid-state outputs) for enhanced safety measures. The sensing distance ranges from 10cm to 6m, utilizing infrared (IR) light with a wavelength of 850 nm. It has a response time of 11ms / 0.011 s and is designed for finger detection with a resolution of 14mm.
