SLSE14-300Q8 Banner Safety Light Curtains
Part#:SLSE14-300Q8
Alt. Part#:72360
Manufacturer:Banner
Category:Safety Light Curtains
Product Lifecycle:Active
Product description
EZ-SCREEN Emitter; Resolution: 14 mm; Range: 6 m (20 ft); Defined Area: 300 mm (11.8 in); Housing Length: 372 mm (14.6 in); Connection: 8-pin M12 Connector; No test input
Product Details
- Weight 1560.35648 g
- Country Of Origin MX
- Effective Aperture Angle Type 4 Per IEC 61496-2
- Number of Pins (Receiver/Emitter) 8
- Defined Area Height (mm) 300
- PL Rating Ple
- Scan Code Selectable
- Trip/Latch Output N/A
- low-profile No
- Operating Distance (m) 0.1 - 6
- SIL Rating SIL3; CL3
- Housing Material Aluminum; Zinc; Acrylic
- Connector Type M12
- Housing Finish Yellow Polyester
- Reduced Resolution No
- Fault Output No
- Safety Level Type 4
- IP Rating IP65
- Electrical Safety Class III
- OSSD Rating N/A
- Primary Housing Material Aluminum
- Overall Length (mm) 372
- Recovery Time 33-220 / 109-800
- System Type Emitter
- Test Input No
- External Monitoring Device No
- Operating Temperature 0 to +55 deg. C; RH 95%
- Short Protection Yes
- Feature: End-to-End Sensing No
- Dimensions WxD (mm) 36 x 45.2
- Operating Voltage 24 V dc +/- 15%
- Shock 10g at 16ms (6000 cycles)
- Fixed Blanking No
- Resolution (mm) 14
- Vibration 10-55 Hz at 0.35 mm
- Feature: ESD Safe No
- Response Time 15
- Auxiliary Output No
- Supply Current 100 mA max.
- Feature: Integral Muting No
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of SLSE14-300Q8 on Powermatic Associates is $811.00. Order now.
About the product

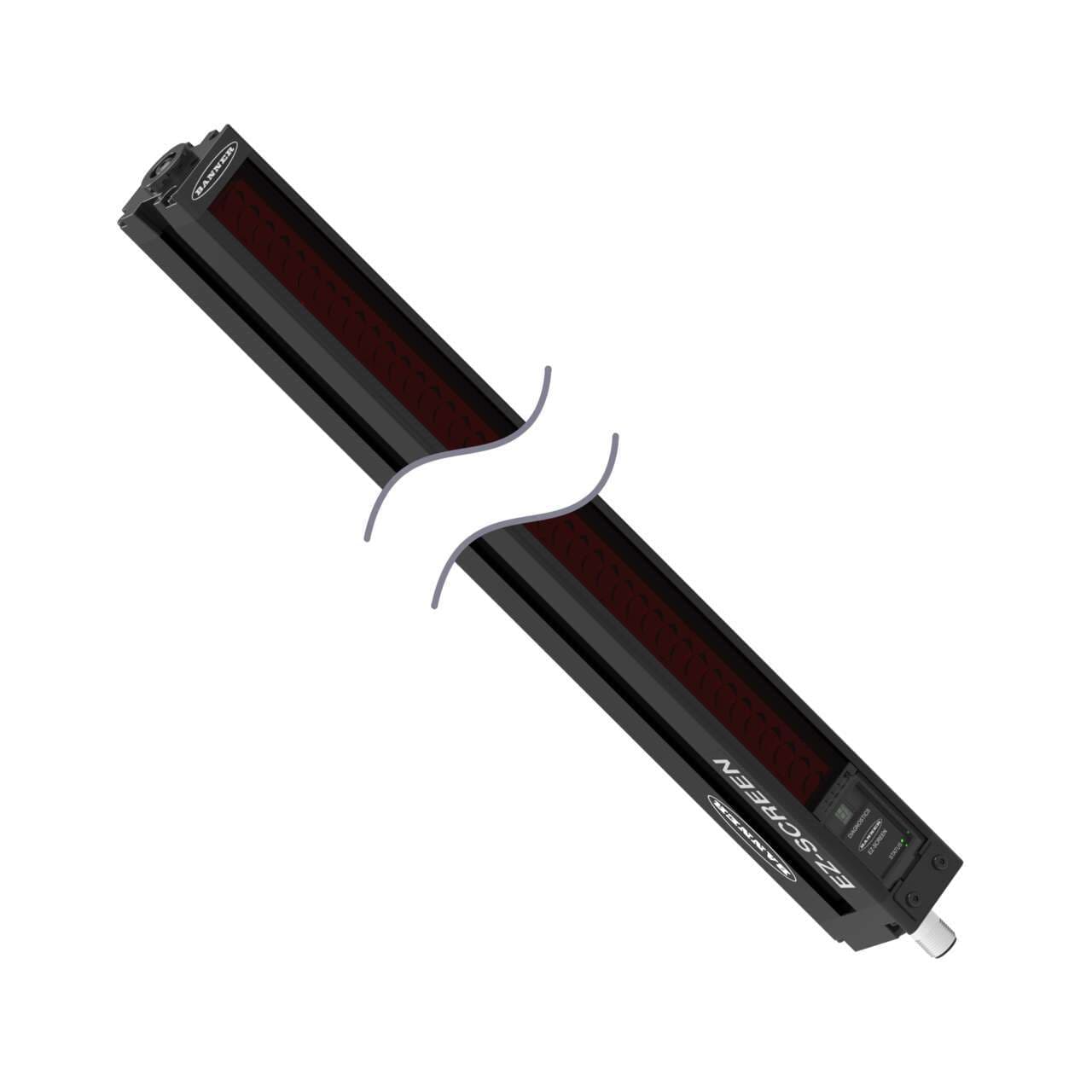

Banner Engineering SLSE14-300Q8 is a safety light curtain designed for protective applications, part of the 14/30 series. This unit, functioning as an emitter alone, is constructed with an aluminium housing, acrylic lens, and die-cast zinc end caps. It features a pre-equipped 8-pin Euro-style M12 connector for connectivity. The device offers a protective height of 300mm and comes in a yellow housing. It operates on a 24Vdc supply voltage and can function within an ambient air temperature range of 0 to +55°C. With an IP65 degree of protection, it is safeguarded against dust ingress and low-pressure water jets from any direction. The SLSE14-300Q8 has a net width of 36mm and a net depth of 46mm. It is designed with a 14mm beam spacing/pitch, providing a resolution suitable for finger detection. The safety light curtain features 2 x digital outputs (24Vdc; 500mA; sourcing; redundant OSSD solid-state outputs), a sensing distance ranging from 10cm to 6m, and operates with an infrared light color at a wavelength of 850 nm. Its response time is 15ms / 0.015 s, ensuring timely activation of safety measures.
