SLSE30-150AP8B Banner Safety Light Curtains
Part#:SLSE30-150AP8B
Alt. Part#:14019
Manufacturer:Banner
Category:Safety Light Curtains
Product Lifecycle:Active
Product description
EZ-SCREEN Emitter; Resolution: 30 mm; Range: 18 m (60 ft); Defined Area: 150 mm (5.9 in); Housing Length: 262 mm (10.3 in); Connection: 8-pin M12 Pigtail Connector; No test input
Product Details
- Weight 1496.8536 g
- Country Of Origin US
- Connector Type M12 Pigtail (Black)
- Operating Temperature 0 to +55 deg. C; RH 95%
- Shock 10g at 16ms (6000 cycles)
- Primary Housing Material Aluminum
- Operating Voltage 24 V dc +/- 15%
- Scan Code Selectable
- OSSD Rating N/A
- Defined Area Height (mm) 150
- IP Rating IP65
- SIL Rating SIL3; CL3
- Overall Length (mm) 262
- Housing Finish Clear Anodized
- Response Time 9
- Fault Output No
- Safety Level Type 4
- Recovery Time 25-152 / 81-495
- Vibration 10-55 Hz at 0.35 mm
- low-profile No
- Fixed Blanking No
- Reduced Resolution No
- Trip/Latch Output N/A
- Dimensions WxD (mm) 36 x 45.2
- Number of Pins (Receiver/Emitter) 8
- Auxiliary Output No
- Electrical Safety Class III
- External Monitoring Device No
- Operating Distance (m) 0.1 - 18
- Resolution (mm) 30
- System Type Emitter
- Effective Aperture Angle Type 4 Per IEC 61496-2
- PL Rating Ple
- Short Protection Yes
- Feature: ESD Safe No
- Feature: Integral Muting No
- Test Input No
- Feature: End-to-End Sensing No
- Housing Material Aluminum; Zinc; Acrylic
- Supply Current 100 mA max.
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of SLSE30-150AP8B on Powermatic Associates is $473.00. Order now.
About the product

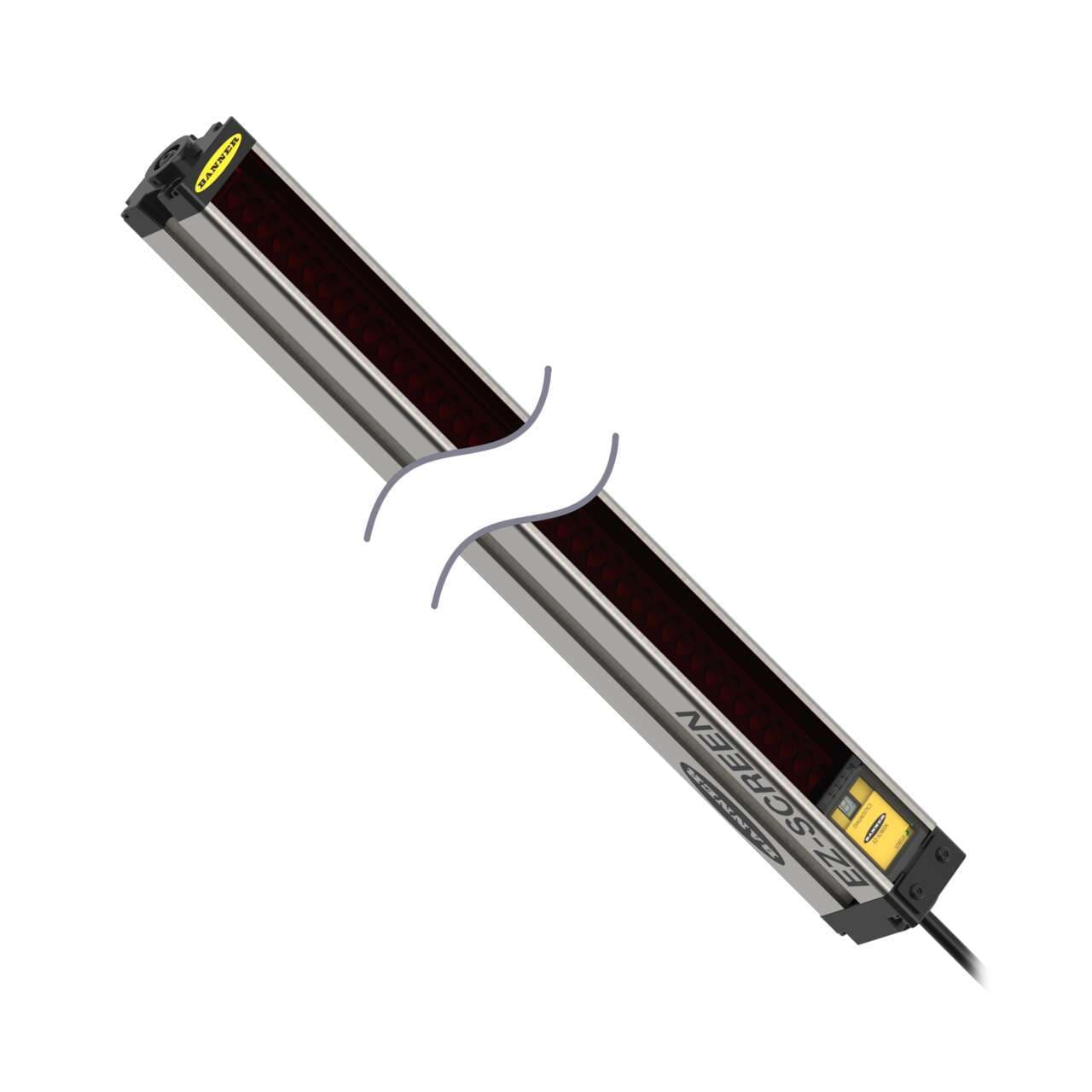

Banner Engineering SLSE30-150AP8B is a safety light curtain designed for hand detection with a protective height of 150mm and features a clear brushed Aluminium housing with an Acrylic lens and Die-cast Zinc end caps. It is pre-wired with a 300mm pigtail that terminates with an 8-pin Euro-style M12 connector. This part operates on a 24Vdc supply voltage and can function within an ambient air temperature range of 0 to +55°C. It offers a degree of protection rated at IP65 and has dimensions of 36mm in width, 262mm in height, and 46mm in depth. The SLSE30-150AP8B has a 30mm beam spacing/pitch, two digital outputs (24Vdc; 500mA; sourcing; redundant OSSD solid-state outputs), and a sensing distance ranging from 10cm to 18m. It emits infrared (IR) light with a wavelength of 850 nm and has a response time of 9ms / 0.009 s. The resolution of this safety light curtain is set for 30mm, suitable for hand detection.
