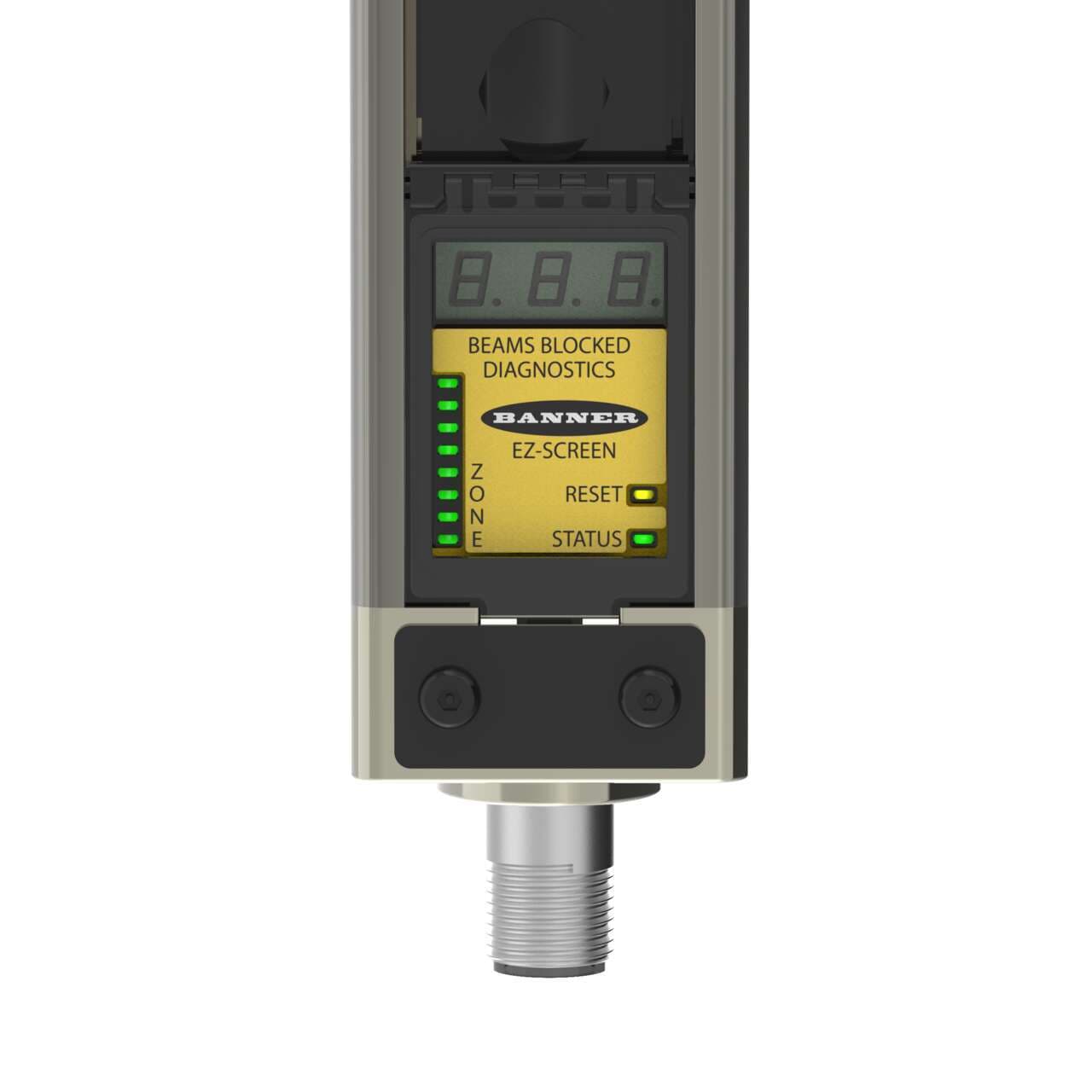

SLSR14-750NQ8 Banner Safety Light Curtains
Part#:SLSR14-750NQ8
Alt. Part#:73630
Manufacturer:Banner
Category:Safety Light Curtains
Product Lifecycle:Active
Product description
EZ-SCREEN Receiver; Resolution: 14 mm; Range: 6 m (20 ft); Defined Area: 750 mm (29.5 in); Housing Length: 821 mm (32.3 in); Connection: 8-pin M12 Connector
Product Details
- Weight 562.45408 g
- Country Of Origin MX
- Fixed Blanking Yes
- Primary Housing Material Aluminum
- Reduced Resolution Yes
- Auxiliary Output Yes
- Effective Aperture Angle Type 4 Per IEC 61496-2
- Response Time 27
- Fault Output No
- Supply Current 275 mA max.
- Connector Type M12
- Resolution (mm) 14
- System Type Receiver
- Test Input No
- low-profile No
- Number of Pins (Receiver/Emitter) 8
- Scan Code Selectable
- Housing Material Aluminum; Zinc; Acrylic
- Housing Finish Nickel Plated
- IP Rating IP65
- SIL Rating SIL3; CL3
- Feature: End-to-End Sensing No
- External Monitoring Device 1 or 2 Channel
- Operating Voltage 24 V dc +/- 15%
- Shock 10g at 16ms (6000 cycles)
- Defined Area Height (mm) 750
- PL Rating Ple
- Electrical Safety Class III
- Feature: ESD Safe Yes
- Safety Level Type 4
- Operating Distance (m) 0.1 - 6
- Vibration 10-55 Hz at 0.35 mm
- Dimensions WxD (mm) 36 x 45.2
- Recovery Time 33-220 / 109-800
- Short Protection Yes
- Feature: Integral Muting No
- Overall Length (mm) 821
- Operating Temperature 0 to +55 deg. C; RH 95%
- Trip/Latch Output Selectable
- OSSD Rating 24 V dc at 0.5 A each
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of SLSR14-750NQ8 on Powermatic Associates is $2,057.00. Order now.
About the product

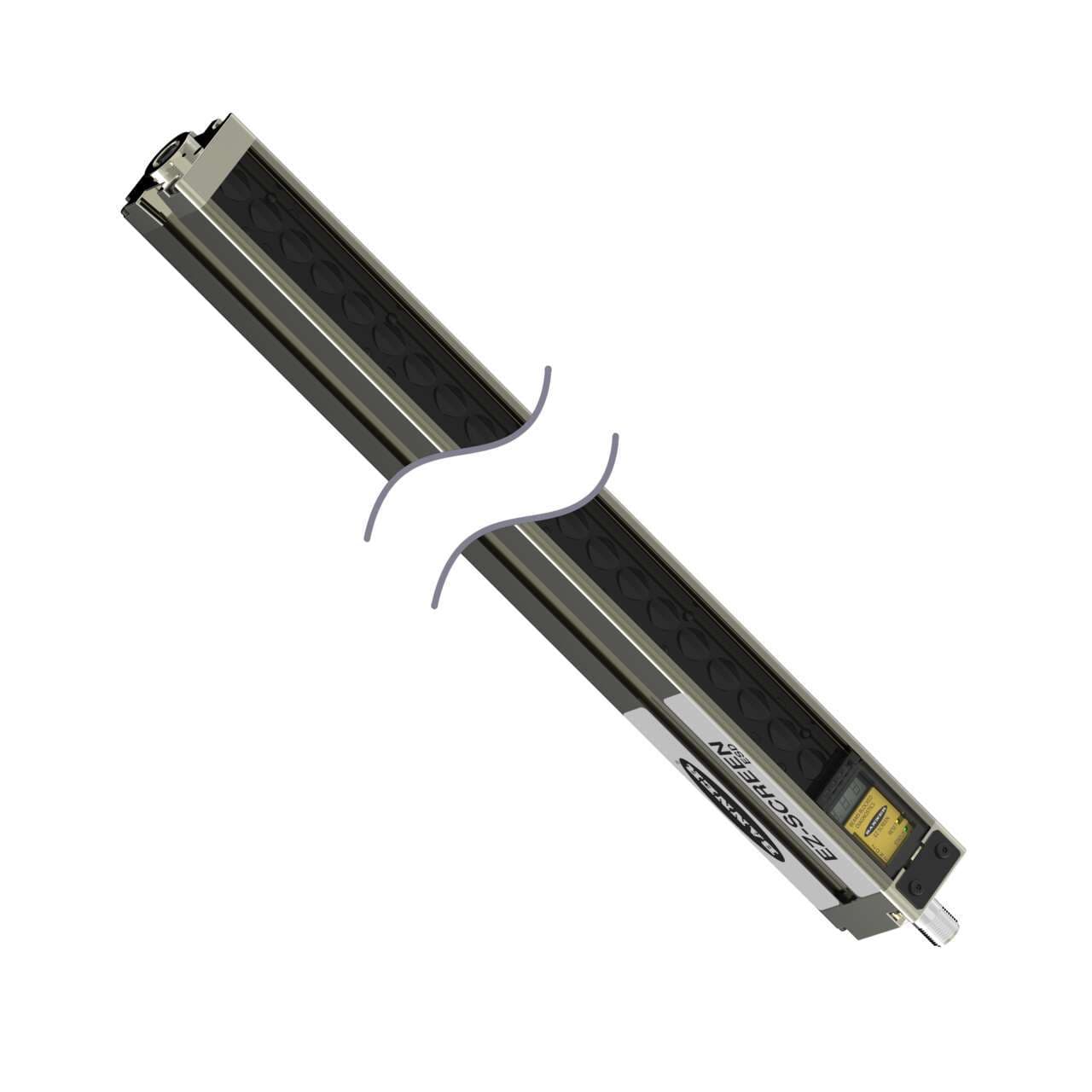

Banner Engineering SLSR14-750NQ8 is a safety light curtain designed for protective applications, part of the 14/30 series. This model, specifically a receiver unit, features an ESD-safe design with an aluminium housing, acrylic lens, and die-cast zinc end caps. It comes pre-equipped with an 8-pin Euro-style M12 connector for easy integration. The unit offers a protective height of 750mm and is housed in a yellow casing. It operates on a 24Vdc supply voltage and can function within an ambient air temperature range of 0 to +55°C. With an IP65 degree of protection, it is suitable for various industrial environments. The SLSR14-750NQ8 has a 14mm beam spacing/pitch, providing finger detection resolution. It includes two digital outputs (24Vdc; 500mA; sourcing; redundant OSSD solid-state outputs) and one additional digital output (24Vdc; sourcing/PNP transistor; 75mA) for auxiliary functions. The sensing distance ranges from 10cm to 6m. It also features one digital input for EDM (10Vdc-30Vdc) and one for RESET (10Vdc-30Vdc), with a response time of 27ms.
