SLSRBR14-450Q8 Banner Safety Light Curtains

SLSRBR14-450Q8 on Powermatic Associates
Banner
  • SLSRBR14-450Q8
  • SLSRBR14-450Q8

Part#:SLSRBR14-450Q8

Alt. Part#:76878

Manufacturer:Banner

Category:Safety Light Curtains

Product Lifecycle:Active

Product description

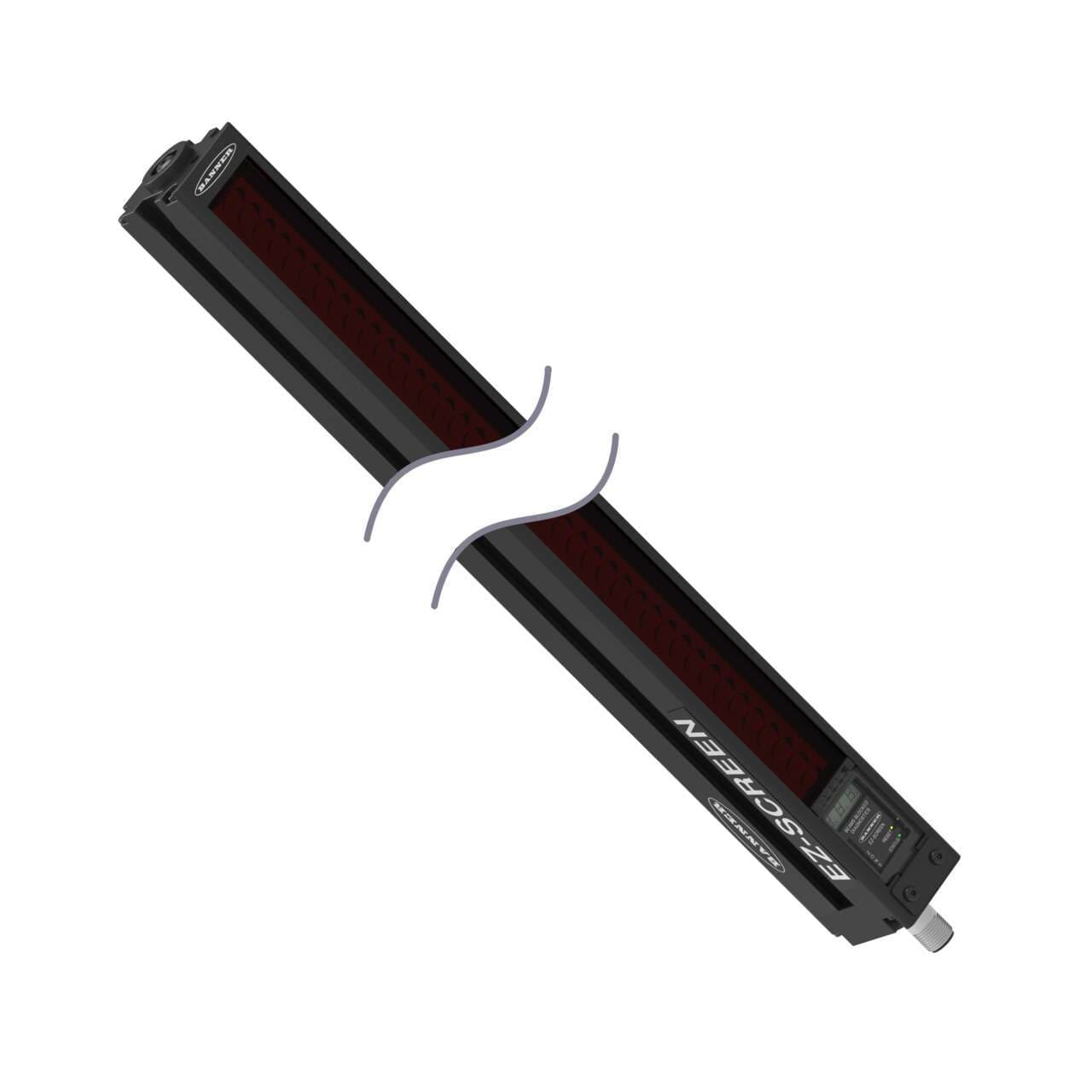

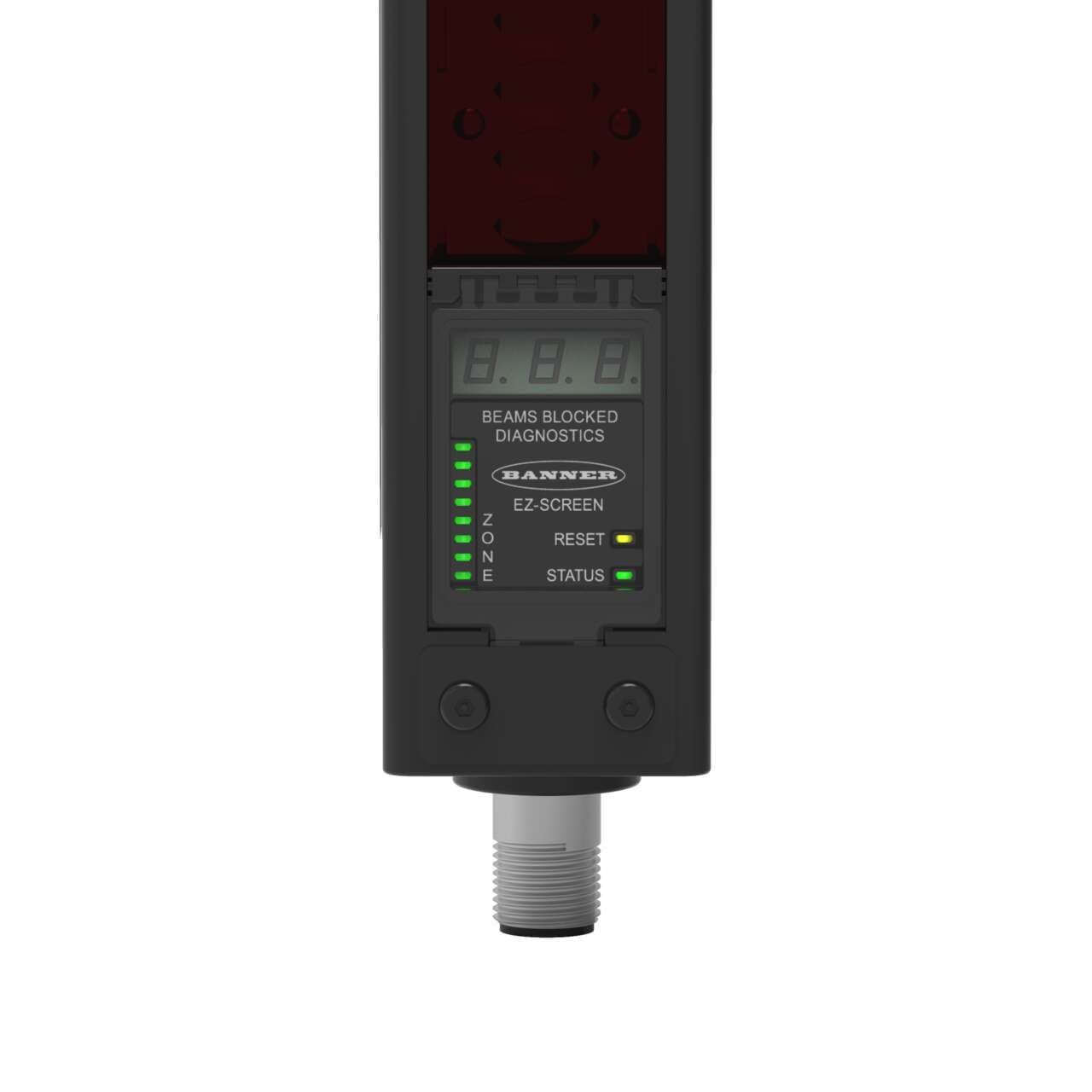

EZ-SCREEN Remote Blanking Receiver; Resolution: 14 mm; Range: 6 m (20 ft); Defined Area: 450 mm (17.7 in); Housing Length: 522 mm (20.6 in); Connection: 8-pin M12 Connector

Product Details

  • Weight
    625.95696 g
  • Country Of Origin
    MX
  • Test Input
    No
  • Feature: ESD Safe
    No
  • Supply Current
    275 mA max.
  • Feature: Integral Muting
    No
  • Trip/Latch Output
    Selectable
  • Feature: End-to-End Sensing
    No
  • Fault Output
    No
  • Auxiliary Output
    Yes
  • Housing Material
    Aluminum; Zinc; Acrylic
  • Short Protection
    Yes
  • System Type
    Receiver
  • Vibration
    10-55 Hz at 0.35 mm
  • Scan Code
    Selectable
  • Shock
    10g at 16ms (6000 cycles)
  • Response Time
    19
  • SIL Rating
    SIL3; CL3
  • Reduced Resolution
    No
  • Resolution (mm)
    14
  • Recovery Time
    33-220 / 109-800
  • Operating Temperature
    0 to +55 deg. C; RH 95%
  • OSSD Rating
    24 V dc at 0.5 A each
  • Electrical Safety Class
    III
  • PL Rating
    Ple
  • Operating Voltage
    24 V dc +/- 15%
  • Operating Distance (m)
    0.1 - 6
  • IP Rating
    IP65
  • Fixed Blanking
    Yes
  • Overall Length (mm)
    522
  • Number of Pins (Receiver/Emitter)
    8
  • Housing Finish
    Yellow Polyester
  • External Monitoring Device
    1 or 2 Channel
  • Defined Area Height (mm)
    450
  • low-profile
    No
  • Dimensions WxD (mm)
    36 x 45.2
  • Primary Housing Material
    Aluminum
  • Effective Aperture Angle
    Type 4 Per IEC 61496-2
  • Safety Level
    Type 4
  • Connector Type
    M12

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of SLSRBR14-450Q8 on Powermatic Associates is $1,470.00. Order now.

About the product

Banner Engineering SLSRBR14-450Q8 is a safety light curtain from the SLS series designed for finger detection with a resolution of 14mm. This receiver unit features an aluminium housing with an acrylic lens and die-cast zinc end caps, ensuring durability. It comes pre-equipped with an 8-pin Euro-style M12 connector for straightforward installation. The protective height of the device is 450mm, and it is housed in a yellow casing. It operates on a 24Vdc supply voltage and can function within an ambient air temperature range of 0 to +55°C. With an IP65 degree of protection, it is suitable for various industrial environments. The SLSRBR14-450Q8 offers a sensing distance range from 10cm to 6m and includes two digital outputs (24Vdc; 500mA; sourcing; redundant OSSD solid-state outputs) and one digital output (24Vdc; 75mA; sourcing/PNP transistor) for enhanced connectivity. Additionally, it features one digital input (10Vdc-30Vdc) for EDM and one for RESET functions. The response time of this safety light curtain is 19ms, ensuring timely detection and response to safety incidents.
