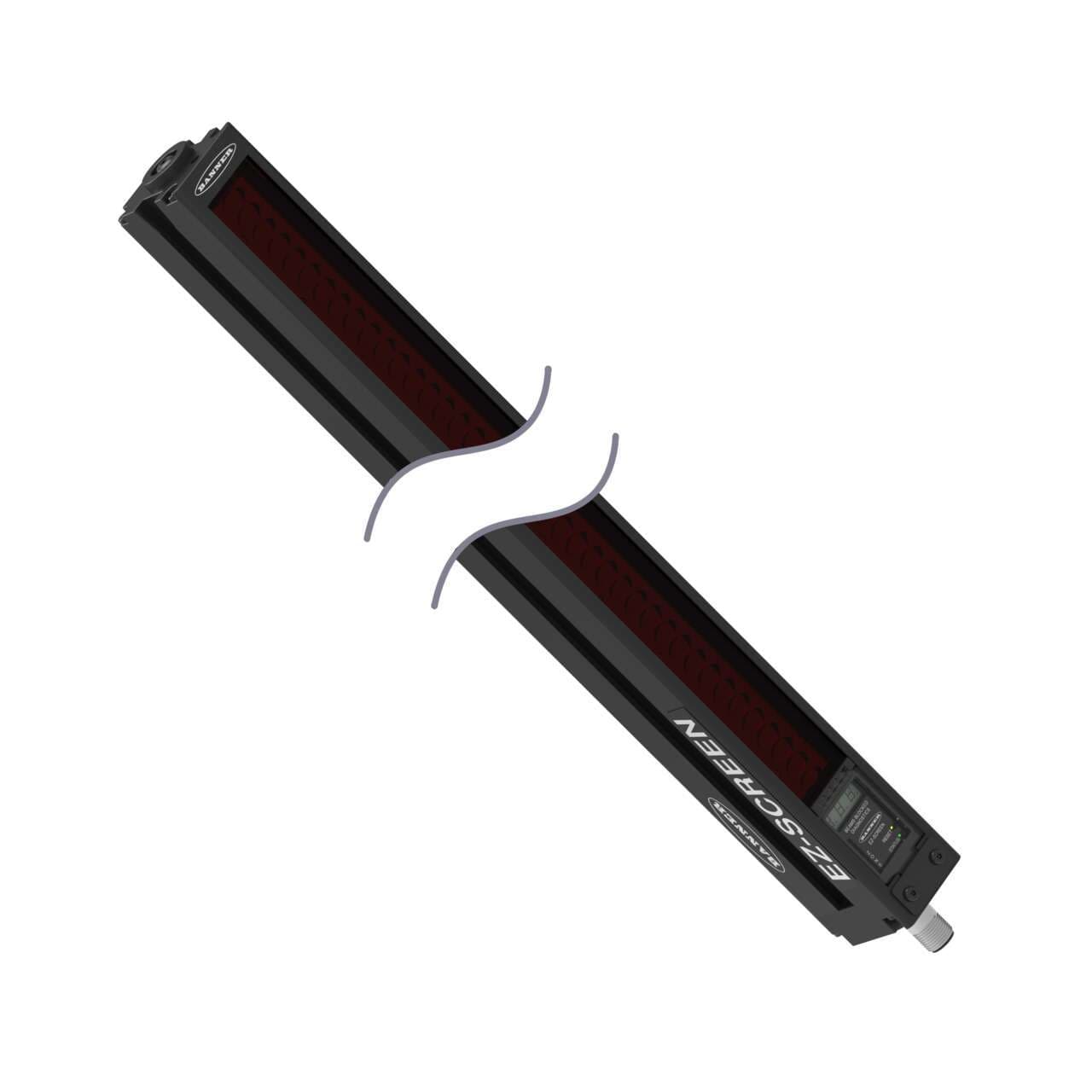

SLSRBR30-1350Q8 Banner Safety Light Curtains

SLSRBR30-1350Q8 on Powermatic Associates
Banner
  • SLSRBR30-1350Q8
  • SLSRBR30-1350Q8

Part#:SLSRBR30-1350Q8

Alt. Part#:83329

Manufacturer:Banner

Category:Safety Light Curtains

Product Lifecycle:Active

Product description

EZ-SCREEN Remote Blanking Receiver; Resolution: 30 mm; Range: 18 m (60 ft); Defined Area: 1350 mm (53.1 in); Housing Length: 1420 mm (55.9 in); Connection: 8-pin M12 Connector

Product Details

  • Weight
    2494.756 g
  • Country Of Origin
    MX
  • Feature: Integral Muting
    No
  • Feature: ESD Safe
    No
  • Feature: End-to-End Sensing
    No
  • Test Input
    No
  • Trip/Latch Output
    Selectable
  • OSSD Rating
    24 V dc at 0.5 A each
  • Housing Material
    Aluminum; Zinc; Acrylic
  • Fault Output
    No
  • Supply Current
    275 mA max.
  • Auxiliary Output
    Yes
  • Vibration
    10-55 Hz at 0.35 mm
  • System Type
    Receiver
  • Electrical Safety Class
    III
  • Short Protection
    Yes
  • Shock
    10g at 16ms (6000 cycles)
  • Scan Code
    Selectable
  • Response Time
    25
  • Reduced Resolution
    Yes
  • Resolution (mm)
    30
  • SIL Rating
    SIL3; CL3
  • PL Rating
    Ple
  • Recovery Time
    25-152 / 81-495
  • Operating Temperature
    0 to +55 deg. C; RH 95%
  • Operating Voltage
    24 V dc +/- 15%
  • Operating Distance (m)
    0.1 - 18
  • Fixed Blanking
    Yes
  • Number of Pins (Receiver/Emitter)
    8
  • IP Rating
    IP65
  • Overall Length (mm)
    1420
  • Housing Finish
    Yellow Polyester
  • Safety Level
    Type 4
  • low-profile
    No
  • Defined Area Height (mm)
    1350
  • Dimensions WxD (mm)
    36 x 45.2
  • External Monitoring Device
    1 or 2 Channel
  • Primary Housing Material
    Aluminum
  • Connector Type
    M12
  • Effective Aperture Angle
    Type 4 Per IEC 61496-2

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of SLSRBR30-1350Q8 on Powermatic Associates is $2,646.00. Order now.

About the product

Banner Engineering SLSRBR30-1350Q8 is a safety light curtain designed for hand detection with a protective height of 1350mm and a resolution of 30mm. It belongs to the SLS series and functions as a receiver alone. This part is pre-equipped with an 8-pin Euro-style M12 connector for connectivity. It operates on a 24Vdc supply voltage and features a 30mm beam spacing/pitch. The SLSRBR30-1350Q8 offers two digital outputs (24Vdc; 500mA; sourcing; redundant OSSD solid-state outputs) and one digital output (24Vdc; 75mA; sourcing/PNP transistor). It also includes one digital input (10Vdc-30Vdc) for EDM and one for RESET. The sensing distance ranges from 10cm to 18m, and it has a response time of 25ms / 0.025 s.
