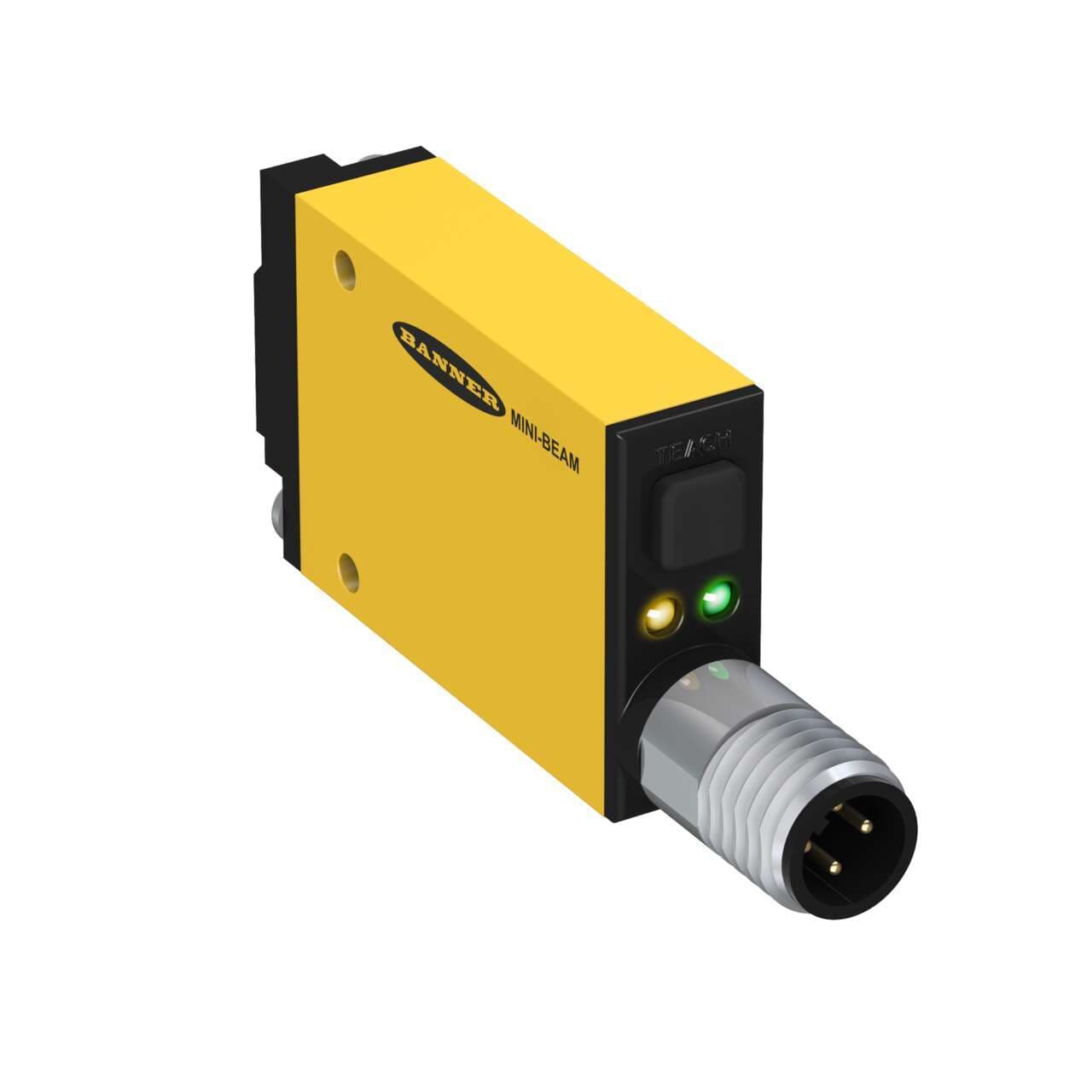

SM2A312DBZQD Banner Proximity Sensors
Part#:SM2A312DBZQD
Alt. Part#:27429
Manufacturer:Banner
Category:Proximity Sensors
Product Lifecycle:Active
Product description
MINI-BEAM: Diffuse; Range: 300 mm; Input: 24-240 V ac; Output: SPST Solid-state 2-Wire; Micro 3-pin Integral QD
Product Details
- Weight 67.131616 g
- Country Of Origin US
- Sensing Mode (Detailed) Diffuse
- Input/Output Solid-State AC Switch
- Max Op. Temp. (°C) 70
- Sensing Beam Visible Red LED
- Output response time (ms) 8
- Indicator LEDs
- NEMA Rating NEMA 1, 2, 3, 3S, 4, 4X, 6, 12, 13
- Outputs Solid-State AC Switch
- Special Feature: Remote Teach No
- IP Rating IP67
- Feature: Encapsulated No
- Max Sensing Distance (mm) 300
- Connection Integral QD
- Delay at Power-up (ms) 300
- Feature: Timing (Hold/Delay) No
- Primary Housing Material Thermoplastic
- Min Op. Temp. (°C) -20
- Sensing Beam Wavelength 650
- Housing Style Rectangular
- Operation Light/Dark Operate
- Repeatability (µs) 2600
- DeviceNet No
- Power AC
- Quick Disconnect Type 1/2 in. (Micro)
- Special Feature: Intrinsically Safe No
- Feature: Hazardous Area No
- Special Feature: Water Detection No
- Barrel Diameter (mm) N/A
- Sensing Mode (General) Proximity
- Max Op. Relative Humidity [%] 90% @ 50°C
- IO Link No
- Lens Material Acrylic
- Number of Pins 3
- Feature: Chemical Resistant No
- Opposed Mode Emitter/Receiver N/A
- Power Supply/Supply Voltage 24-240 V ac
- Adjustments Potentiometer
- Feature: Audible No
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of SM2A312DBZQD on Powermatic Associates is $184.00. Order now.
About the product
Banner Engineering SM2A312DBZQD is a photo-electric sensor from the SM2A312 series, designed with a diffuse mode potentiometer adjustment. This sensor features a thermoplastic housing with an acrylic lens and is pre-equipped with a 3-pin 1/2" micro connector for connectivity. It operates on a supply voltage range of 24Vac-240Vac (200Vac / 220Vac nom.) and can function within an ambient air temperature range of -20 to +70°C. The SM2A312DBZQD offers a degree of protection rated at IP67, NEMA 1, NEMA 2, NEMA 3, NEMA 3S, NEMA 4, NEMA 4X, NEMA 6, NEMA 12, and NEMA 13, ensuring durability in various environmental conditions. It has a rectangular shape and includes 1 x digital output (Solid-state AC output; SPST contact type) for signaling. The sensing distance is 300mm, with an infrared (IR) light color, a response time of 8ms / 0.008 s, and a wavelength of 880 nm.
