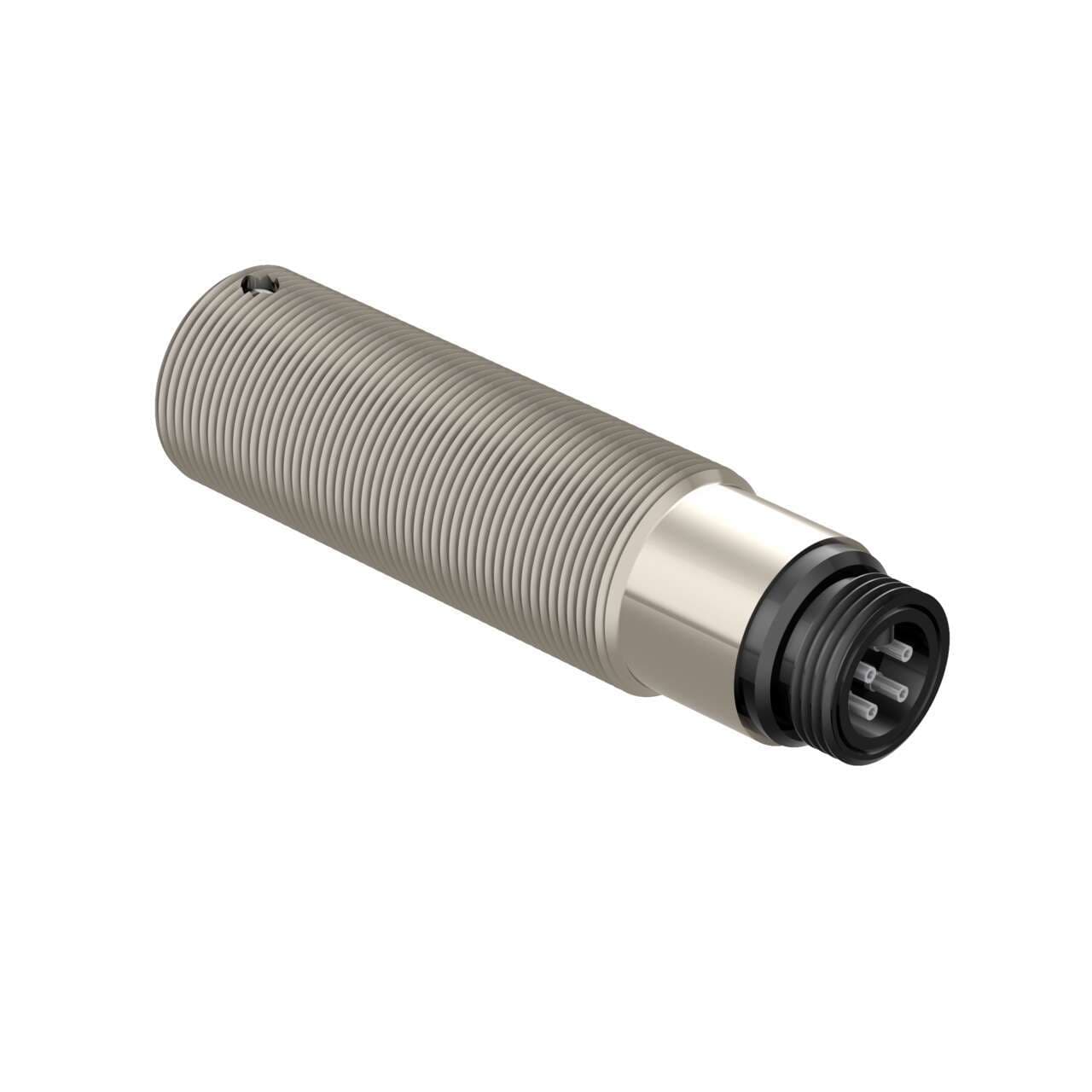

SM30SRLQDB Banner Proximity Sensors
Part#:SM30SRLQDB
Alt. Part#:27377
Manufacturer:Banner
Category:Proximity Sensors
Product Lifecycle:Active
Product description
SM30 Series: Receiver - Frequency B Stainless Stl; Range: 150 m; Input: 10-30 V dc; Output: Bi-Modal: 1 NPN; 1 PNP - LO & DO; 4-pin Mini Integral QD
Product Details
- Weight 301.63868 g
- Country Of Origin MX
- Housing Style Barrel
- Operation Light/Dark Operate
- Lens Material Acrylic
- Feature: Audible No
- Input/Output Discrete
- Special Feature: Remote Teach No
- Adjustments N/A
- DeviceNet No
- Power DC
- Connection Integral QD
- Delay at Power-up (ms) N/A
- Indicator LEDs
- Max Sensing Distance (mm) 150000
- Output response time (ms) 10
- Repeatability (µs) 1500
- Opposed Mode Emitter/Receiver Receiver
- Sensing Mode (General) Opposed
- Special Feature: Intrinsically Safe No
- Number of Pins 4
- Feature: Encapsulated Yes
- Primary Housing Material Stainless Steel
- Power Supply/Supply Voltage 10-30 V dc
- Special Feature: Water Detection No
- NEMA Rating NEMA 6P
- Outputs Bipolar (NPN & PNP)
- Max Op. Temp. (°C) 70
- IP Rating IP67
- Feature: Timing (Hold/Delay) No
- Sensing Beam Infrared LED
- Min Op. Temp. (°C) -40
- Max Op. Relative Humidity [%] 90% @ 50°C
- Feature: Hazardous Area No
- Sensing Mode (Detailed) Receiver
- Quick Disconnect Type 7/8 in. (Mini)
- Barrel Diameter (mm) 30
- Feature: Chemical Resistant Yes
- IO Link No
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of SM30SRLQDB on Powermatic Associates is $344.00. Order now.
About the product
Banner Engineering SM30SRLQDB is a photo-electric sensor designed for through-beam system applications with an "opposed mode B" modulation frequency and is washdown rated. This sensor, part of the SM30 series, features a stainless steel housing and is equipped with a 4-pin 7/8" mini connector for connectivity. It operates on a supply voltage range of 10Vdc to 30Vdc, with nominal voltages of 12Vdc and 24Vdc. The SM30SRLQDB can function within an ambient air temperature range of -40 to +70°C and offers a degree of protection rated at IP67, NEMA 6P, and IP69K. Its M30 cylindrical threaded/barrel shape is designed for easy installation. This model provides one digital output (PNP/NPN transistor), has a sensing distance of up to 150 meters, and uses infrared light with a wavelength of 880 nm. The response time is 10ms (0.01 s), and it supports both Light-ON and Dark-ON operating modes.
