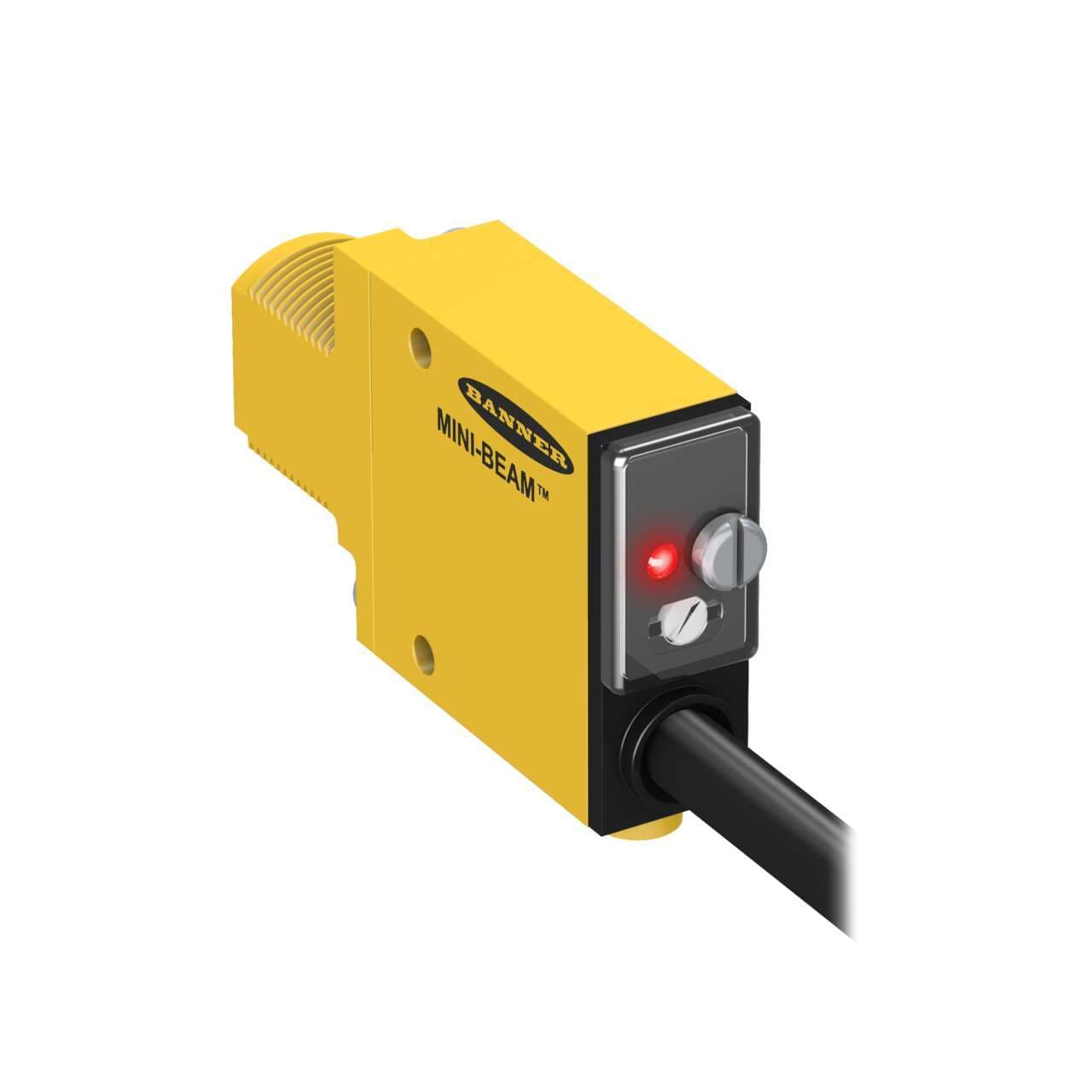

SM31RL W/30 Banner Proximity Sensors
Part#:SM31RL W/30
Alt. Part#:26105
Manufacturer:Banner
Category:Proximity Sensors
Product Lifecycle:Active
Product description
MINI-BEAM: Receiver; Range: 30 m; Input: 10-30 V dc; Output: Bipolar: 1 NPN; 1 PNP; 9 m (30 ft) Cable
Product Details
- Weight 596.019888 g
- Country Of Origin US
- Cable Length (m) 9
- Connection Cable
- Special Feature: Remote Teach No
- Lens Material Acrylic
- Sensing Mode (General) Opposed
- Output response time (ms) 1
- Opposed Mode Emitter/Receiver Receiver
- Housing Style Rectangular w/M18 Mount
- Operation Light/Dark Operate
- Number of Pins 4
- Feature: Encapsulated Yes
- Primary Housing Material Thermoplastic
- Outputs Bipolar (NPN & PNP)
- NEMA Rating NEMA 1, 2, 3, 3S, 4, 4X, 6, 12
- IO Link No
- Max Sensing Distance (mm) 30000
- Repeatability (µs) 140
- Feature: Timing (Hold/Delay) No
- Sensing Beam Infrared LED
- Quick Disconnect Type No QD
- IP Rating IP67
- Power DC
- Min Op. Temp. (°C) -20
- Delay at Power-up (ms) 100
- Max Op. Relative Humidity [%] 90% @ 50°C
- Sensing Mode (Detailed) Receiver
- Special Feature: Intrinsically Safe No
- Barrel Diameter (mm) 18
- Input/Output Discrete
- Power Supply/Supply Voltage 10-30 V dc
- Special Feature: Water Detection No
- Adjustments Potentiometer
- Max Op. Temp. (°C) 70
- Indicator LEDs
- DeviceNet No
- Feature: Hazardous Area No
- Feature: Chemical Resistant No
- Feature: Audible No
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of SM31RL W/30 on Powermatic Associates is $171.00. Order now.
About the product
Banner Engineering SM31RL W/30 is a photo-electric sensor from the SM312 series designed with a through-beam system and opposed mode potentiometer adjustment. This sensor, functioning as a receiver alone, is housed in thermoplastic with an acrylic lens. It features a pre-wired connection with a 30ft / 9m cable terminated with bare end flying leads. The supply voltage required for operation ranges from 10Vdc to 30Vdc, with nominal values at 12Vdc and 24Vdc. It is designed for M18 threaded mount installation and can operate within an ambient air temperature range of -20 to +70°C. The SM31RL W/30 offers a degree of protection rated at IP67, NEMA 1, 2, 3, 3S, 4, 4X, 6, 12, ensuring durability in various environmental conditions. Its rectangular shape incorporates 1 x digital output (PNP/NPN transistor), capable of sensing distances up to 30m with an infrared (IR) light color. The sensor's response time is 1ms / 0.001 s, and it supports both Light-ON and Dark-ON operating modes.
