SM31EML W/30 Banner Electronic Components
Part#:SM31EML W/30
Manufacturer:Banner
Category:Electronic Components
Product Lifecycle:Active
Product description

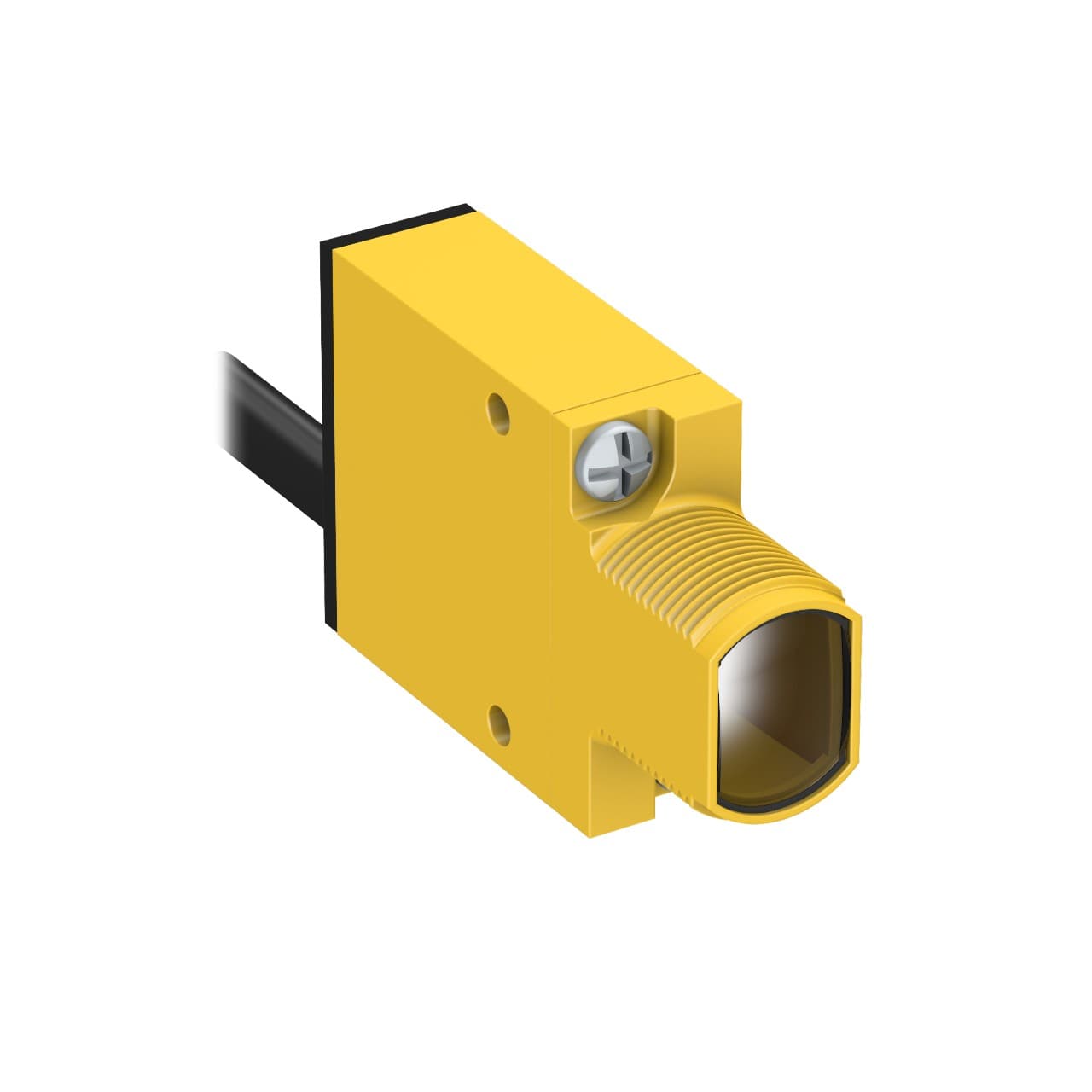

SM31EML W/30 MINIBEAM SCANNER MULTIPLEXER
Product Details
- Primary Housing Material Thermoplastic
- Quick Disconnect Type No QD
- Repeatability (µs) 140
- Indicator LEDs
- Sensing Mode (Detailed) Emitter
- Min Op. Temp. (°C) -20
- IP Rating IP67
- Feature: Audible No
- Housing Style Rectangular w/M18 Mount
- Max Op. Temp. (°C) 70
- NEMA Rating NEMA 1, 2, 3, 3S, 4, 4X, 6, 12
- Feature: Hazardous Area No
- IO Link No
- Power Supply/Supply Voltage 10-30 V dc
- Special Feature: Remote Teach No
- Feature: Timing (Hold/Delay) No
- Power DC
- Operation N/A
- Adjustments Potentiometer
- Opposed Mode Emitter/Receiver Emitter
- Max Sensing Distance (mm) 3000
- Connection Cable
- Number of Pins 2
- Barrel Diameter (mm) 18
- Sensing Beam Infrared LED
- Special Feature: Intrinsically Safe No
- Special Feature: Water Detection No
- Feature: Encapsulated Yes
- Outputs N/A
- Cable Length (m) 9
- Max Op. Relative Humidity [%] 90% @ 50°C
- Feature: Chemical Resistant No
- Sensing Mode (General) Opposed
- Output response time (ms) 1
- Delay at Power-up (ms) 100
- Lens Material Acrylic
- DeviceNet No
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
