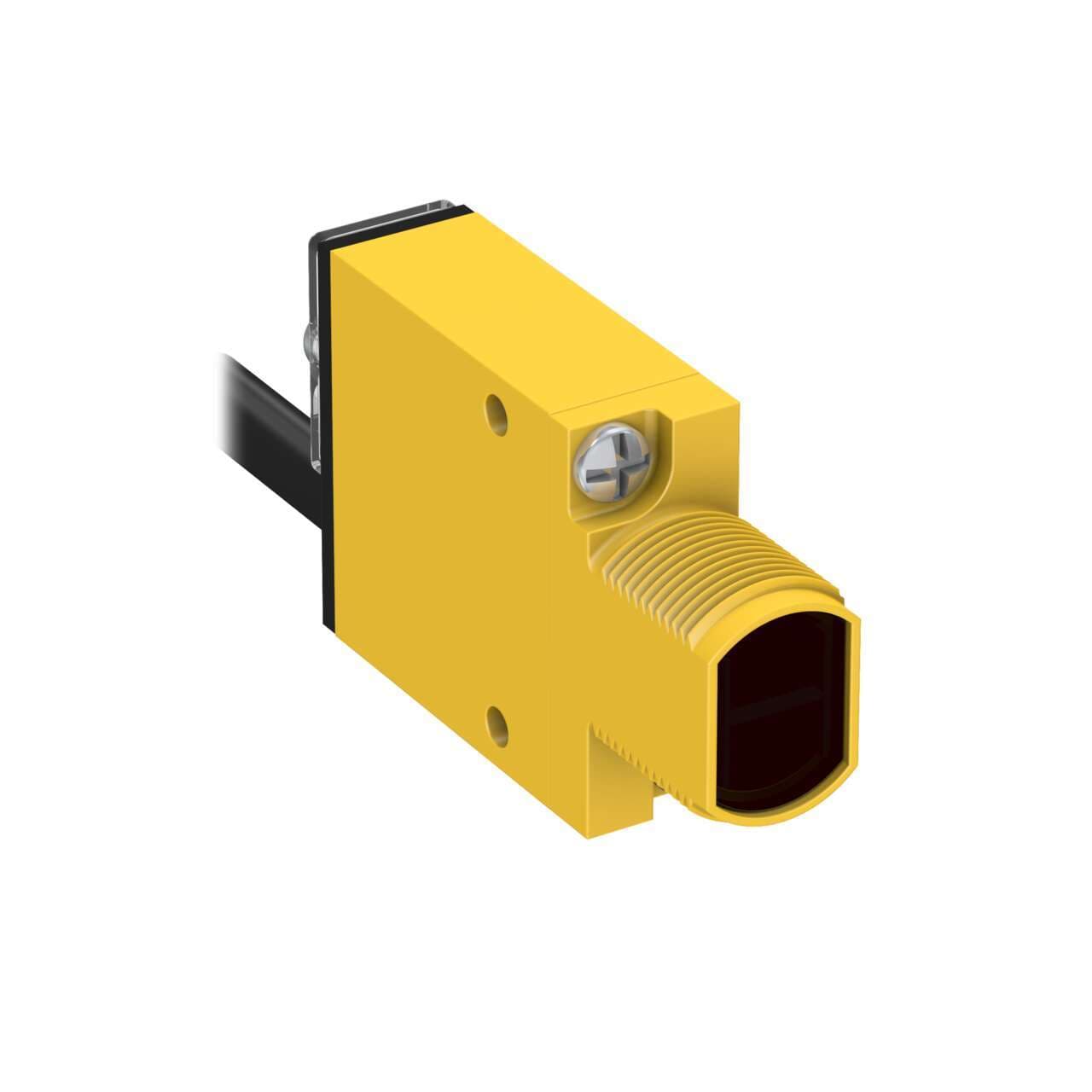

SM312LVAG Banner Proximity Sensors
Part#:SM312LVAG
Alt. Part#:25776
Manufacturer:Banner
Category:Proximity Sensors
Product Lifecycle:Active
Product description

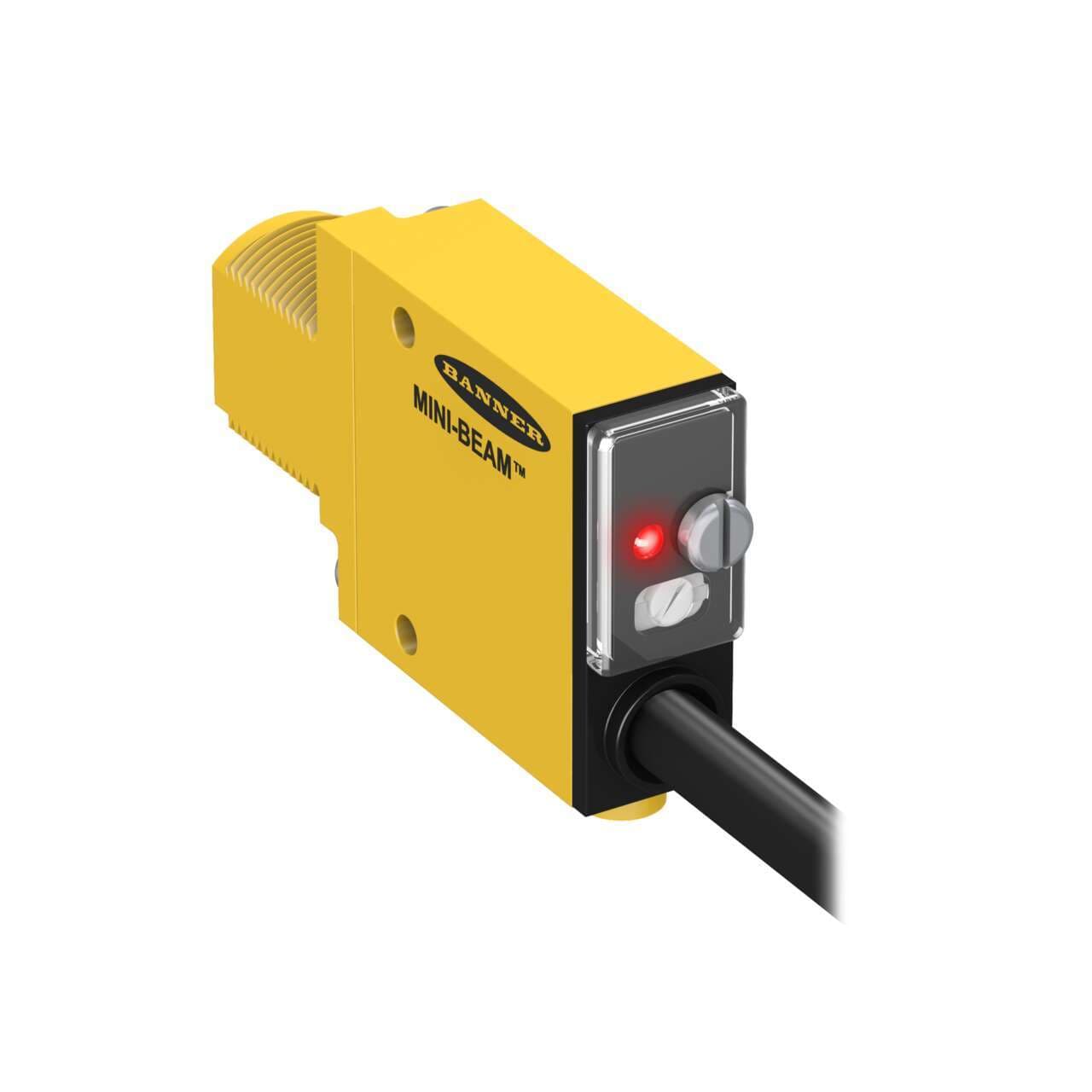

MINI-BEAM: Polarized Retro; Range: 50 mm - 2 m; Input: 10-30 V dc; Output: Bipolar: 1 NPN; 1 PNP; 2 m (6.5 ft) Cable
Product Details
- Weight 151.499728 g
- Country Of Origin US
- Main function Sensor (Photo-electric)
- Sensing distance 5cm...2m
- Supply voltage (DC) 10Vdc-30Vdc (12Vdc / 24Vdc nom.)
- Thread size M18
- Functions Polarized photo-electric sensor red LED (power ON) potentiometer adjustment
- Light Color Visible red
- Sub-range name SM312
- Design retro-reflective mode
- Operating mode Light-ON Dark-ON
- Order code / Manufacturer SKU 25776
- Primary brand Banner Engineering
- Shape Rectangular
- Digital outputs 1 x digital output (PNP/NPN transistor)
- Compliant with standard(s) cURus CSA CE
- Degree of protection IP67 NEMA 1 NEMA 2 NEMA 3 NEMA 3S NEMA 4 NEMA 4X NEMA 6 NEMA 12 NEMA 13
- Ambient air temperature for operation -20...+70 °C
- Material thermoplastic housing Acrylic lns.
- Connection type Pre-wired with 6.5ft / 2m cable terminated with bare end flying leads
- Product series / family name MINI-BEAM series
- Mounting mode Threaded mount
- Response time 1ms / 0.001 s
- Power DC
- Special Feature: Water Detection No
- Adjustments Potentiometer
- IO Link No
- Max Sensing Distance (mm) 2000
- Sensing Mode (General) Retroreflective
- Sensing Beam Visible Red LED
- Max Op. Temp. (°C) 70
- Delay at Power-up (ms) 100
- Feature: Audible No
- Lens Material Acrylic
- Barrel Diameter (mm) 18
- Cable Length (m) 2
- Housing Style Rectangular w/M18 Mount
- Operation Light/Dark Operate
- Special Feature: Remote Teach No
- IP Rating IP67
- Max Op. Relative Humidity [%] 90% @ 50°C
- Feature: Hazardous Area No
- DeviceNet No
- Input/Output Discrete
- Primary Housing Material Thermoplastic
- Outputs Bipolar (NPN & PNP)
- NEMA Rating NEMA 1, 2, 3, 3S, 4, 4X, 6, 12
- Opposed Mode Emitter/Receiver N/A
- Feature: Chemical Resistant No
- Sensing Mode (Detailed) Polarized
- Power Supply/Supply Voltage 10-30 V dc
- Sensing Beam Wavelength 650
- Indicator LEDs
- Connection Cable
- Output response time (ms) 1
- Repeatability (µs) 300
- Feature: Timing (Hold/Delay) No
- Quick Disconnect Type No QD
- Number of Pins 4
- Feature: Encapsulated Yes
- Min Op. Temp. (°C) -20
- Special Feature: Intrinsically Safe No
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of SM312LVAG on Powermatic Associates is $158.00. Order now.
About the product
Banner Engineering SM312LVAG is a polarized photo-electric sensor from the SM312 series, designed in a retro-reflective mode with potentiometer adjustment. It features a thermoplastic housing and an acrylic lens. This sensor is pre-wired with a 6.5ft / 2m cable terminated with bare end flying leads. It operates on a supply voltage of 10Vdc-30Vdc, with nominal values of 12Vdc and 24Vdc. The SM312LVAG offers an M18 threaded mount for installation and can operate within an ambient air temperature range of -20 to +70°C. It boasts a degree of protection rated at IP67, NEMA 1, NEMA 2, NEMA 3, NEMA 3S, NEMA 4, NEMA 4X, NEMA 6, and NEMA 12. The sensor has a rectangular shape and includes 1 x digital output (PNP/NPN transistor). It is capable of sensing distances from 55mm to 2m and emits visible red light. The response time of the SM312LVAG is 1ms / 0.001 s, and it supports both Light-ON and Dark-ON operating modes.
