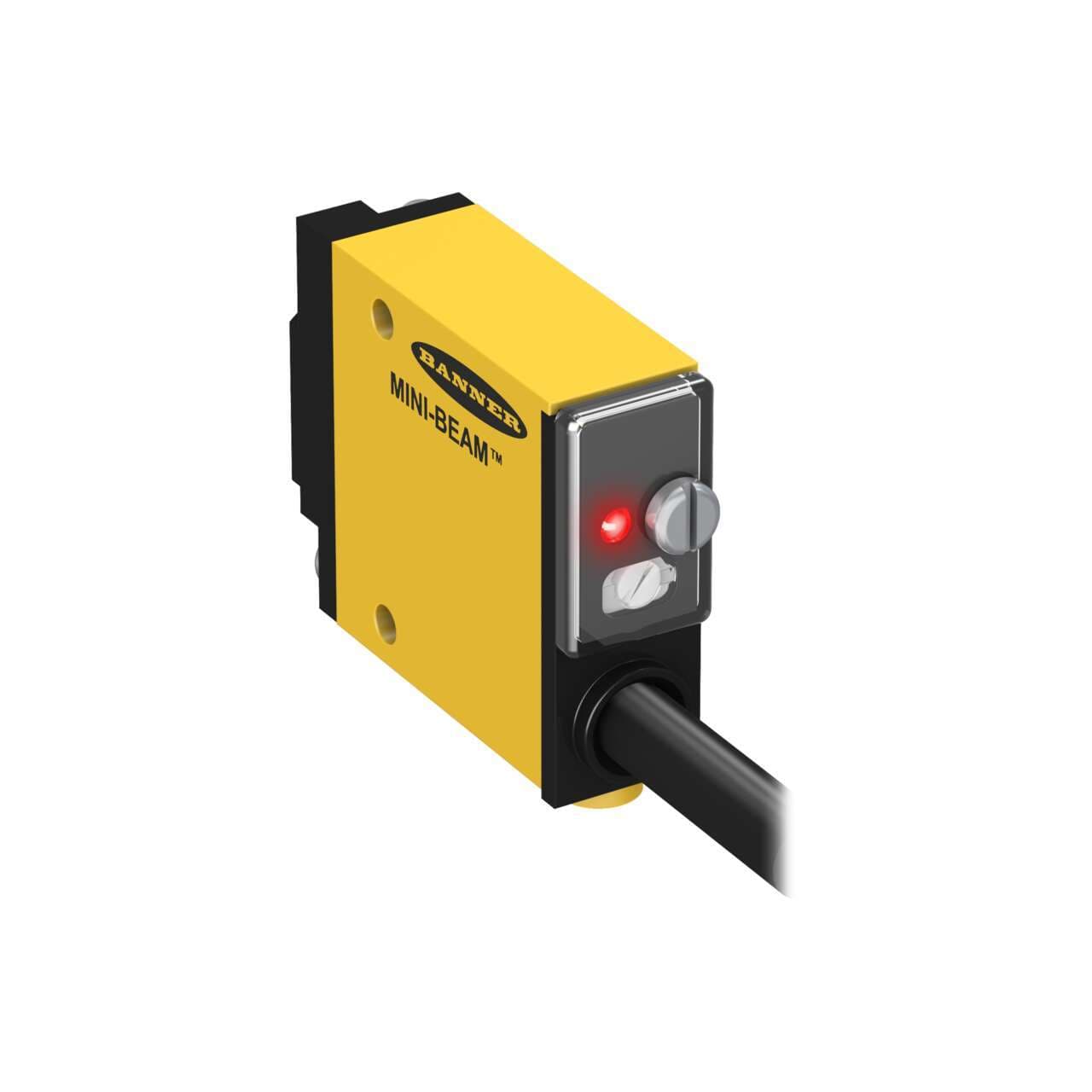

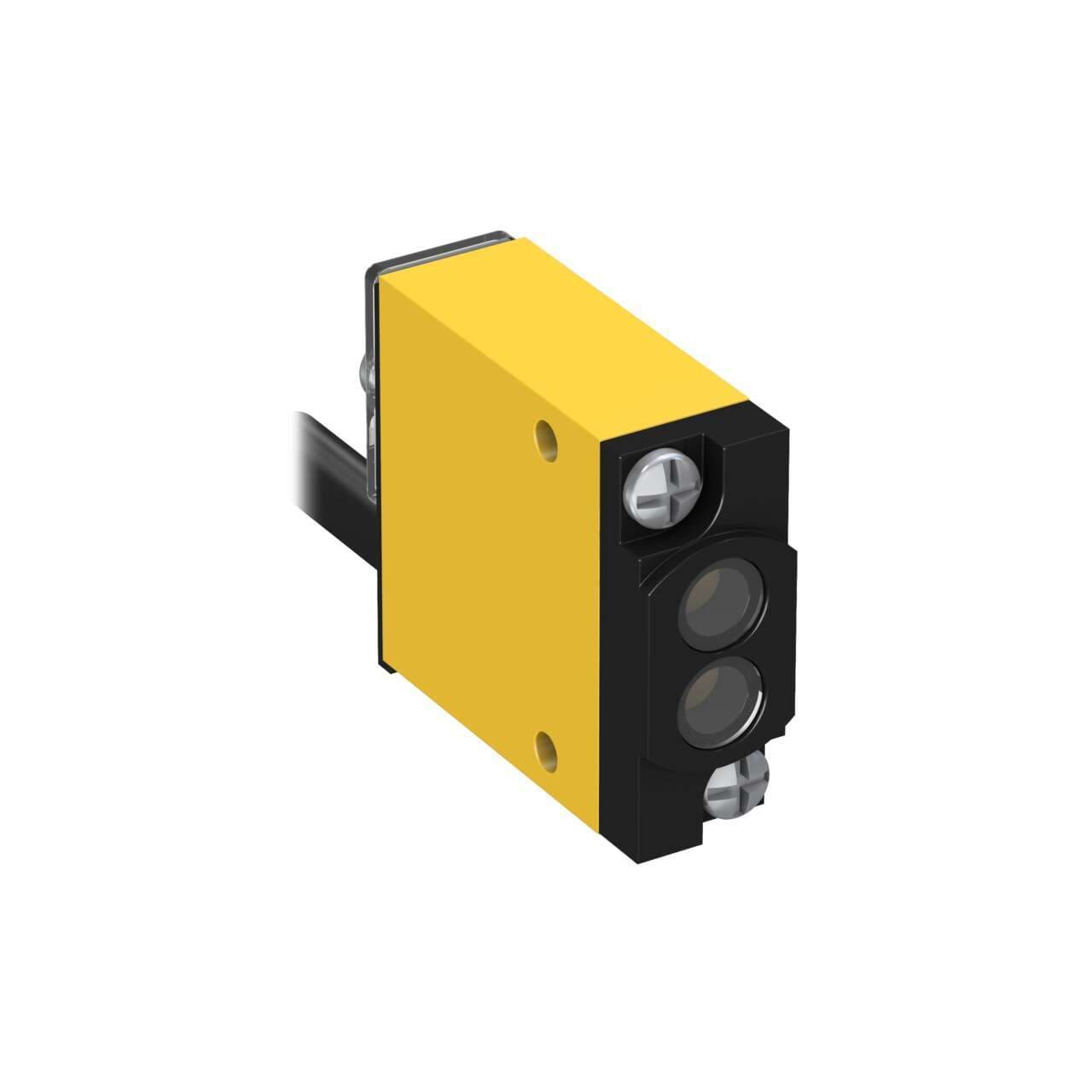

SM312W Banner Proximity Sensors
Part#:SM312W
Alt. Part#:26264
Manufacturer:Banner
Category:Proximity Sensors
Product Lifecycle:Active
Product description
MINI-BEAM: Divergent Diffuse; Range: 130 mm; Input: 10-30 V dc; Output: Bipolar: 1 NPN; 1 PNP; 2 m (6.5 ft) cable
Product Details
- Weight 148.324584 g
- Country Of Origin US
- Main function Sensor (Photo-electric)
- Design divergent diffuse system
- Sub-range name SM312
- Light Color Infrared (IR)
- Supply voltage (DC) 10Vdc-30Vdc (12Vdc / 24Vdc nom.)
- Shape Rectangular
- Response time 1ms / 0.001 s
- Compliant with standard(s) cURus CSA CE
- Product series / family name MINI-BEAM series
- Sensing distance 130mm
- Digital outputs 1 x digital output (PNP/NPN transistor)
- Degree of protection IP67 NEMA 1 NEMA 2 NEMA 3 NEMA 3S NEMA 4 NEMA 4X NEMA 6 NEMA 12 NEMA 13
- Order code / Manufacturer SKU 26264
- Primary brand Banner Engineering
- Functions Photo-electric sensor red LED (power ON) potentiometer adjustment
- Connection type Pre-wired with 6.5ft / 2m cable terminated with bare end flying leads
- Ambient air temperature for operation -20...+70 °C
- Operating mode Light-ON Dark-ON
- Material thermoplastic housing Acrylic lns.
- Indicator LEDs
- Outputs Bipolar (NPN & PNP)
- IP Rating IP67
- Feature: Hazardous Area No
- Primary Housing Material Thermoplastic
- Special Feature: Remote Teach No
- Input/Output Discrete
- Min Op. Temp. (°C) -20
- Delay at Power-up (ms) 100
- Opposed Mode Emitter/Receiver N/A
- Sensing Mode (Detailed) Divergent
- Special Feature: Intrinsically Safe No
- Lens Material Acrylic
- DeviceNet No
- Max Sensing Distance (mm) 130
- Connection Cable
- Repeatability (µs) 300
- Sensing Mode (General) Proximity
- Quick Disconnect Type No QD
- Special Feature: Water Detection No
- Power DC
- Output response time (ms) 1
- Power Supply/Supply Voltage 10-30 V dc
- Max Op. Relative Humidity [%] 90% @ 50°C
- Number of Pins 4
- Feature: Encapsulated Yes
- Sensing Beam Infrared LED
- Operation Light/Dark Operate
- NEMA Rating NEMA 1, 2, 3, 3S, 4, 4X, 6, 12
- Feature: Chemical Resistant No
- Adjustments Potentiometer
- IO Link No
- Housing Style Rectangular
- Feature: Timing (Hold/Delay) No
- Cable Length (m) 2
- Max Op. Temp. (°C) 70
- Feature: Audible No
- Barrel Diameter (mm) N/A
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of SM312W on Powermatic Associates is $148.00. Order now.
About the product
Banner Engineering SM312W is a photo-electric sensor from the SM312 series, featuring a divergent diffuse system with potentiometer adjustment. It is constructed with a thermoplastic housing and an acrylic lens. This sensor is pre-wired with a 6.5ft / 2m cable that terminates with bare end flying leads. It operates on a supply voltage of 10Vdc-30Vdc, with 12Vdc and 24Vdc as nominal values. Designed for a wide range of ambient air temperatures, it functions effectively between -20 and +70 degrees Celsius. The SM312W offers a high degree of protection, rated at IP67 and compliant with multiple NEMA standards including 1, 2, 3, 3S, 4, 4X, 6, and 12, ensuring its durability in various environments. Its rectangular shape is complemented by a single digital output (PNP/NPN transistor), a sensing distance of 130mm, and an infrared light source. With a rapid response time of 1ms / 0.001 s, it supports both Light-ON and Dark-ON operating modes.
