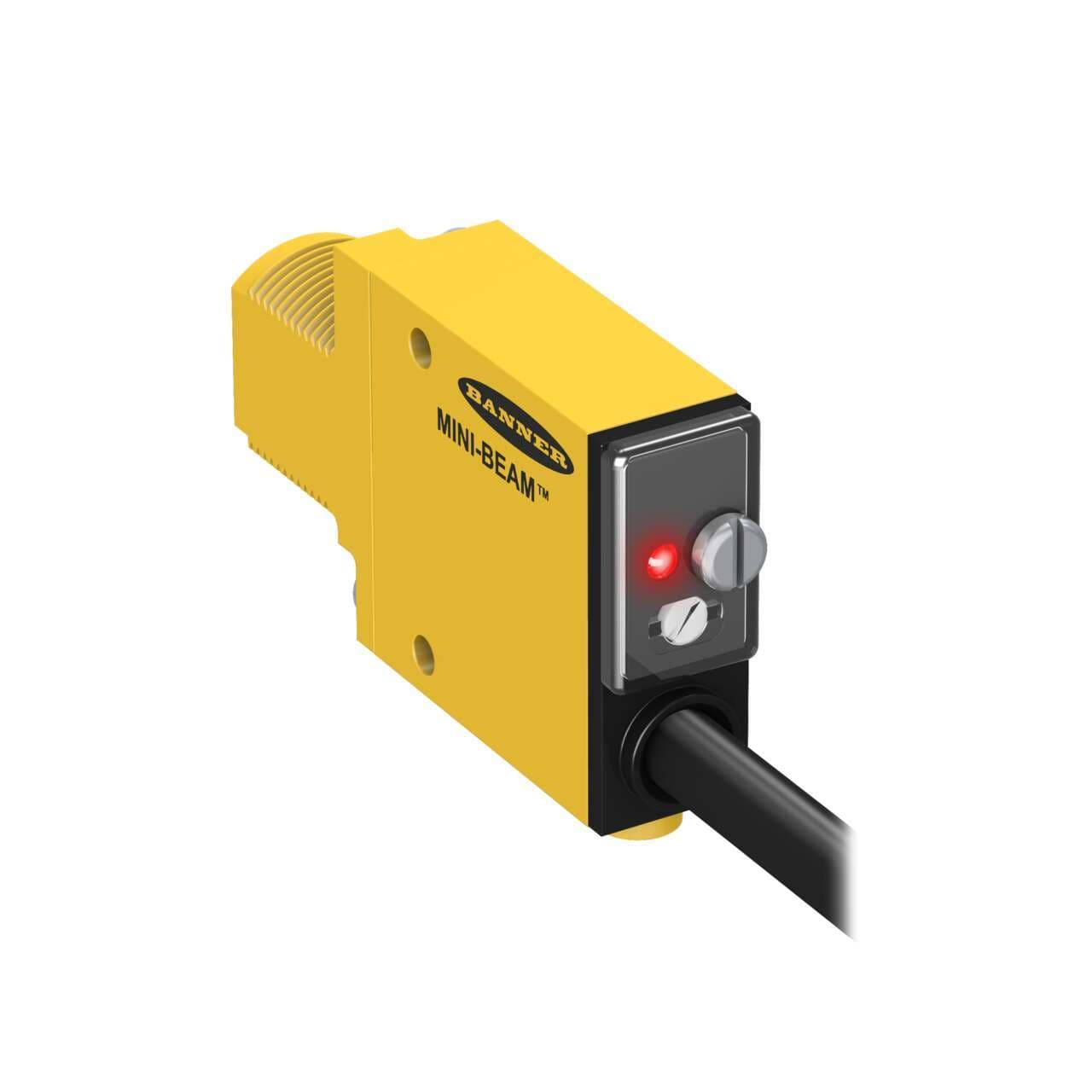

SM31RL Banner Proximity Sensors

Product Details

• Weight
  151.046136 g
• Country Of Origin
  US
• Product series / family name
  MINI-BEAM series
• Design
  through-beam system / opposed mode
• Mounting mode
  Threaded mount
• Sensing distance
  30m
• Digital outputs
  1 x digital output (PNP/NPN transistor)
• Ambient air temperature for operation
  -20...+70 °C
• Primary brand
  Banner Engineering
• Supply voltage (DC)
  10Vdc-30Vdc (12Vdc / 24Vdc nom.)
• Sub-range name
  SM312
• Shape
  Rectangular
• Operating mode
  Light-ON Dark-ON
• Material
  thermoplastic housing Acrylic lns.
• Main function
  Sensor (Photo-electric)
• Functions
  Photo-electric sensor receiver red LED (power ON) potentiometer adjustment
• Light Color
  Infrared (IR)
• Connection type
  Pre-wired with 6.5ft / 2m cable terminated with bare end flying leads
• Thread size
  M18
• Response time
  1ms / 0.001 s
Compliant with standard(s)
cURus CSA CE
Degree of protection
IP67 NEMA 1 NEMA 2 NEMA 3 NEMA 3S NEMA 4 NEMA 4X NEMA 6 NEMA 12 NEMA 13
Order code / Manufacturer SKU
25725
Primary Housing Material
Thermoplastic
Output response time (ms)
1
NEMA Rating
NEMA 1, 2, 3, 3S, 4, 4X, 6, 12
DeviceNet
No
Sensing Mode (General)
Opposed
Operation
Light/Dark Operate
IP Rating
IP67
Feature: Timing (Hold/Delay)
No
Sensing Beam
Infrared LED
Outputs
Bipolar (NPN & PNP)
Lens Material
Acrylic
Feature: Audible
No
Housing Style
Rectangular w/M18 Mount
Max Op. Temp. (°C)
70
Number of Pins
4
Feature: Encapsulated
Yes
Connection
Cable
Max Op. Relative Humidity [%]
90% @ 50°C
Feature: Chemical Resistant
No
Power
DC
Power Supply/Supply Voltage
10-30 V dc
Special Feature: Water Detection
No
Indicator
LEDs
Input/Output
Discrete
Special Feature: Remote Teach
No
Barrel Diameter (mm)
18
Sensing Mode (Detailed)
Receiver
Quick Disconnect Type
No QD
Repeatability (µs)
140
Feature: Hazardous Area
No
Max Sensing Distance (mm)
30000
Special Feature: Intrinsically Safe
No
Adjustments
Potentiometer
IO Link
No
Cable Length (m)
2
Min Op. Temp. (°C)
-20
Delay at Power-up (ms)
100
Opposed Mode Emitter/Receiver
Receiver
