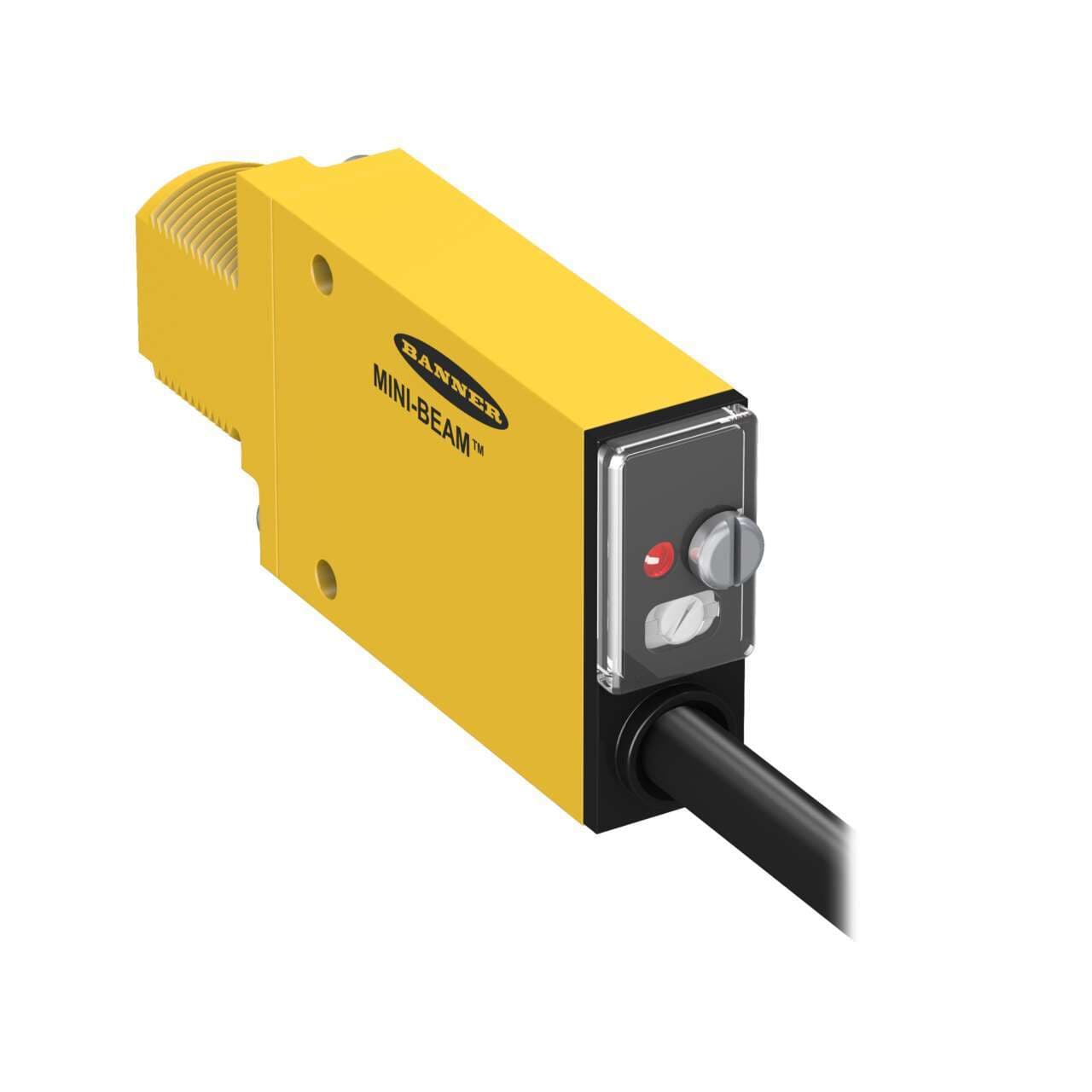

SMU315D Banner Proximity Sensors
Part#:SMU315D
Alt. Part#:52570
Manufacturer:Banner
Category:Proximity Sensors
Product Lifecycle:Active
Product description
MINI-BEAM UNIVERSAL: Diffuse; Range: 380 mm; Input: 24-240 V ac or dc; Output: SPDT Electromechanical Relay; 2 m (6.5 ft) Cable
Product Details
- Weight 190.50864 g
- Country Of Origin US
- Primary brand Banner Engineering
- Supply voltage (AC) 24Vac-240Vac (200Vac / 220Vac nom.)
- Design diffuse mode
- Shape Rectangular
- Digital outputs 1 x digital output (SPDT contact type)
- Order code / Manufacturer SKU 52570
- Product series / family name MINI-BEAM series
- Functions Photo-electric sensor red LED (power ON) potentiometer adjustment
- Thread size M18
- Operating mode Light-ON Dark-ON
- Response time 20ms / 0.02 s
- Main function Sensor (Photo-electric)
- Supply voltage (DC) 24Vdc-240Vdc (48Vdc / 120Vdc nom.)
- Wavelength 880 nm
- Ambient air temperature for operation -20...+55 °C
- Sensing distance 380mm
- Connection type Pre-wired with 6.5ft / 2m cable terminated with bare end flying leads
- Degree of protection IP67 NEMA 1 NEMA 2 NEMA 3 NEMA 3S NEMA 4 NEMA 4X NEMA 6 NEMA 12 NEMA 13
- Sub-range name SMU315 univeral voltage
- Light Color Infrared (IR)
- Mounting mode Threaded mount
- Material thermoplastic housing
- Sensing Mode (Detailed) Diffuse
- Min Op. Temp. (°C) -20
- IP Rating IP67
- Barrel Diameter (mm) 18
- Input/Output E/M Relay
- Max Op. Temp. (°C) 55
- NEMA Rating NEMA 1, 2, 3, 3S, 4, 4X, 6, 12, 13
- Feature: Encapsulated Yes
- Max Sensing Distance (mm) 380
- Special Feature: Intrinsically Safe No
- Number of Pins 5
- Feature: Hazardous Area No
- DeviceNet No
- Housing Style Rectangular w/M18 Mount
- Operation Light/Dark Operate
- Max Op. Relative Humidity [%] 90% @ 50°C
- Feature: Audible No
- Cable Length (m) 2
- Outputs SPDT e/m Relay
- Special Feature: Water Detection No
- Indicator LEDs
- Power AC/DC Universal
- Connection Cable
- Repeatability (µs) N/A
- Adjustments Potentiometer
- IO Link No
- Sensing Mode (General) Proximity
- Output response time (ms) 20
- Delay at Power-up (ms) N/A
- Feature: Timing (Hold/Delay) No
- Primary Housing Material Thermoplastic
- Quick Disconnect Type No QD
- Lens Material Acrylic
- Feature: Chemical Resistant No
- Sensing Beam Infrared LED
- Power Supply/Supply Voltage 24-240 V ac/dc
- Special Feature: Remote Teach No
- Opposed Mode Emitter/Receiver N/A
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of SMU315D on Powermatic Associates is $209.00. Order now.
About the product
Banner Engineering SMU315D is a photo-electric sensor from the SMU315 universal voltage series, featuring a diffuse mode with potentiometer adjustment. This sensor is housed in thermoplastic and comes pre-wired with a 6.5ft / 2m cable terminated with bare end flying leads. It supports a supply voltage range of 24Vac-240Vac (200Vac / 220Vac nom.) and 24Vdc-240Vdc (48Vdc / 120Vdc / 220Vdc nom.), making it versatile for various power supplies. The SMU315D is designed for M18 threaded mount installation and can operate within an ambient air temperature range of -20 to +55°C. It offers a high degree of protection, rated at IP67 and compliant with multiple NEMA standards, including 1, 2, 3, 3S, 4, 4X, 6, 12, and 13. The sensor has a rectangular shape, includes 1 x digital output (SPDT relay contact), and provides a sensing distance of up to 380mm. It operates with infrared light (IR) at a wavelength of 880 nm and has a response time of 20ms / 0.02 s, with both Light-ON and Dark-ON operating modes.
