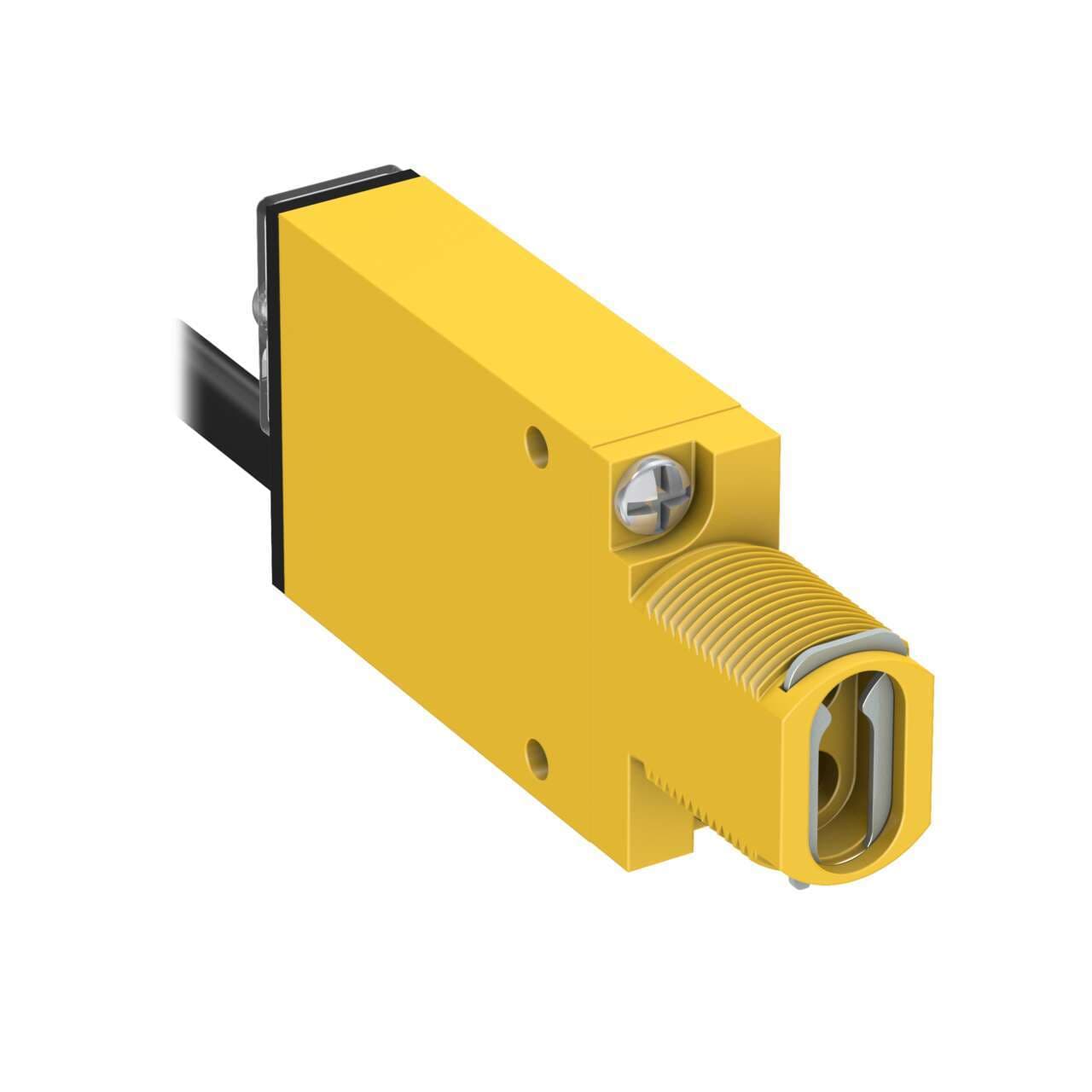

SMU315F Banner Proximity Sensors
Part#:SMU315F
Alt. Part#:52577
Manufacturer:Banner
Category:Proximity Sensors
Product Lifecycle:Active
Product description
MINI-BEAM UNIVERSAL: Infrared Glass Fiber Optic; Range: Depends on Fiber; Input: 24-240 V ac/dc; Output: SPDT Electromechanical Relay; 2 m (6.5 ft) cable
Product Details
- Weight 195.04456 g
- Country Of Origin US
- Light Color Infrared (IR)
- Mounting mode Threaded mount
- Material thermoplastic housing Glass fiber
- Connection type Pre-wired with 6.5ft / 2m cable terminated with bare end flying leads
- Response time 20ms / 0.02 s
- Wavelength 880 nm
- Ambient air temperature for operation -20...+55 °C
- Primary brand Banner Engineering
- Supply voltage (AC) 24Vac-240Vac (200Vac / 220Vac nom.)
- Product series / family name MINI-BEAM series
- Sub-range name SMU315 univeral voltage
- Main function Sensor (Photo-electric)
- Supply voltage (DC) 24Vdc-240Vdc (48Vdc / 120Vdc nom.)
- Degree of protection IP67 NEMA 1 NEMA 2 NEMA 3 NEMA 3S NEMA 4 NEMA 4X NEMA 6 NEMA 12 NEMA 13
- Functions Photo-electric fiber optic sensor red LED (power ON) potentiometer adjustment
- Thread size M18
- Digital outputs 1 x digital output (SPDT contact type)
- Shape Rectangular
- Operating mode Light-ON Dark-ON
- Order code / Manufacturer SKU 52577
- Power AC/DC Universal
- Max Op. Temperature (°C) 55
- Minimum response time (ms) 20
- Output SPDT e/m Relay
- Output Type (Specific) Single Discrete
- Min Op. Temperature (°C) -20
- Indicator Display Type Indicator LEDs
- Fiber Type Glass Only
- Max Op. Relative Humidity (%) 90% @ 50°C
- Delay at Power-up (ms) 1000
- Color LED - Amplifiers Infrared
- Repeatability (µs) 1000
- Feature: Audible No
- Cable Length (m) 2
- Special Feature: Remote Teach No
- Housing Material Thermoplastic
- Primary Housing Material Thermoplastic
- Number of Pins 5
- IO Link No
- Connection Cable
- NEMA Rating NEMA 1, 2, 3, 3S, 4, 4X, 6, 12, 13
- Power Supply/Supply Voltage 24-240 V ac/dc
- Feature: Timing (Hold/Delay) No
- Input/Output Discrete
- Quick Disconnect Type No QD
- Adjustments Potentiometer
- Feature: Hazardous Area No
- Housing Style Rectangular w/M18 Mount
- IP Rating IP67
- Intrinsically Safe No
- Special Feature: Bussable Power No
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of SMU315F on Powermatic Associates is $209.00. Order now.
About the product
Banner Engineering SMU315F is a photo-electric fiber optic sensor within the SMU315 universal voltage series. It features a potentiometer adjustment design and is constructed with a thermoplastic housing and glass fiber. This sensor is pre-wired with a 6.5ft / 2m cable that terminates with bare end flying leads. It supports a supply voltage range of 24Vac-240Vac (200Vac / 220Vac nom.) for AC and 24Vdc-240Vdc (48Vdc / 120Vdc / 220Vdc nom.) for DC. The SMU315F offers an M18 threaded mount for installation and operates within an ambient air temperature range of -20 to +55°C. It boasts a degree of protection rated at IP67, NEMA 1, NEMA 2, NEMA 3, NEMA 3S, NEMA 4, NEMA 4X, NEMA 6, NEMA 12, and NEMA 13. The sensor has a rectangular shape and includes 1 x digital output (SPDT relay contact). It operates with infrared (IR) light, has a response time of 20ms / 0.02 s, and functions in both Light-ON and Dark-ON operating modes with a wavelength of 880 nm.
