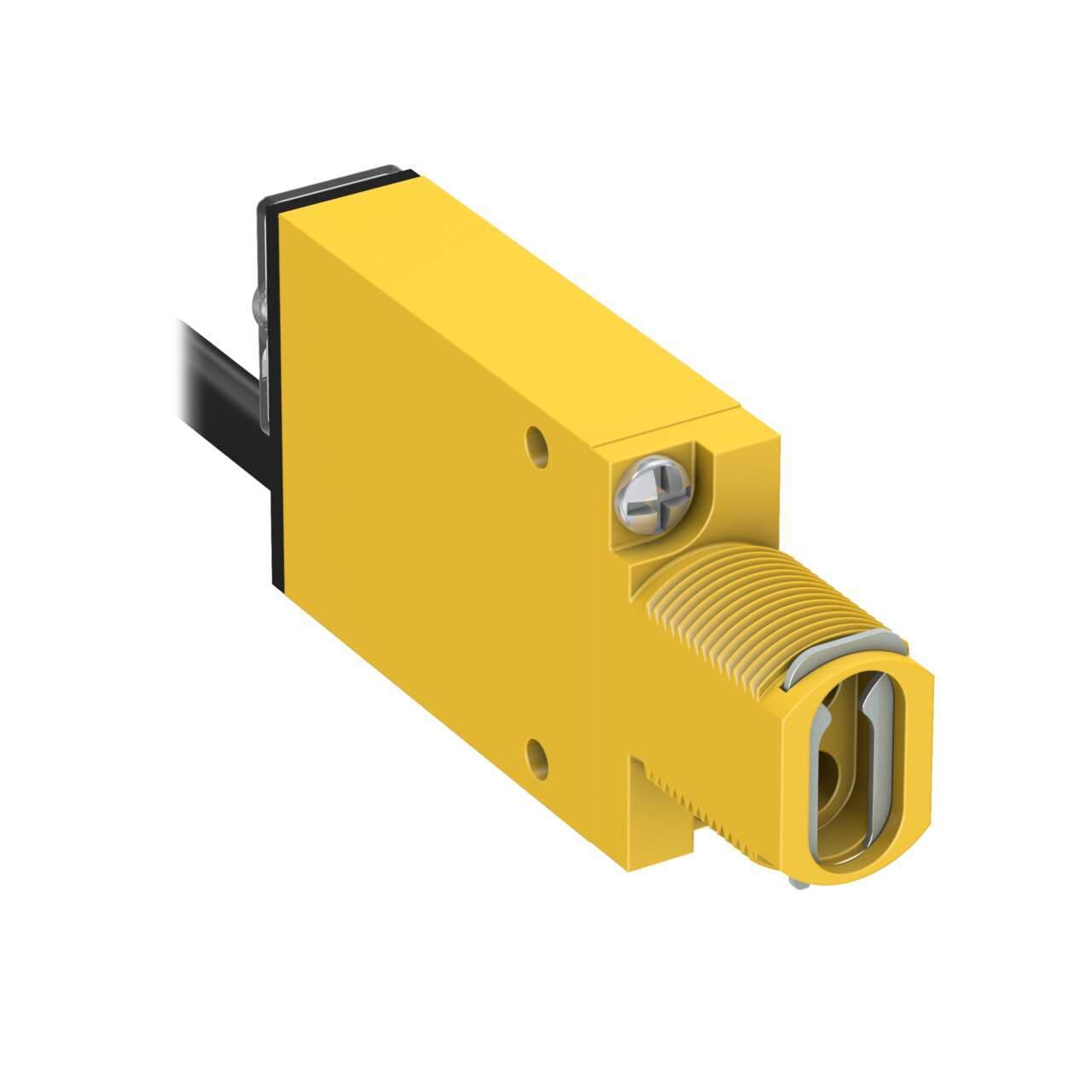

SMU31E Banner Proximity Sensors
Part#:SMU31E
Alt. Part#:52575
Manufacturer:Banner
Category:Proximity Sensors
Product Lifecycle:Active
Product description
MINI-BEAM UNIVERSAL: Emitter; Range: 3 m; Input: 24-240 V ac or 24-240 V dc; Output: Not Applicable; 2 m (6.5 ft) Cable
Product Details
- Weight 190.50864 g
- Country Of Origin US
- Primary brand Banner Engineering
- Supply voltage (AC) 24Vac-240Vac (200Vac / 220Vac nom.)
- Supply voltage (DC) 24Vdc-240Vdc (48Vdc / 120Vdc nom.)
- Product series / family name MINI-BEAM series
- Wavelength 880 nm
- Sub-range name SMU315 univeral voltage
- Main function Sensor (Photo-electric)
- Design through-beam system / opposed mode
- Functions Photo-electric emitter red LED (power ON) potentiometer adjustment
- Digital outputs 1 x digital output (SPDT contact type)
- Degree of protection IP67 NEMA 1 NEMA 2 NEMA 3 NEMA 3S NEMA 4 NEMA 4X NEMA 6 NEMA 12 NEMA 13
- Thread size M18
- Operating mode Light-ON Dark-ON
- Response time 20ms / 0.02 s
- Connection type Pre-wired with 6.5ft / 2m cable terminated with bare end flying leads
- Mounting mode Threaded mount
- Order code / Manufacturer SKU 52575
- Light Color Infrared (IR)
- Shape Rectangular
- Material thermoplastic housing
- Ambient air temperature for operation -20...+55 °C
- Power AC/DC Universal
- Special Feature: Intrinsically Safe No
- Adjustments Potentiometer
- Feature: Chemical Resistant No
- Outputs N/A
- Max Op. Temp. (°C) 55
- NEMA Rating NEMA 1, 2, 3, 3S, 4, 4X, 6, 12, 13
- DeviceNet No
- Repeatability (µs) N/A
- Feature: Timing (Hold/Delay) No
- Cable Length (m) 2
- Connection Cable
- Special Feature: Water Detection No
- Indicator LEDs
- Primary Housing Material Thermoplastic
- Output response time (ms) 20
- Lens Material Acrylic
- IO Link No
- Max Sensing Distance (mm) 3000
- Delay at Power-up (ms) N/A
- Feature: Encapsulated Yes
- Housing Style Rectangular w/M18 Mount
- Operation N/A
- IP Rating IP67
- Feature: Audible No
- Sensing Mode (Detailed) Emitter
- Power Supply/Supply Voltage 24-240 V ac/dc
- Special Feature: Remote Teach No
- Barrel Diameter (mm) 18
- Sensing Beam Infrared LED
- Min Op. Temp. (°C) -20
- Number of Pins 2
- Opposed Mode Emitter/Receiver Emitter
- Sensing Mode (General) Opposed
- Quick Disconnect Type No QD
- Max Op. Relative Humidity [%] 90% @ 50°C
- Feature: Hazardous Area No
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of SMU31E on Powermatic Associates is $122.00. Order now.
About the product
Banner Engineering SMU31E is a photo-electric sensor designed as part of the SMU315 universal voltage series, featuring a through-beam system with opposed mode potentiometer adjustment. This sensor, functioning as an emitter alone, is housed in thermoplastic and comes pre-wired with a 6.5ft / 2m cable terminated with bare end flying leads. It supports a wide supply voltage range, accommodating 24Vac-240Vac (200Vac / 220Vac nom.) for AC and 24Vdc-240Vdc (48Vdc / 120Vdc / 220Vdc nom.) for DC. The SMU31E offers versatile mounting options with an M18 threaded mount and operates effectively within an ambient air temperature range of -20 to +55°C. It boasts a high degree of protection, rated at IP67 and compliant with multiple NEMA standards including 1, 2, 3, 3S, 4, 4X, 6, 12, and 13. The sensor's rectangular shape is designed for a sensing distance of up to 3m, utilizing infrared (IR) light with a wavelength of 880 nm and a quick response time of 20ms / 0.02 s. It supports both Light-ON and Dark-ON operating modes.
