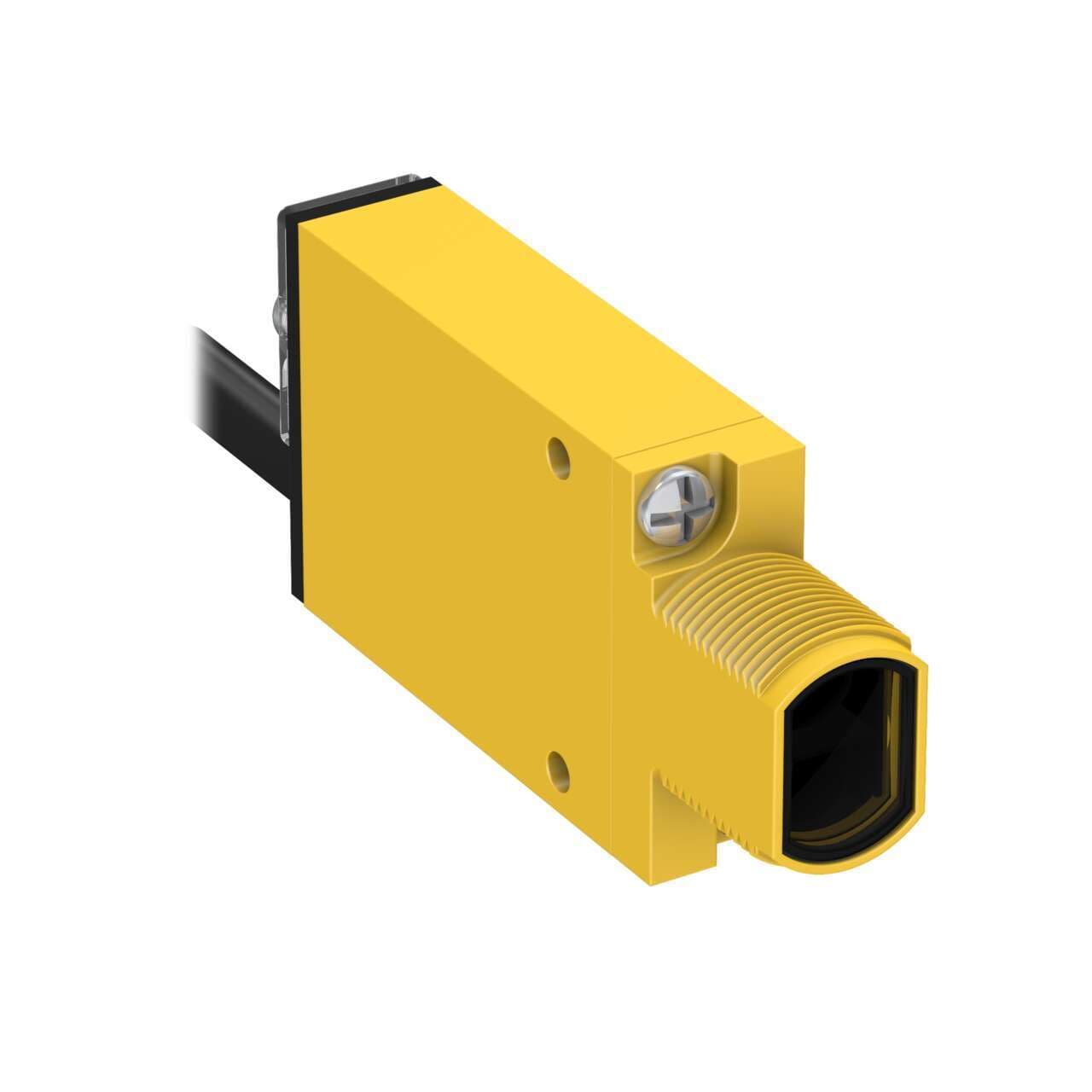

SMU315LVQDP Banner Proximity Sensors
Part#:SMU315LVQDP
Alt. Part#:67931
Manufacturer:Banner
Category:Proximity Sensors
Product Lifecycle:Active
Product description
SMU315LVQDP 6 in 5-PIN MICRO VISIBLE RED RETROREFLECTIVE
Product Details
- Weight 117.93392 g
- Country Of Origin US
- Supply voltage (AC) 24Vac-240Vac (200Vac / 220Vac nom.)
- Digital outputs 1 x digital output (SPDT contact type)
- Sub-range name SMU315 univeral voltage
- Thread size M18
- Connection type Pre-wired with 6" / 150mm pigtail terminated with 5-pin 1/2" Micro connector
- Degree of protection IP67 NEMA 1 NEMA 2 NEMA 3 NEMA 3S NEMA 4 NEMA 4X NEMA 6 NEMA 12 NEMA 13
- Product series / family name MINI-BEAM series
- Supply voltage (DC) 24Vdc-240Vdc (48Vdc / 120Vdc nom.)
- Wavelength 650 nm
- Operating mode Light-ON Dark-ON
- Material thermoplastic housing
- Primary brand Banner Engineering
- Functions Photo-electric sensor red LED (power ON) potentiometer adjustment
- Shape Rectangular
- Mounting mode Threaded mount
- Ambient air temperature for operation -20...+55 °C
- Main function Sensor (Photo-electric)
- Design retro-reflective mode
- Sensing distance 5m
- Light Color Visible red
- Response time 20ms / 0.02 s
- Order code / Manufacturer SKU 67931
- Primary Housing Material Thermoplastic
- Max Op. Temp. (°C) 55
- IP Rating IP67
- Feature: Timing (Hold/Delay) No
- Indicator LEDs
- DeviceNet No
- Sensing Beam Visible Red LED
- Power Supply/Supply Voltage 24-240 V ac/dc
- Special Feature: Remote Teach No
- Repeatability (µs) N/A
- Adjustments Potentiometer
- Operation Light/Dark Operate
- Special Feature: Water Detection No
- Sensing Mode (Detailed) Non-Polarized
- Delay at Power-up (ms) N/A
- Feature: Hazardous Area No
- Housing Style Rectangular w/M18 Mount
- Min Op. Temp. (°C) -20
- Lens Material Acrylic
- Feature: Encapsulated No
- Input/Output E/M Relay
- Output response time (ms) 20
- Sensing Mode (General) Retroreflective
- Special Feature: Intrinsically Safe No
- NEMA Rating NEMA 1, 2, 3, 3S, 4, 4X, 6, 12, 13
- Feature: Audible No
- Power AC/DC Universal
- Max Op. Relative Humidity [%] 90% @ 50°C
- IO Link No
- Max Sensing Distance (mm) 5000
- Quick Disconnect Type 1/2 in. (Micro)
- Number of Pins 5
- Barrel Diameter (mm) 18
- Outputs SPDT e/m Relay
- Connection Pigtail QD
- Sensing Beam Wavelength 650
- Opposed Mode Emitter/Receiver N/A
- Feature: Chemical Resistant No
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of SMU315LVQDP on Powermatic Associates is $226.00. Order now.
About the product
Banner Engineering SMU315LVQDP is a photo-electric sensor from the SMU315 universal voltage series, designed in a retro-reflective mode with potentiometer adjustment. This sensor features a thermoplastic housing and is pre-wired with a 6" / 150mm pigtail terminated with a 5-pin 1/2" micro connector. It supports a supply voltage range of 24Vac-240Vac (200Vac / 220Vac nom.) and 24Vdc-240Vdc (48Vdc / 120Vdc / 220Vdc nom.), making it versatile for various power supplies. The SMU315LVQDP offers an M18 threaded mount for installation and operates within an ambient air temperature range of -20 to +55°C. It is equipped with a high degree of protection, rated at IP67, NEMA 1, 2, 3, 3S, 4, 4X, 6, 12, and 13, ensuring durability in diverse environments. The sensor has a rectangular shape, includes 1 x digital output (SPDT rly. contact), and provides a sensing distance of up to 5m. It emits visible red light with a wavelength of 650 nm and features a quick response time of 20ms / 0.02 s. The operating modes include Light-ON and Dark-ON, offering flexibility for different application requirements.
