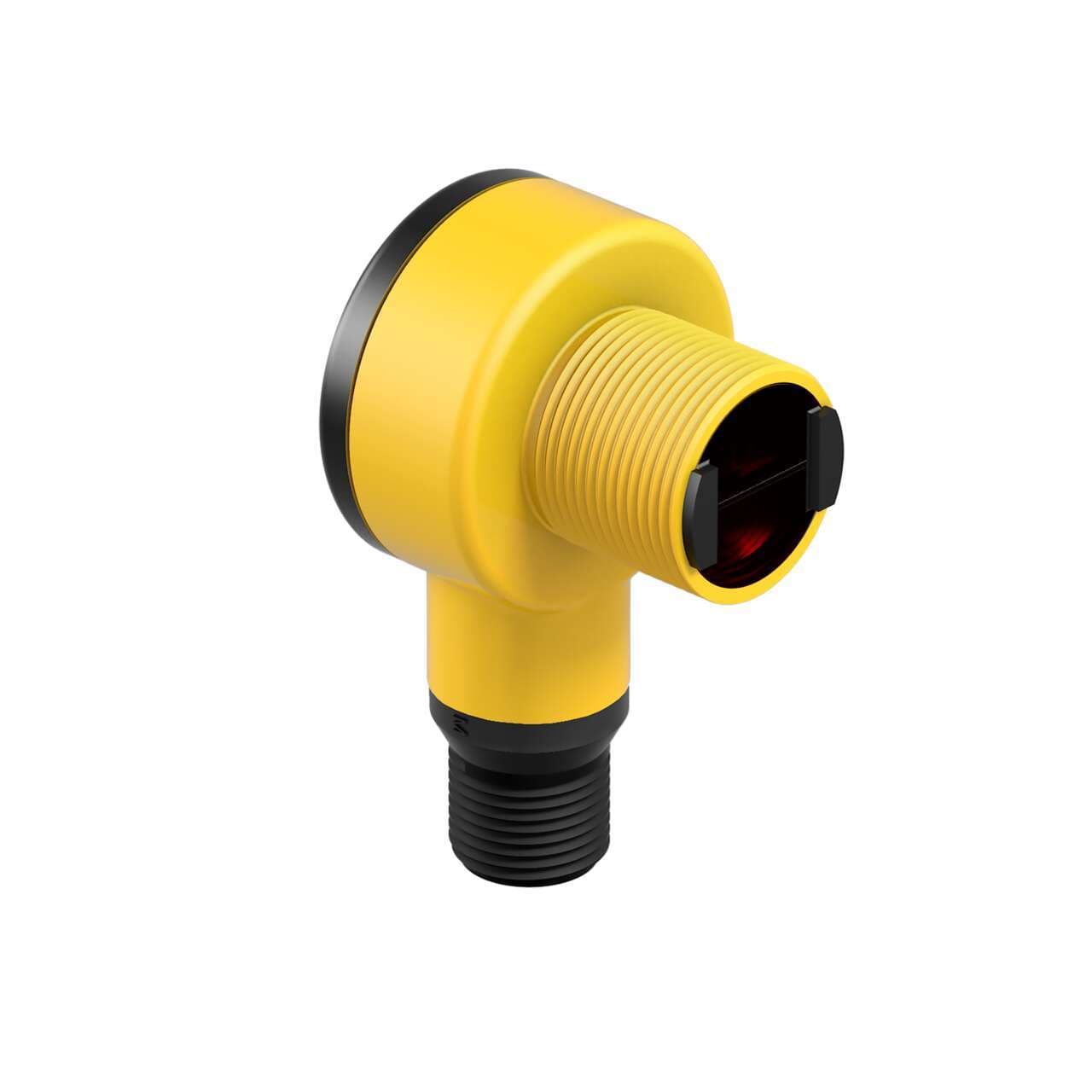

T18S2P6FF25Q Banner Proximity Sensors
Part#:T18S2P6FF25Q
Alt. Part#:58397
Manufacturer:Banner
Category:Proximity Sensors
Product Lifecycle:Active
Product description
EZ-BEAM T18 Series: Fixed Field; Range: 25 mm; Input: 10-30 V dc; Output: PNP - Light Operate; 4-pin M12 Integral QD
Product Details
- Weight 54.43104 g
- Country Of Origin US
- Main function Sensor (Photo-electric)
- Wavelength 880 nm
- Thread size M18
- Material thermoplastic housing Acrylic lns.
- Order code / Manufacturer SKU 58397
- Product series / family name EZ-BEAM series
- Supply voltage (DC) 10Vdc-30Vdc (12Vdc / 24Vdc nom.)
- Shape Cylindrical smooth
- Digital outputs 1 x digital output (PNP transistor)
- Compliant with standard(s) cULus CSA CE
- Design background suppression system
- Connection type Pre-equipped with 4-pin Euro-style M12 connector
- Response time 3ms / 0.003 s
- Primary brand Banner Engineering
- Functions Fixed-field photo-electric sensor green LED (power ON) amber LED (output state)
- Light Color Infrared (IR)
- Operating mode Light-ON NO (Normally Open)
- Ambient air temperature for operation -40...+70 °C
- Sub-range name T18 series
- Sensing distance 25mm
- Mounting mode Threaded mount
- Degree of protection IP67 IP69K NEMA 6P
- Housing Style Barrel
- Max Op. Temp. (°C) 70
- Repeatability (µs) 750
- Feature: Hazardous Area No
- Power DC
- Operation Light Operate
- Delay at Power-up (ms) 100
- NEMA Rating NEMA 6P
- IO Link No
- Sensing Beam Infrared LED
- Power Supply/Supply Voltage 10-30 V dc
- Special Feature: Water Detection No
- Indicator LEDs
- DeviceNet No
- Sensing Mode (Detailed) Background Suppression (Fixed)
- Special Feature: Intrinsically Safe No
- Adjustments N/A
- Primary Housing Material Thermoplastic
- Output response time (ms) 3
- Lens Material Acrylic
- Opposed Mode Emitter/Receiver N/A
- Outputs PNP
- IP Rating IP67, IP69
- Special Feature: Remote Teach No
- Feature: Ecolab Certified Yes
- Input/Output Discrete
- Min Op. Temp. (°C) -40
- Number of Pins 4
- Feature: Encapsulated Yes
- Sensing Mode (General) Proximity
- Connection Integral QD
- Barrel Diameter (mm) 18
- Feature: Washdown Rated Yes
- Max Sensing Distance (mm) 25
- Quick Disconnect Type M12 (Euro)
- Max Op. Relative Humidity [%] 90% @ 50°C
- Feature: Timing (Hold/Delay) No
- Feature: Audible No
- Feature: Health/ Marginal Signal Output Yes
- Feature: Chemical Resistant Yes
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of T18S2P6FF25Q on Powermatic Associates is $173.00. Order now.
About the product
Banner Engineering T18S2P6FF25Q is a fixed-field photo-electric sensor within the T18 series, featuring a background suppression system. This sensor is housed in thermoplastic with an acrylic lens and is designed for threaded mount installation. It comes pre-equipped with a 4-pin Euro-style M12 connector for connectivity. The sensor operates on a supply voltage range of 10Vdc to 30Vdc, with nominal voltages of 12Vdc and 24Vdc. It is capable of functioning within an ambient air temperature range of -40 to +70°C and offers a degree of protection rated at IP67, IP69K, and NEMA 6P, ensuring durability in various environmental conditions. The sensor's shape is an M18 cylindrical threaded/barrel, and it features a single digital output (PNP transistor). It has a sensing distance of 25mm and utilizes infrared (IR) light with a wavelength of 880 nm. The response time is quick at 3ms / 0.003 s, and it operates in Light-ON NO (Normally Open) mode.
