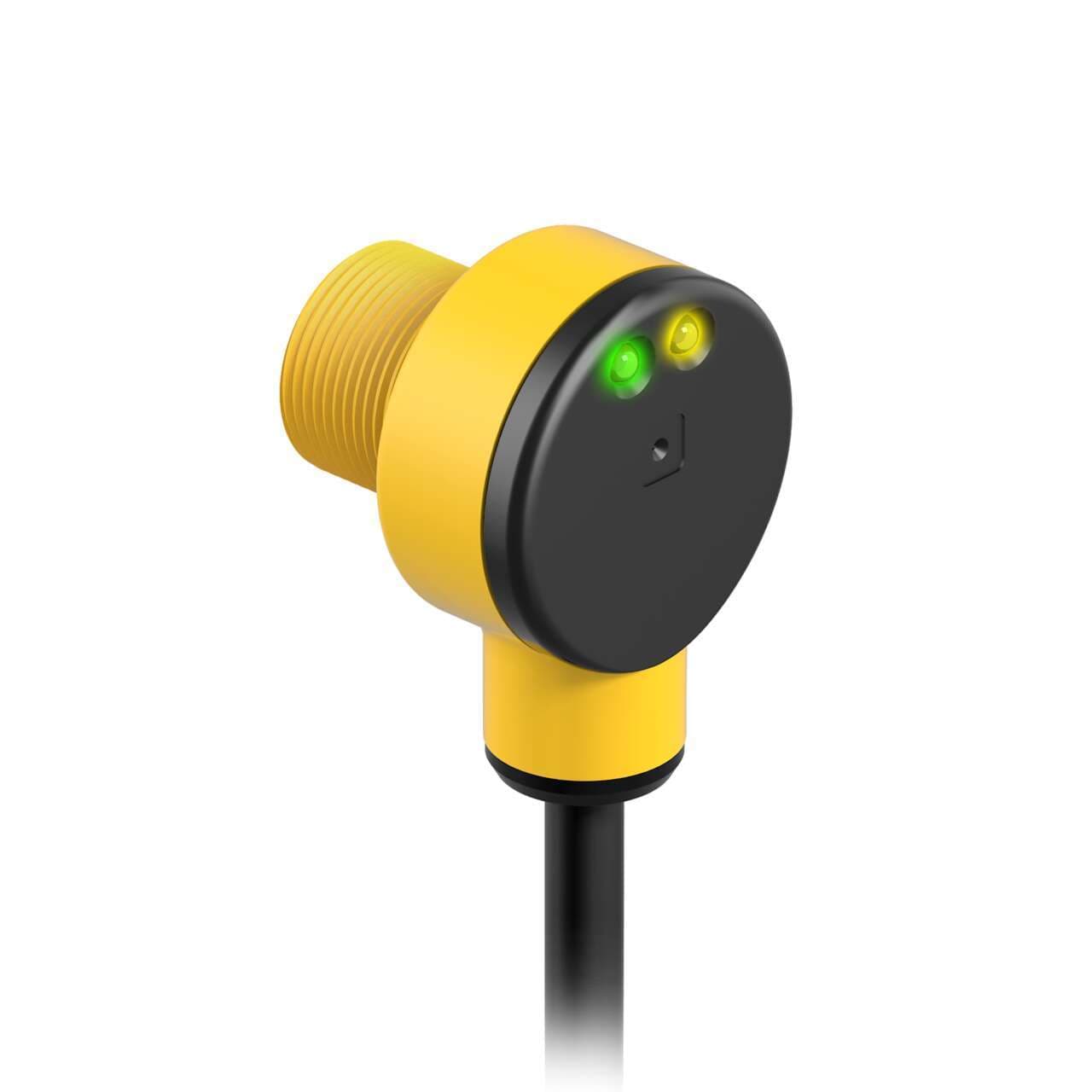

T18SN6LPM5V Banner Proximity Sensors
Part#:T18SN6LPM5V
Alt. Part#:43095
Manufacturer:Banner
Category:Proximity Sensors
Product Lifecycle:Active
Product description
EZ-BEAM T18 Series: Threaded R-Angle Polar Retro; Range: 2 m; Input: 5 V dc (Lit 43417); Output:NPN; M12 Integral QD
Product Details
- Weight 145.14944 g
- Country Of Origin US
- Power DC
- Min Op. Temp. (°C) -40
- Max Op. Relative Humidity [%] 90% @ 50°C
- Feature: Ecolab Certified Yes
- Primary Housing Material Thermoplastic
- Output response time (ms) 3
- Sensing Beam Visible Red LED
- Operation Light/Dark Operate
- Number of Pins 4
- Feature: Washdown Rated Yes
- Cable Length (m) 2
- Power Supply/Supply Voltage 5 V dc
- Delay at Power-up (ms) 100
- Indicator LEDs
- DeviceNet No
- Housing Style Barrel
- Connection Cable
- Lens Material Acrylic
- Feature: Encapsulated Yes
- Max Sensing Distance (mm) 2000
- Special Feature: Remote Teach No
- Barrel Diameter (mm) 18
- Feature: Health/ Marginal Signal Output Yes
- Input/Output Discrete
- Special Feature: Intrinsically Safe No
- Adjustments N/A
- Feature: Audible No
- Sensing Mode (Detailed) Polarized
- Max Op. Temp. (°C) 70
- Repeatability (µs) 750
- Feature: Hazardous Area No
- IO Link No
- Outputs NPN
- Special Feature: Water Detection No
- Feature: Chemical Resistant Yes
- Sensing Mode (General) Retroreflective
- Quick Disconnect Type No QD
- NEMA Rating NEMA 6P
- Opposed Mode Emitter/Receiver N/A
- IP Rating IP67, IP69
- Feature: Timing (Hold/Delay) No
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of T18SN6LPM5V on Powermatic Associates is $132.00. Order now.
About the product
Banner Engineering T18SN6LPM5V is a polarized photo-electric sensor from the T18 series, designed in a retro-reflective mode. This sensor features a thermoplastic housing with an acrylic lens and is pre-wired with a 6.5ft / 2m cable terminated with bare end flying leads. It operates on a 5Vdc supply voltage and is mounted using a threaded mount. The T18SN6LPM5V can operate in ambient air temperatures ranging from -40 to +70°C and offers a degree of protection rated at IP67, IP69K, and NEMA 6P. Its shape is an M18 cylindrical threaded/barrel, and it includes 1 x digital output (NPN transistor) with a sensing distance of 2m. The sensor emits visible red light with a wavelength of 680 nm and has a response time of 3ms / 0.003 s. It supports both Light-ON and Dark-ON operating modes.
