TTR891APSC7D-2.0RJ-CTR Banner Safety Light Curtains

Name: TTR891APSC7D-2.0RJ-CTR
Brand: Banner
Price: 267 USD
Availability: BackOrder

TTR891APSC7D-2.0RJ-CTR on Powermatic Associates

Part#:TTR891APSC7D-2.0RJ-CTR

Alt. Part#:809747

Manufacturer:Banner

Category:Safety Light Curtains

Product Lifecycle:Active

Product description

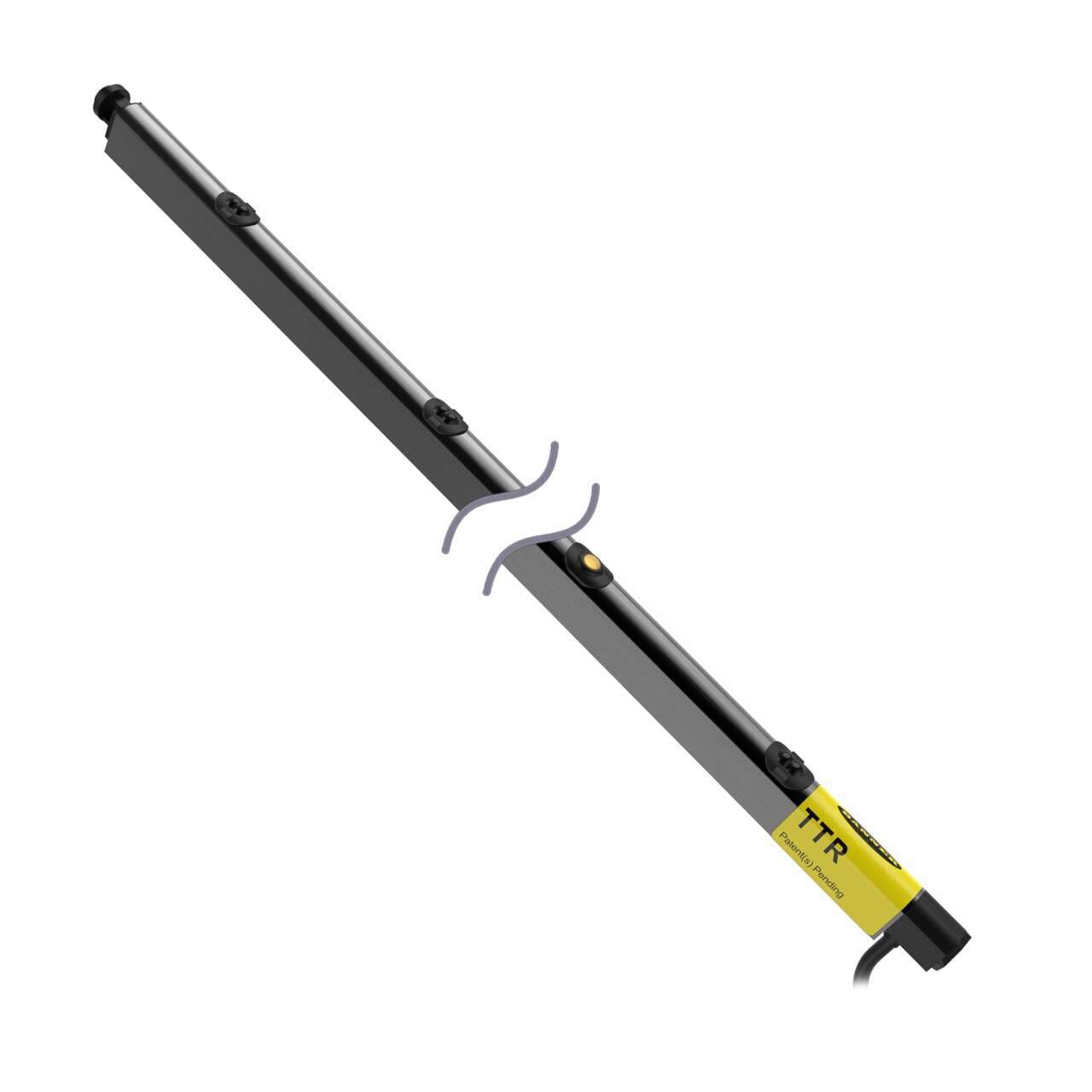

TTR Series 7 Beam Sensor Array 35.07 in Between Frame; Beam Spacing: 108 mm; Range: 120 mm Diffuse; Output: LO PNP; Input: 18-30 V dc; 2 m (6.5 ft) RJ11 Conn. Endcap D: Flat Up / Round

Product Details

Weight
430.9124 g
Country Of Origin
MX
Output response time (ms)
1
Max Sensing Range (mm)
120
Primary Housing Material
Black Anodized Aluminum
Delay at Power-up (ms)
1500
Beam to Beam Spacing [mm]
108
Power
DC
Slot Overall Depth (mm)
19
Max Op. Temperature (°C)
55
Sensing Mode (Detailed)
Diffuse
Quick Disconnect Type
RJ11
Number of Pins
4
Housing Style
Roller Conveyor
Max Op. Relative Humidity (%)
95% @ 55°C
Power Supply/Supply Voltage
18-30 V dc
Lens Material
Polycarbonate
Distance to First Beam [mm]
121.5

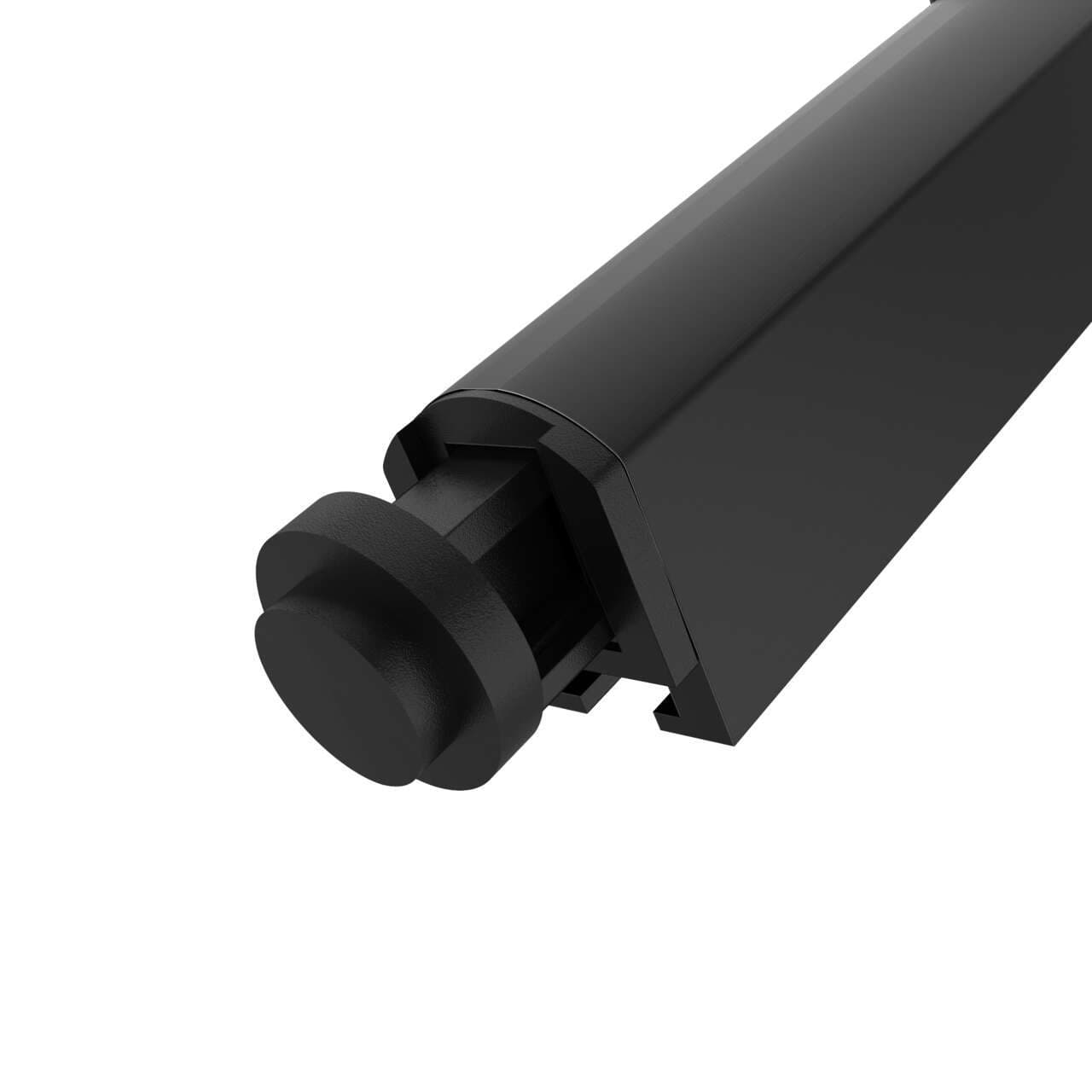

End Cap Type
D: Hex Flat Up / Spring 8 mm Round
Indicator
Indicator LEDs

Number of Beams

Connection

Pigtail QD

Cable Length (m)

NEMA Rating

N/A

Slot Depth/Array Length (mm)

891

Outputs

PNP

IP Rating

IP50

Adjustments

N/A

Min Op. Temperature (°C)

-10

Operation

Light Operate

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of TTR891APSC7D-2.0RJ-CTR on Powermatic Associates is $267.00. Order now.

About the product

Banner Engineering TTR891APSC7D-2.0RJ-CTR is a sensor array designed with a diffuse mode featuring 7 beams. This part is pre-wired with a 2-meter pigtail terminated with an RJ11 connector. It has an array length of 891mm and operates on a supply voltage range of 18Vdc to 30Vdc, with a nominal voltage of 24Vdc. The ambient air temperature suitable for its operation ranges from -10 to +70 degrees Celsius. It offers a degree of protection rated at IP50 and comes in a rectangular shape. The distance between beams, or beam spacing/pitch, is 108mm. It includes 1 x digital output (PNP transistor) and has a sensing distance of 120mm. The light color emitted is infrared (IR) with a wavelength of 940 nm.

TTR891APSC7D-2.0RJ-CTR Related Documents

216696.pdf
