8502SEO3V02S Schneider Electric Electronic Components

8502SEO3V02S on Powermatic Associates
Schneider Electric

Part#:8502SEO3V02S

Manufacturer:Schneider Electric

Category:Electronic Components

Product Lifecycle:Active

Product description

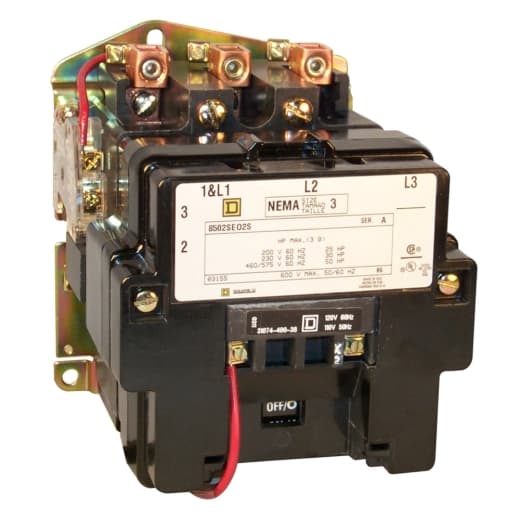

NEMA Contactor, Type S, nonreversing, Size 3, 90A, 50 HP at 575 VAC, 3 phase, up to 100 kA, 4 pole, 120 VAC coil, open

Product Details

  • Maximum Voltage Rating
    600 V AC
  • Control Units
    No control units
  • Phase
    3 phase
  • Height
    7.88 in (200.15 mm)
  • Product Range
    8502S
  • Depth
    6.50 in (165.10 mm)
  • Number Of Poles
    4P
  • Auxiliary Contacts
    Without
  • Product Type
    Contactor
  • Terminal Type
    Screw clamp terminals
  • NEMA Size
    3
  • Control Circuit Type
    Separate control circuit
  • Rated Current
    90 A
  • Other Equipment
    Fuse not supplied
  • Width
    9.75 in (247.65 mm)
  • Contactor Type
    Non-reversing
  • Pilot Light
    No indicator
  • Coil Voltage
    120 V AC 60 Hz 110 V AC 50 Hz
  • Horsepower Rating
    25 HP 200 V AC 30 HP 230 V AC 50 HP 460 V AC 50 HP 575 V AC
  • SCCR
    Circuit-breaker 150 A maximum, SCCR: 100 kA at 480 V AC Fuse J 200 A maximum, SCCR: 100 kA at 600 V AC Fuse T 200 A maximum, SCCR: 100 kA at 600 V AC Fuse RK1 200 A maximum, SCCR: 100 kA at 600 V AC Fuse RK5 200 A maximum, SCCR: 100 kA

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of 8502SEO3V02S on Powermatic Associates is $1,823.00. Order now.

8502SEO3V02S Related Documents

Catalog-1631039251675.pdfInstruction Sheet-1631039251679.pdfProduct Datasheet-1631039251645.pdf

Similar products from: Schneider Electric Electronic Components

QOB330GFI5237 on Powermatic Associates

QOB330GFI5237

Schneider Electric

Square D by Schneider Electric QOB330GFI5237 is a Ground Fault Interrupter (GFI) Miniature Circuit Breaker (MCB) designed for bolt-on mounting. It features a rated current of 30A and a bolt-on connection type. This MCB operates at a rated voltage of 208 V AC and accommodates a wire cross-section of 14-8AWG for one copper cable. It is a 3 Pole device with a residual current sensitivity of 6mA / 0.006. The QOB330GFI5237 offers ground fault protection and has a short circuit breaking rating of 10kA at both 120Vac and 208Vac. It is equipped with ring tongue type terminals.

6 in stock
LC1F225L7 on Powermatic Associates

LC1F225L7

Schneider Electric

Schneider Electric LC1F225L7 is a high-power magnetic contactor within the F sub-range, designed for surface mounting. It features a 3-pole (3P; 3NO) configuration with ring-lugs/bar connections. The contactor is rated for currents of 315A under AC-1 conditions and 225A at 440Vac under AC-3 conditions. It operates with a control voltage range of 177-228Vac (208Vac nominal; 40-400Hz; 0.85...1.1 x Uc) and has a rated operating voltage (Ue) of 1000 V. This model comes without normally open (NO) or normally closed (NC) auxiliary contacts. It is capable of handling rated impulse voltages (Uimp) up to 8 kV and supports rated active power (kW) of 63kW at 220-230Vac, 110kW at 380-400Vac, 415Vac, and 440Vac, 129kW at 500Vac and 660-690Vac, and 100kW at 1000Vac, all under AC-3 conditions. The LC1F225L7 boasts a mechanical durability of 10 million operations at no load and is designed for phase-to-phase rated voltages (AC) up to 1000 V.

1 in stock
H361 on Powermatic Associates

H361

Schneider Electric

Schneider Electric H361 is a switch-disconnector that falls under the Safety Switches (Heavy Duty) sub-range, specifically designed as a General Duty Single Throw Safety Switch (Fused). It features 3 poles and is rated for a current of 30 A. The dimensions of this part are a net height of 371 mm, a net width of 165 mm, and a net depth of 124 mm. It operates via a toggle mechanism. The H361 has a short circuit breaking rating of 10kA maximum with fuse types H or K and can reach up to 200kA maximum with fuse types R, J, or L. It is equipped with lug type terminals and is designed to handle a rated voltage (AC) of 600 V phase-to-phase.

0 in stock
M9U31110 on Powermatic Associates

M9U31110

Schneider Electric

Schneider Electric M9U31110 is a Miniature Circuit Breaker (MCB) designed specifically for DC loads, falling under the C60H-DC sub-range. It features a single pole configuration and is rated for a current of 10A with a maximum voltage capacity of 500Vdc. This MCB is compliant with UL1077 standards, ensuring its suitability for a variety of applications. It offers a short circuit breaking rating of 5kA AIR at 250Vdc. The M9U31110 is equipped with a D tripping curve, ensuring precise protection for connected circuits by targeting the specific characteristics of DC loads.

1 in stock
BJF36035 on Powermatic Associates

BJF36035

Schneider Electric

Square D by Schneider Electric BJF36035 is a Moulded Case Circuit Breaker (MCCB) within the PowerPacT BJF sub-range. It features a PowerPact B-Frame 100 TMD 3P-3t design, with a rated current of 35A and a rated voltage of 600Vac 600Y/347Vac. The breaker is designed for a fixed busbar connection with a term. nut kit on both line and load sides, offering a degree of protection of IP40. It has a mechanical durability of 15,000 operations and can be mounted on a DIN rail or as an individual unit on a plate. This 3-pole (3P) device has dimensions of 137 mm in height, 80 mm in depth, and 81 mm in width. It operates within Utilisation category A and has protection settings for over-current fixed at 35A, short-circuit hold current fixed at 400A, and short-circuit trip current fixed at 600A. The rated impulse voltage (Uimp) is 8 kV, with a rated insulation voltage (Ui) of 800 V and a rated operating voltage (Ue) of 690 V. It provides thermal and magnetic protection functions, with a trip current rating of 35 AT and an electrical durability of 10,000 operations at 440Vac. The frame current rating is 100 AF, and it operates via a toggle (manual) mode. The short circuit breaking rating varies by voltage, with 100kA at 240Vac, 65kA at 480Vac and 480Y/277Vac, 25kA at 600Y/347Vac, and 50kA at 250Vdc, all according to UL489 standards. The trip unit type is thermal-magnetic (fixed) without a display.

7 in stock
LC1F400P7 on Powermatic Associates

LC1F400P7

Schneider Electric

Schneider Electric LC1F400P7 is a high-power magnetic contactor within the F sub-range, designed for surface mounting. It features ring-lugs/bar connections and is equipped with 3 poles (3P; 3NO). The contactor is rated for currents of 500A under AC-1 conditions and 400A at 440Vac under AC-3 conditions. The control voltage (AC) specifications are 196-253Vac (230Vac nominal; 40-400Hz; 0.85...1.1 x Uc), with a rated operating voltage (Ue) of 1000 V and a rated impulse voltage (Uimp) of 8 kV. It has no normally open (NO) or normally closed (NC) auxiliary contacts. The rated active power ranges from 110kW at 220-230Vac to 280kW at 660-690Vac under AC-3 conditions, with a mechanical durability of 10,000,000 operations at no load. The rated voltage (AC) phase-to-phase is 1000 V.

2 in stock

Manufacturer warranty

8502SEO3V02S Schneider Electric

$1,823.00

Your price can be lower.
Log in or Create account to check your discount

Select Qty:

$1,823.00

$1,823.00 each

Average response time: 11 minutes

Worldwide Shipping and Delivery

Secure Payment Processing

Warranty

Responsive Customer Support

Got Questions? We've Got Answers!

Need more details?

Feel free to chat with us

Compare 8502SEO3V02S with other Electronic Components products

Maximum Voltage Rating

Control Units

Phase

Height

Product Range

Depth

Number Of Poles

Auxiliary Contacts

Product Type

Terminal Type

Selected product

8502SEO3V02S
Backordered
8502SEO3V02S
Schneider Electric

NEMA Contactor, Type S, nonreversing, Size 3, 90A, 50 HP at 575 VAC, 3 phase, up to 100 kA, 4 pole, ...

Maximum Voltage Rating600 V AC

Control UnitsNo control units

Phase3 phase

Height7.88 in (200.15 mm)

Product Range8502S

Depth6.50 in (165.10 mm)

Number Of Poles4P

Auxiliary ContactsWithout

Product TypeContactor

Terminal TypeScrew clamp terminals

H361
Backordered
H361
Schneider Electric

Schneider Electric H361 is a switch-disconnector that falls under the Safety Switches (Heavy Duty) s...

Maximum Voltage Rating-

Control Units-

Phase3 phase

Height-

Product Range-

Depth-

Number Of Poles3

Auxiliary Contacts-

Product Type-

Terminal Type-

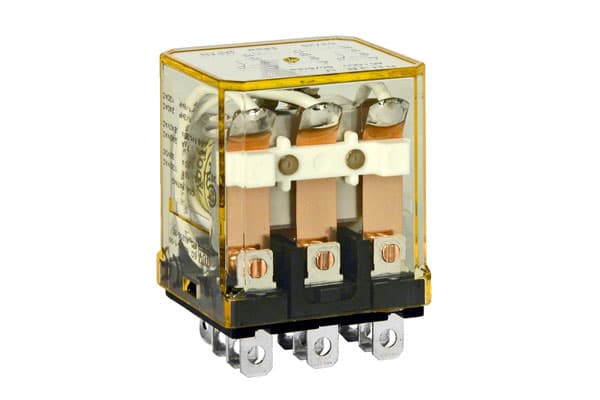

RH3B-ULCDC24V
