8536SAO12V02H318S Schneider Electric Electronic Components

8536SAO12V02H318S on Powermatic Associates
Schneider Electric

Part#:8536SAO12V02H318S

Manufacturer:Schneider Electric

Category:Electronic Components

Product Lifecycle:Active

Product description

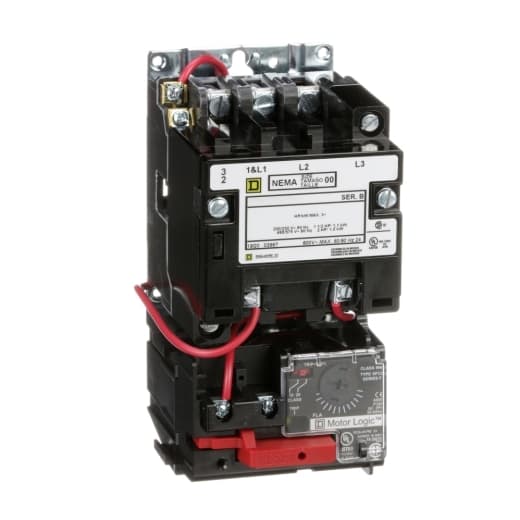

NEMA Motor Starter, Type S, nonreversing, Size 00, 9A, 2 HP at 460 VAC, up to 100 kA SCCR, 3 phase, 3 pole, Motor Logic, 120 VAC coil, open

Product Details

  • Control Units
    No control units
  • Maximum Voltage Rating
    600 V AC
  • Type Of Overload
    Solid state Motor Logic class 10/20
  • Product Range
    S
  • Product Type
    Motor starter
  • Height
    6.81 in (172.96 mm)
  • Starter Type
    Non reversing
  • Terminal Type
    Screw clamp terminals
  • Number Of Poles
    3P
  • Auxiliary Contacts
    Without
  • Phase
    3 phase
  • Pilot Light
    Without pilot light
  • Depth
    4.22 in (107.19 mm)
  • Rated Current
    9 A
  • Control Circuit Type
    Separate control circuit
  • NEMA Size
    00
  • Width
    3.50 in (88.90 mm)
  • Coil Voltage
    110 V AC 50 Hz 120 V AC 60 Hz
  • Horsepower Rating
    1.5 HP 200 V AC 1.5 HP 230 V AC 2 HP 460 V AC 2 HP 575 V AC
  • SCCR
    Circuit-breaker 70 A maximum: 100 kA at 480 V AC Fuse J 60 A maximum: 100 kA at 600 V AC Fuse T 60 A maximum: 100 kA at 600 V AC Fuse RK1 60 A maximum: 100 kA at 600 V AC Fuse RK5 60 A maximum: 100 kA at 600 V AC

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of 8536SAO12V02H318S on Powermatic Associates is $534.50. Order now.

8536SAO12V02H318S Related Documents

Product Datasheet-1631037969587.pdfCatalog-1631037969592.pdfInstruction Sheet-1631037969597.pdf
