8536SCG3V06A Schneider Electric Electronic Components

8536SCG3V06A on Powermatic Associates
Schneider Electric

Part#:8536SCG3V06A

Manufacturer:Schneider Electric

Category:Electronic Components

Product Lifecycle:Active

Product description

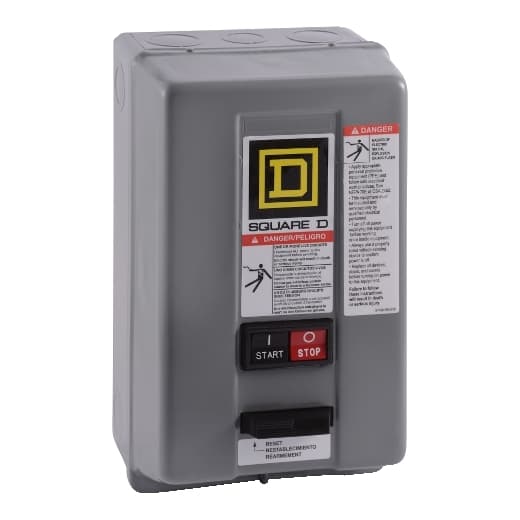

NEMA Motor Starter, Type S, nonreversing, Size 1, 27A, 10 HP at 460 VAC, 5 kA SCCR, 3 phase, 3 pole, melting alloy, 480 VAC coil, NEMA 1

Product Details

  • NEMA Size
    1
  • Auxiliary Contacts
    Without
  • Starter Type
    Non reversing
  • Rated Current
    27 A
  • Pilot Light
    Without pilot light
  • Type Of Overload
    Melting alloy 3
  • Product Type
    Motor starter
  • Phase
    3 phase
  • Control Units
    2 momentary push-buttons (START-STOP)
  • Number Of Poles
    3P
  • Control Circuit Type
    Common control circuit
  • Height
    10.00 in (254.00 mm)
  • Maximum Voltage Rating
    600 V AC
  • Terminal Type
    Screw clamp terminals
  • Product Range
    S
  • Depth
    5.56 in (141.22 mm)
  • Width
    6.00 in (152.40 mm)
  • Coil Voltage
    440 V AC 50 Hz 480 V AC 60 Hz
  • SCCR
    Circuit-breaker: 5 kA at 600 V AC Fuse: 5 kA at 600 V AC
  • Horsepower Rating
    7.5 HP 200 V AC 7.5 HP 230 V AC 10 HP 460 V AC 10 HP 575 V AC

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of 8536SCG3V06A on Powermatic Associates is $926.00. Order now.
