8536SDA1V03A Schneider Electric Electronic Components

8536SDA1V03A on Powermatic Associates
Schneider Electric

Part#:8536SDA1V03A

Manufacturer:Schneider Electric

Category:Electronic Components

Product Lifecycle:Active

Product description

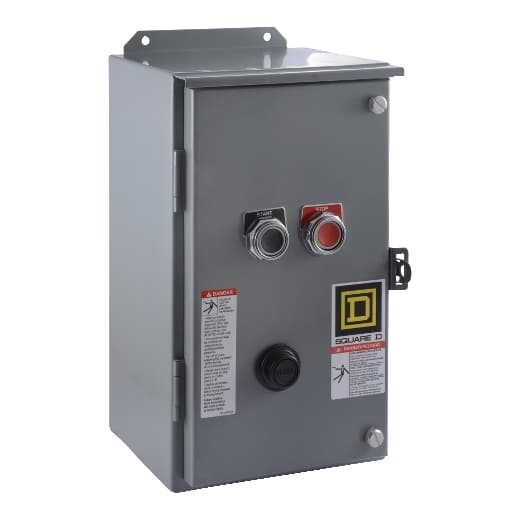

NEMA Motor Starter, Type S, nonreversing, Size 2, 45A, 25 HP at 460 VAC, 5 kA SCCR, 3 phase, 3 pole, melting alloy, 240 VAC coil, NEMA 12

Product Details

  • Horsepower Rating
    10 HP 200 V AC 15 HP 230 V AC 25 HP 460 V AC 25 HP 575 V AC
  • SCCR
    Circuit-breaker: 5 kA at 600 V AC Fuse: 5 kA at 600 V AC
  • Coil Voltage
    220 V AC 50 Hz 240 V AC 60 Hz
  • Depth
    9.28 in (235.71 mm)
  • Width
    8.13 in (206.50 mm)
  • Height
    16.00 in (406.40 mm)
  • Terminal Type
    Screw clamp terminals
  • Auxiliary Contacts
    Without
  • Control Units
    2 momentary push-buttons (START-STOP)
  • Pilot Light
    Without pilot light
  • Control Circuit Type
    Common control circuit
  • Product Range
    S
  • Starter Type
    Non reversing
  • Type Of Overload
    Melting alloy 3
  • Maximum Voltage Rating
    600 V AC
  • Phase
    3 phase
  • Rated Current
    45 A
  • Number Of Poles
    3P
  • NEMA Size
    2
  • Product Type
    Motor starter

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of 8536SDA1V03A on Powermatic Associates is $1,808.00. Order now.
