8903LO60V03 Schneider Electric Electronic Components

8903LO60V03 on Powermatic Associates
Schneider Electric

Part#:8903LO60V03

Manufacturer:Schneider Electric

Category:Electronic Components

Product Lifecycle:Active

Product description

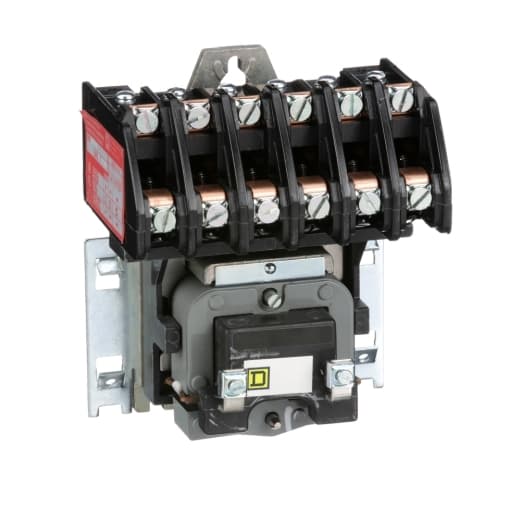

8903L electrically held lighting contactor, 6 P, 6 NO, 30 A, 600 V, 220/240 V 50

Product Details

  • Width
    4.25 in (108 mm)
  • Control Circuit
    Separate control circuit
  • Product Or Component Type
    Electrically Held Lighting Contactor
  • Depth
    3.11 in (79 mm)
  • Range Of Product
    8903L
  • Electrical Connection
    Screw-clamp terminals
  • Number Of Poles
    6P 6 NO
  • Control Unit
    No control units
  • Height
    5.00 in (127 mm)
  • Pilot Light
    No indicator
  • Current Rating
    20 A tungsten 30 A fluorescent
  • Inrush Power In VA
    150 VA 60 Hz 25 VA 50 Hz
  • Control Circuit Voltage
    220 V AC 50 Hz 240 V AC 60 Hz
  • Hold-In Power Consumption In VA
    30 VA 60 Hz 30 VA 50 Hz

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of 8903LO60V03 on Powermatic Associates is $932.50. Order now.

8903LO60V03 Related Documents

Catalog-1631037616362.pdfProduct Datasheet-1631037616360.pdf
