9421LF1 Schneider Electric Electronic Components

9421LF1 on Powermatic Associates
Schneider Electric

Part#:9421LF1

Manufacturer:Schneider Electric

Category:Electronic Components

Product Lifecycle:Active

Product description

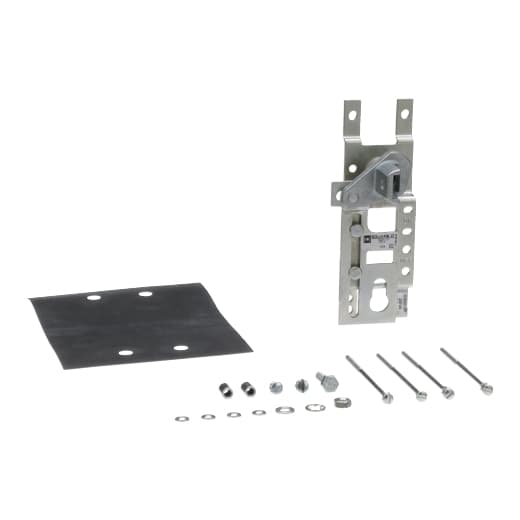

OPERATING MECHANISM 600VAC 100AMP NEMA

Product Details

  • Range
    9421L
  • Product
    Operating Mechanism
  • Circuit Breaker Type
    FAL/FCL/FHL 100 A

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of 9421LF1 on Powermatic Associates is $130.63. Order now.

9421LF1 Related Documents

Instruction Sheet-1631036251750.pdfCatalog-1631036251756.pdfProduct Datasheet-1631036251758.pdf
