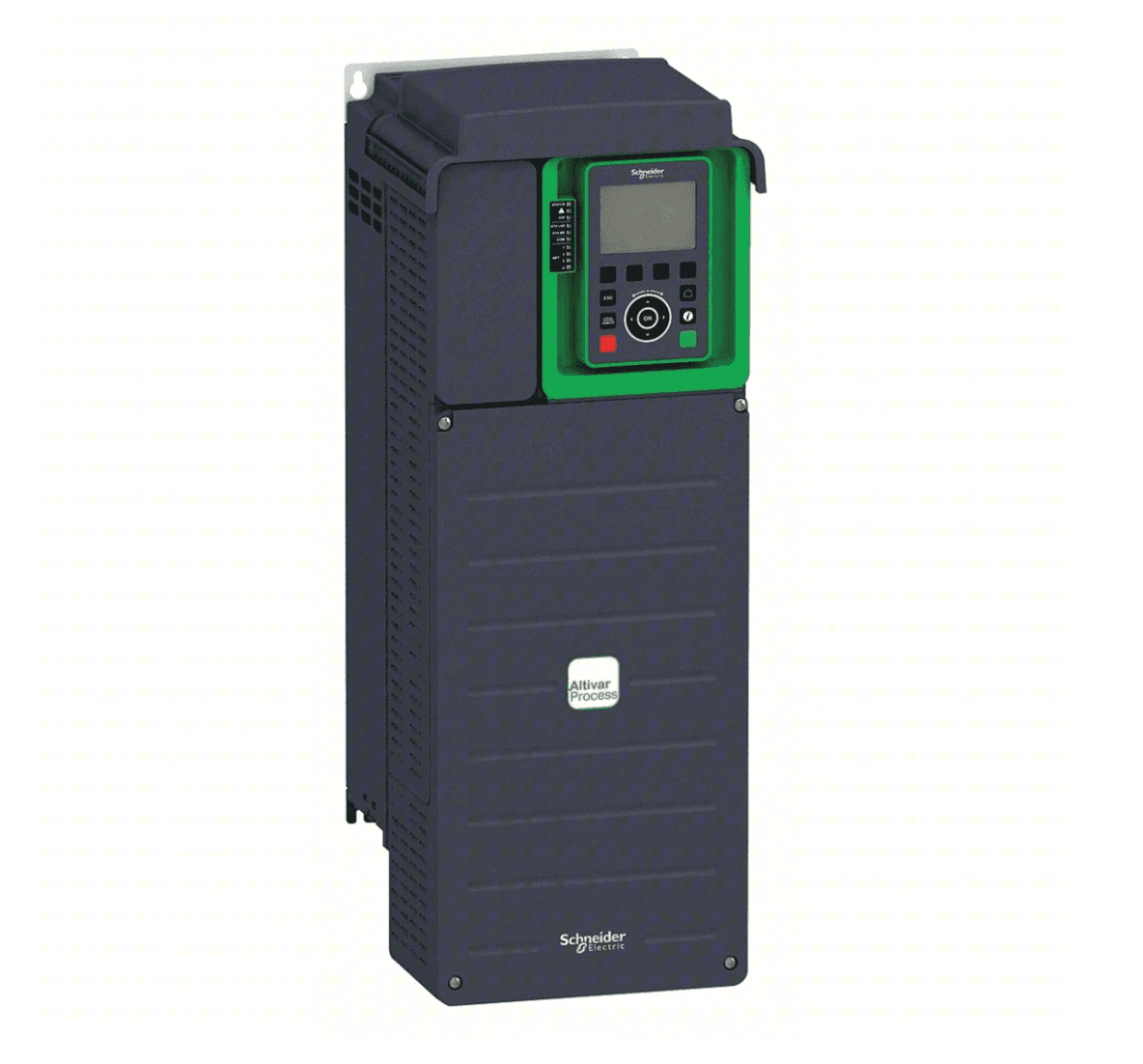

ATV630U30M3 Schneider Electric Industrial Automation Components

Product Details

• Range Of Product
  Altivar Process ATV600
• Mounting Mode
  Wall mount
• Device Short Name
  ATV630
• Acceleration And Deceleration Ramps
  Linear adjustable separately from 0.01...9999 s
• Depth
  7.99 in (203 mm)
• Discrete Input Number
  8
• Variant
  Standard version
• [Us] Rated Supply Voltage
  200...240 V - 15...10 %
• Output Voltage
  <= power supply voltage
• Method Of Access
  Slave Modbus TCP
• Analogue Input Number
  3
• Minimum Switching Current
  Relay output R1, R2, R3 5 mA 24 V DC
• Net Weight
  9.92 lb(US) (4.5 kg)
• Motor Power Range AC-3
  2.2…3 kW 200…240 V 3 phase
• Product Specific Application
  Process and utilities
• Supply Frequency
  50...60 Hz - 5...5 %
• Safety Function
  STO (safe torque off) SIL 3
• Width
  5.67 in (144 mm)
• Degree Of Protection
  UL type 1 UL 508C
• Output Frequency
  0.0001…0.5 kHz
Analogue Output Number
2
EMC Filter
Without EMC filter
Nominal Switching Frequency
4 kHz
Braking To Standstill
By DC injection
Height
13.78 in (350 mm)
Product Or Component Type
Variable speed drive
Prospective Line Isc
50 kA
Speed Drive Output Frequency
0.1…599 Hz
Type Of Cooling
Forced convection
Exchange Mode
Half duplex, full duplex, autonegotiation Ethernet/Modbus TCP
Relay Output Number
3
Isolation
Between power and control terminals
Number Of Addresses
1…247 Modbus serial
Refresh Time
Relay output R1, R2, R3)5 ms +/- 0.5 ms)
Continuous Output Current
13.7 A 4 kHz normal duty 11.2 A 4 kHz heavy duty
Product Destination
Synchronous motors Asynchronous motors
IP Degree Of Protection
IP21IEC 61800-5-1 IP21IEC 60529
Maximum Horse Power Rating
3 hp heavy duty 4 hp normal duty
Switching Frequency
2...12 kHz adjustable 4...12 kHz with derating factor
Analogue Output Type
Software-configurable voltage AO1, AO2 0...10 V DC 470 Ohm 10 bits Software-configurable current AO1, AO2: 0...20 mA, resolution 10 bits
Apparent Power
4.1 kVA 240 V normal duty) 3.2 kVA 240 V heavy duty)
Synchronous Motor Control Profile
Permanent magnet motor Synchronous reluctance motor
Accuracy
+/- 0.6 % AI1, AI2, AI3 for a temperature variation 60 °C analog input +/- 1 % AO1, AO2 for a temperature variation 60 °C analog output
Connector Type
RJ45 (on the remote graphic terminal) for Ethernet/Modbus TCP RJ45 (on the remote graphic terminal) for Modbus serial
Motor Power Kw
3 kW normal duty) 2.2 kW heavy duty)
Frequency Resolution
Display unit 0.1 Hz Analog input 0.012/50 Hz
Analogue Input Type
AI1, AI2, AI3 software-configurable voltage 0...10 V DC 30 kOhm 12 bits AI1, AI2, AI3 software-configurable current 0...20 mA/4...20 mA 250 Ohm 12 bits
Linearity Error
AI1, AI2, AI3 +/- 0.15 % of maximum value analog input AO1, AO2: +/- 0.2 % for analog output
Maximum Transient Current
16.8 A 60 s heavy duty) 15.1 A 60 s normal duty)
Permissible Temporary Current Boost
1.1 x In during 60 s (normal duty) 1.5 x In during 60 s (heavy duty)
Input Compatibility
DI1...DI6: discrete input level 1 PLC conforming to EN/IEC 61131-2 DI5, DI6: discrete input level 1 PLC conforming to IEC 65A-68 STOA, STOB discrete input level 1 PLC EN/IEC 61131-2
Discrete Input Type
DI1...DI6 programmable, 24 V DC (<= 30 V), impedance: 3.5 kOhm DI5, DI6 programmable as pulse input 0…30 kHz, 24 V DC <= 30 V) STOA, STOB safe torque off, 24 V DC <= 30 V)> 2.2 kOhm
Relay Output Type
Configurable relay logic R1 fault relay NO/NC 100000 cycles Configurable relay logic R2 sequence relay NO 100000 cycles Configurable relay logic R3 sequence relay NO 100000 cycles
Asynchronous Motor Control Profile
Optimized torque mode Variable torque standard Constant torque standard
Communication Port Protocol
Modbus TCP Ethernet Modbus serial
Supply
External supply for digital inputs 24 V DC 19…30 V), <1.25 mA overload and short-circuit protection Internal supply for reference potentiometer (1 to 10 kOhm) 10.5 V DC +/- 5 %, <10 mA overload and short-circuit protection Internal supply for di
Electrical Connection
Control: removable screw terminals 0.5...1.5 mm²/AWG 20...AWG 16 Motor: screw terminal 4...6 mm²/AWG 12...AWG 10 Line side screw terminal 2.5...6 mm² AWG 14...AWG 10
Protection Type
Thermal protection motor Safe torque off motor Motor phase break motor Thermal protection drive Safe torque off drive Overheating drive Overcurrent between output phases and earth drive Overload of output voltage drive
Sampling Duration
2 ms +/- 0.5 ms DI1...DI4) - discrete input 5 ms +/- 1 ms DI5, DI6) - discrete input 5 ms +/- 0.1 ms AI1, AI2, AI3) - analog input 10 ms +/- 1 ms AO1) - analog output
Discrete Input Logic
Positive logic (source) (DI1...DI6), < 5 V (state 0), > 11 V (state 1) Negative logic (sink) (DI1...DI6), > 16 V (state 0), < 10 V (state 1) Positive logic (source) (DI5, DI6), < 0.6 V (state 0), > 2.5 V (state 1) Positive logic (source) ST
Line Current
11.5 A 200 V normal duty) 9.9 A 240 V normal duty) 8.7 A 200 V heavy duty) 7.6 A 240 V heavy duty)
Motor Slip Compensation
Can be suppressed Automatic whatever the load Adjustable Not available in permanent magnet motor law
Maximum Switching Current
Relay output R1, R2, R3 resistive, cos phi = 1 3 A 250 V AC Relay output R1, R2, R3 resistive, cos phi = 1 3 A 30 V DC Relay output R1, R2, R3 inductive, cos phi = 0.4 7 ms 2 A 250 V AC Relay output R1, R2, R3 inductive, cos phi = 0.4 7 ms
Local Signalling
3 LEDs for local diagnostic 3 LEDs (dual colour) for embedded communication status 4 LEDs (dual colour) for communication module status 1 LED (red) for presence of voltage
Option Card
Slot A: communication module, Profibus DP V1 Slot A: communication module, Profinet Slot A: communication module, DeviceNet Slot A: communication module, Modbus TCP/EtherNet/IP Slot A: communication module, CANopen daisy chain RJ45

Variable Speed Drive Application Selection
Building - HVAC Compressor centrifugal Food and beverage processing Other application Mining mineral and metal Fan Mining mineral and metal Pump Oil and gas Fan Water and waste water Other application Building - HVAC Screw co
