Product description

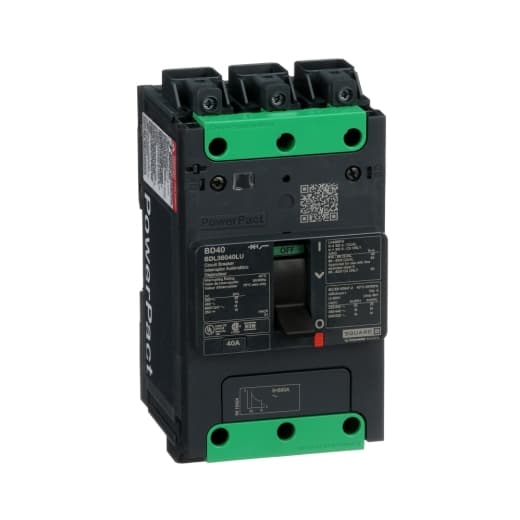

Square D by Schneider Electric BDL36040LU is a Moulded Case Circuit Breaker (MCCB) within the PowerPacT BDL sub-range, featuring a PowerPact B-Frame 100 TMD design. It is a 3-pole (3P) device with a rated current of 40A and a rated voltage of 600Vac 600Y/347Vac. This breaker is equipped with Everlink (Creep compensating) lugs on both line and load sides, plus a Control Wire terminal (CWT) on the line side only, offering a connection type designed for robustness. It has a rated impulse voltage (Uimp) of 8 kV and provides a degree of protection of IP40. The MCCB's mechanical durability is rated at 20,000 operations at no load, and it can be mounted either on a DIN rail or as an individual unit on a plate. Its protection settings include over-current fixed at 40A, short-circuit hold current fixed at 400A, and short-circuit trip current fixed at 600A. The net dimensions are 137 mm in height, 80 mm in depth, and 81 mm in width. It also features a rated insulation voltage (Ui) of 800 V, a rated operating voltage (Ue) of 525 V, and thermal and magnetic protection functions. The trip current rating is 40 AT, with an electrical durability (with load) of 10,000 operations at 440Vac. The frame current rating is 100 AF, and it operates via a toggle (manual) mode. The short circuit breaking rating varies by voltage, with 25kA at 240Vac, 18kA at 480Vac and 480Y/277Vac, and 14kA at 600Y/347Vac, all according to UL489 standards. The trip unit type is thermal-magnetic (fixed) without a display.

Product Details

  • Control Type
    Toggle
  • Continuous Current Rating
    80 %
  • Range
    PowerPact
  • [Uimp] Rated Impulse Withstand Voltage
    8 kV IEC 60947-2
  • Number Of Poles
    3P
  • Trip Unit Technology
    Thermal-magnetic
  • Mechanical Durability
    15000 cycles IEC 947-1 Annex K ed 5.2
  • Power Wire Stripping Length
    0.79 in (20 mm)
  • Protected Poles Description
    3t
  • [Ui] Rated Insulation Voltage
    800 V IEC 60947-2
  • Local Signalling
    for presence of auxiliary contacts flag (green)
  • Product Or Component Type
    Circuit breaker
  • [Ue] Rated Operational Voltage
    525 V AC 50/60 Hz UL 489
  • Suitability For Isolation
    Yes IEC 60947-2
  • 9 Mm Pitches
    9
  • Device Short Name
    BD 040
  • Trip Unit Name
    TM-D
  • Width
    3.19 in (81 mm)
  • Breaking Capacity Code
    D
  • Product Name
    PowerPact B
  • Utilisation Category
    Category A
  • Color
    Grey (RAL 7016)
  • Connection Pitch
    1.06 in (27 mm)
  • Quantity Per Set
    Set of 1
  • Line Rated Current
    40 A
  • Net Weight
    2.37 lb(US) (1.074 kg)
  • Device Application
    Distribution
  • Electrical Durability
    10000 cycles IEC 947-1 Annex K ed 5.2 440 V In
  • Depth
    3.15 in (80 mm)
  • Height
    5.39 in (137 mm)
  • Electrical Connection
    Everlink lug line Everlink lug load
  • AWG Gauge
    AWG 6...AWG 2/0 fine stranded aluminium/copper AWG 14...AWG 3/0 rigid or stranded aluminium/copper
  • Tightening Torque
    44.25 lbf.in (5 N.m) 0.00…0.02 in² (2.5…16 mm²) (AWG 14...AWG 4) 79.66 lbf.in (9 N.m) 0.04…0.15 in² (25…95 mm²) (AWG 3...AWG 3/0)
  • Mounting Mode
    Clip-on 35 mm symmetrical DIN rail) By screws plate)
  • Number Of Slots
    1 auxiliary switch OF plug-in) 1 voltage release MN or MX plug-in) 1 alarm switch SD plug-in)
  • [Ics] Rated Service Breaking Capacity
    25 kA 220...240 V AC 50/60 Hz IEC 60947-2 14 kA 500...525 V AC 50/60 Hz IEC 60947-2 18 kA 380...415 V AC 50/60 Hz IEC 60947-2 18 kA 440 V AC 50/60 Hz IEC 60947-2
  • Breaking Capacity
    25 kA 208Y/120 V AC 50/60 Hz UL 489 18 kA 240 V AC 50/60 Hz UL 489 Icu 25 kA 480/277 V AC 50/60 Hz UL 489 Icu 14 kA 480 V AC 50/60 Hz UL 489 18 kA 600Y/347 V AC 50/60 Hz UL 489 14 kA 250 V DC UL 489 25 kA Icu 18 kA

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of BDL36040LU on Powermatic Associates is $1,090.00. Order now.

BDL36040LU Related Documents

Catalog-1631034291972.pdfProduct Datasheet-1631034291918.pdfInstruction Sheet-1631034291921.pdf
