EXN112T3H Schneider Electric Industrial Automation Components

EXN112T3H on Powermatic Associates
Schneider Electric

Part#:EXN112T3H

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

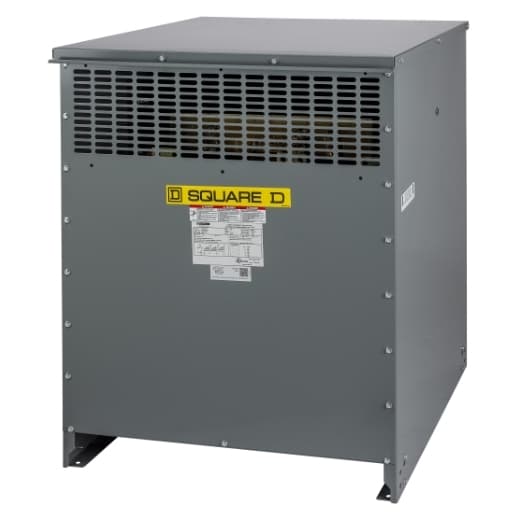

Schneider Electric - EXN112T3H

Product Details

  • %IZ
    3.70 %
  • Rated Operational Power In VA
    112.5 kVA
  • %IX
    2.94 %
  • Width
    31.30 in (795 mm)
  • Coil Material
    Aluminium
  • X/R Ratio
    1.42
  • Device Application
    Low voltage electrical distribution
  • Product Or Component Type
    DOE 2016 energy efficient transformer
  • Secondary Voltage
    208Y/120 V
  • DOE Efficiency
    98.80 % at 35 % load factor , 167 °F (75.0 °C)
  • Network Frequency
    60 Hz
  • Depth
    28.43 in (722 mm)
  • Phase
    3 phase
  • Inrush Current
    1939 A
  • Height
    37.52 in (953 mm)
  • Transformer Type
    Energy efficient
  • Primary Operational Current
    135.32 A 312.27 A 112.5 kVA
  • Number Of Mounting Holes
    0.51 in (13 mm)
  • Primary Voltage
    480 V delta
  • Range Of Product
    Square D
  • Box Number
    21M
  • Type Of Cooling
    Natural convection
  • Let Through Current
    8.44 kA
  • Net Weight
    724.00 lb(US) (328.40 kg)
  • Device Short Name
    DOE 2016
  • Basic IMP Level (BIL)
    10 kV
  • Sound Level
    47 dB 6 dB NEMA ST-20
  • Number Of Tap-Offs
    2 2.5 % FCAN 4 2.5 % FCBN
  • Degree Of Protection
    UL type 2 UL type 3R, with 7400WS21M
  • Transformer Losses
    222 no load (core loss) 2586 load loss (coil loss)
  • Temperature Rise
    150 °C 220 °C insulated
  • Electrical Connection
    4 Hole Nema Pad primary 0.44 in (11.1 mm) 4 Hole Nema Pad secondary 0.44 in (11.1 mm) 6 Hole Nema Pad sec - XO 0.44 in (11.1 mm)
  • Mounting Support
    Floor Floor, with 7400FMB Ceiling, with 7400CMB21M
  • Transformer BTU/HR
    1003 16.6 % 1309 25 % 2963 50 % 5721 75 % 9581 100 %

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of EXN112T3H on Powermatic Associates is $7,093.00. Order now.
