EXN112T3HBCU Schneider Electric Industrial Automation Components

EXN112T3HBCU on Powermatic Associates
Schneider Electric

Part#:EXN112T3HBCU

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

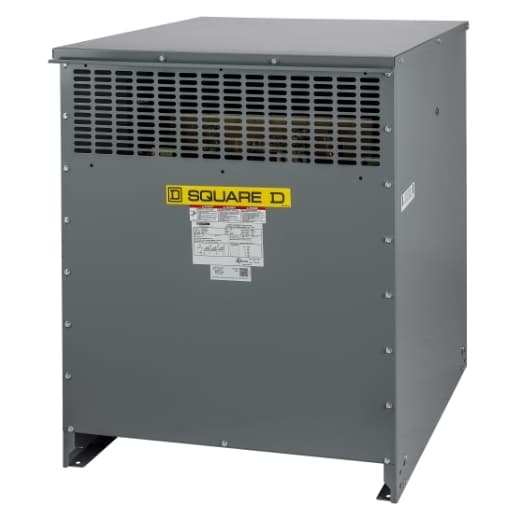

Schneider Electric - EXN112T3HBCU

Product Details

  • Type Of Cooling
    Natural convection
  • Inrush Current
    1329 A
  • Device Application
    Low voltage electrical distribution
  • X/R Ratio
    2.90
  • Device Short Name
    DOE 2016
  • %IX
    3.55 %
  • Range Of Product
    Square D
  • Basic IMP Level (BIL)
    10 kV
  • Secondary Voltage
    208Y/120 V
  • %IZ
    3.76 %
  • Net Weight
    1146.01 lb(US) (519.82 kg)
  • Product Or Component Type
    DOE 2016 energy efficient transformer
  • Width
    31.30 in (795 mm)
  • Rated Operational Power In VA
    112.5 kVA
  • DOE Efficiency
    99.00 % at 35 % load factor , 167 °F (75.0 °C)
  • Box Number
    21M
  • Primary Operational Current
    135.32 A 312.27 A 112.5 kVA
  • Let Through Current
    8.80 kA
  • Primary Voltage
    480 V delta
  • Depth
    28.43 in (722 mm)
  • Phase
    3 phase
  • Coil Material
    Copper
  • Height
    37.52 in (953 mm)
  • Transformer Type
    Energy efficient
  • Network Frequency
    60 Hz
  • Number Of Mounting Holes
    0.51 in (13 mm)
  • Degree Of Protection
    UL type 2 UL type 3R, with 7400WS21M
  • Mounting Support
    Floor Floor, with 7400FMB Ceiling, with 7400CMB21M
  • Transformer BTU/HR
    914 16.6 % 1087 25 % 2025 50 % 3588 75 % 5777 100 %
  • Transformer Losses
    227 no load (core loss) 1466 load loss (coil loss)
  • Number Of Tap-Offs
    2 2.5 % FCAN 4 2.5 % FCBN
  • Sound Level
    47 dB 3 dB NEMA ST-20
  • Temperature Rise
    80 °C 220 °C insulated
  • Electrical Connection
    4 Hole Nema Pad secondary 0.44 in (11.1 mm) 6 Hole Nema Pad sec - XO 0.44 in (11.1 mm) 4 Hole Nema Pad primary 0.44 in (11.1 mm)

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of EXN112T3HBCU on Powermatic Associates is $16,923.00. Order now.
