Product description

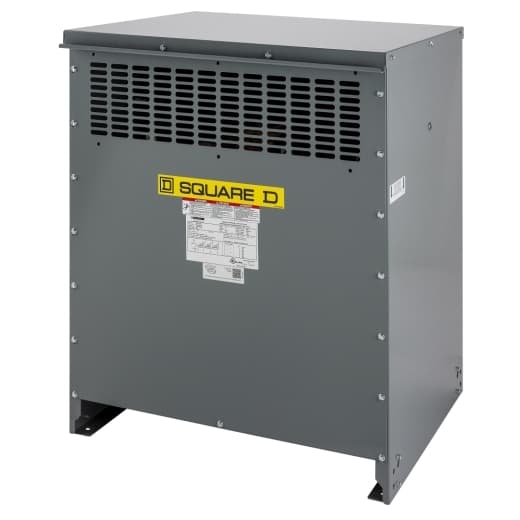

Schneider Electric - EXN150T3HCU

Product Details

  • Rated Operational Power In VA
    150 kVA
  • DOE Efficiency
    98.98 % at 35 % load factor , 167 °F (75.0 °C)
  • Number Of Mounting Holes
    0.51 in (13 mm)
  • Product Or Component Type
    DOE 2016 energy efficient transformer
  • Let Through Current
    11.57 kA
  • Basic IMP Level (BIL)
    10 kV
  • Network Frequency
    60 Hz
  • Box Number
    22M
  • Primary Operational Current
    180.42 A 416.36 A 150 kVA
  • %IX
    3.26 %
  • Range Of Product
    Square D
  • Phase
    3 phase
  • Coil Material
    Copper
  • Inrush Current
    1633 A
  • Device Short Name
    DOE 2016
  • Primary Voltage
    480 V delta
  • X/R Ratio
    1.70
  • Depth
    32.56 in (827 mm)
  • Transformer Type
    Energy efficient
  • Type Of Cooling
    Natural convection
  • %IZ
    3.79 %
  • Height
    40.59 in (1031 mm)
  • Device Application
    Low voltage electrical distribution
  • Secondary Voltage
    208Y/120 V
  • Width
    33.66 in (855 mm)
  • Net Weight
    1155.99 lb(US) (524.35 kg)
  • Temperature Rise
    150 °C 220 °C insulated
  • Number Of Tap-Offs
    2 2.5 % FCAN 4 2.5 % FCBN
  • Sound Level
    47 dB 3 dB NEMA ST-20
  • Degree Of Protection
    UL type 2 UL type 3R, with 7400WS22M
  • Transformer Losses
    263 no load (core loss) 2796 load loss (coil loss)
  • Mounting Support
    Floor Floor, with 7400FMB Ceiling, with 7400CMB22M
  • Electrical Connection
    4 Hole Nema Pad secondary 0.44 in (11.1 mm) 6 Hole Nema Pad sec - XO 0.44 in (11.1 mm) 2 Hole Nema Pad primary 0.44 in (11.1 mm)
  • Transformer BTU/HR
    1163 16.6 % 1494 25 % 3282 50 % 6264 75 % 10438 100 %

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of EXN150T3HCU on Powermatic Associates is $15,656.00. Order now.
