EXN75T3155H Schneider Electric Industrial Automation Components

EXN75T3155H on Powermatic Associates
Schneider Electric

Part#:EXN75T3155H

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

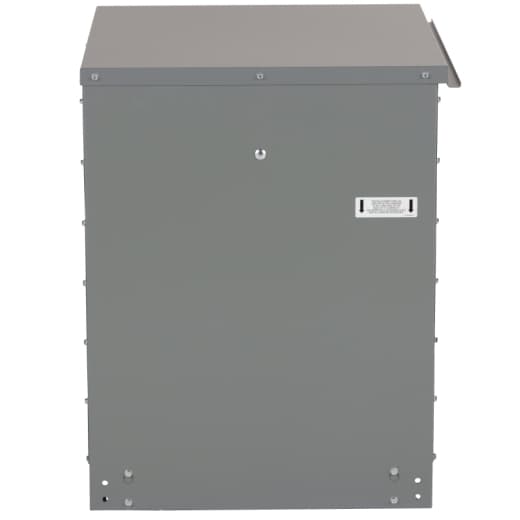

Schneider Electric - EXN75T3155H

Product Details

  • Transformer BTU/HR
    737 16.6 % 976 25 % 2267 50 % 4419 75 % 7432 100 %
  • Mounting Support
    Floor Floor, with 7400FMB Ceiling, with 7400CMB18M19M20M Wall, with 7400WMB18M19M20M
  • Electrical Connection
    2 Hole Nema Pad secondary 0.44 in (11.1 mm) 4 Hole Nema Pad sec - HO 0.44 in (11.1 mm) 4 Hole Nema Pad primary 0.44 in (11.1 mm)
  • Sound Level
    47 dB 6 dB NEMA ST-20
  • Temperature Rise
    150 °C 220 °C insulated
  • Degree Of Protection
    UL type 2 UL type 3R, with 7400WS18M19M20M
  • Transformer Losses
    160 no load (core loss) 2018 load loss (coil loss)
  • Number Of Mounting Holes
    0.51 in (13 mm)
  • Net Weight
    543.99 lb(US) (246.75 kg)
  • Width
    30.08 in (764 mm)
  • Depth
    27.44 in (697 mm)
  • Height
    33.50 in (851 mm)
  • Let Through Current
    2.29 kA
  • Inrush Current
    2207 A
  • %IX
    3.14 %
  • X/R Ratio
    1.33
  • %IZ
    4.05 %
  • Basic IMP Level (BIL)
    10 kV
  • DOE Efficiency
    98.64 % at 35 % load factor , 167 °F (75.0 °C)
  • Coil Material
    Aluminium
  • Secondary Voltage
    480Y/277 V
  • Primary Operational Current
    180.42 A 90.21 A 75 kVA
  • Primary Voltage
    208 V delta
  • Type Of Cooling
    Natural convection
  • Rated Operational Power In VA
    75 kVA
  • Network Frequency
    60 Hz
  • Phase
    3 phase
  • Box Number
    20M
  • Device Application
    Low voltage electrical distribution
  • Device Short Name
    DOE 2016
  • Transformer Type
    Energy efficient
  • Product Or Component Type
    DOE 2016 energy efficient transformer
  • Range Of Product
    Square D

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of EXN75T3155H on Powermatic Associates is $7,401.00. Order now.
