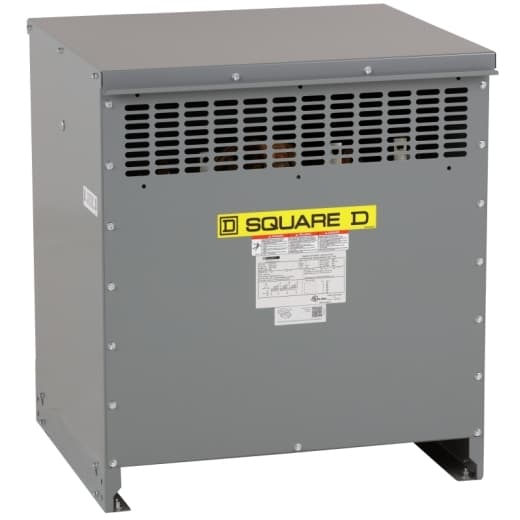

EXN75T3HFCU Schneider Electric Industrial Automation Components

Product Details

• Transformer BTU/HR
  656 16.6 % 871 25 % 2031 50 % 3964 75 % 6671 100 %
• Mounting Support
  Floor Floor, with 7400FMB Ceiling, with 7400CMB18M19M20M Wall, with 7400WMB18M19M20M
• Electrical Connection
  2 Hole Nema Pad secondary 0.44 in (11.1 mm) 4 Hole Nema Pad sec - XO 0.44 in (11.1 mm) 4 Hole Nema Pad primary 0.44 in (11.1 mm)
• Degree Of Protection
  UL type 2 UL type 3R, with 7400WS18M19M20M
• Sound Level
  47 dB 6 dB NEMA ST-20
• Number Of Tap-Offs
  2 2.5 % FCAN 4 2.5 % FCBN
• Transformer Losses
  142 no load (core loss) 1813 load loss (coil loss)
• Temperature Rise
  115 °C 220 °C insulated
• Number Of Mounting Holes
  0.51 in (13 mm)
• Width
  30.08 in (764 mm)
• Net Weight
  653.01 lb(US) (296.20 kg)
• Depth
  27.44 in (697 mm)
• Height
  33.50 in (851 mm)
• Let Through Current
  5.19 kA
• Inrush Current
  852 A
• %IX
  3.28 %
• %IZ
  4.01 %
• Secondary Voltage
  208Y/120 V
• X/R Ratio
  1.29
• DOE Efficiency
  98.74 % at 35 % load factor , 167 °F (75.0 °C)
Basic IMP Level (BIL)
10 kV
Coil Material
Copper
Primary Operational Current
90.21 A 208.18 A 75 kVA
Primary Voltage
480 V delta
Type Of Cooling
Natural convection
Range Of Product
Square D
Device Short Name
DOE 2016
Device Application
Low voltage electrical distribution
Phase
3 phase
Box Number
20M
Product Or Component Type
DOE 2016 energy efficient transformer
Transformer Type
Energy efficient
Network Frequency
60 Hz
Rated Operational Power In VA
75 kVA
