Part#:EXN75T6HCT

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

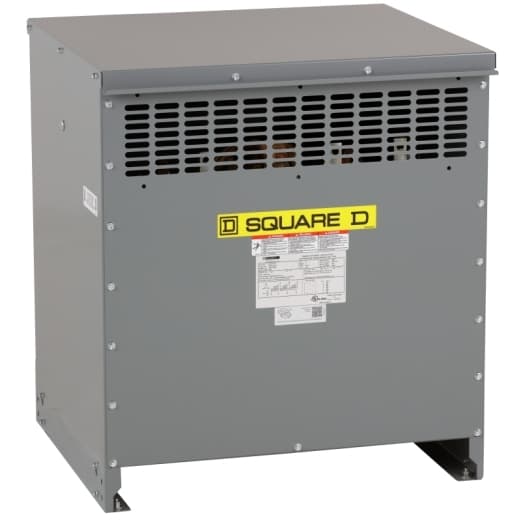

Schneider Electric - EXN75T6HCT

Product Details

  • Transformer BTU/HR
    693 16.6 % 945 25 % 2305 50 % 4572 75 % 7746 100 %
  • Mounting Support
    Floor Floor, with 7400FMB Ceiling, with 7400CMB18M19M20M Wall, with 7400WMB18M19M20M
  • Temperature Rise
    150 °C 220 °C insulated
  • Sound Level
    47 dB 6 dB NEMA ST-20
  • Number Of Tap-Offs
    2 2.5 % FCAN 4 2.5 % FCBN
  • Transformer Losses
    144 no load (core loss) 2126 load loss (coil loss)
  • Secondary Voltage
    240 V delta Centre tap 120 V
  • Degree Of Protection
    UL type 2 UL type 3R, with 7400WS18M19M20M
  • Electrical Connection
    4 Hole Nema Pad primary 0.44 in (11.1 mm)
  • Width
    30.08 in (764 mm)
  • Net Weight
    529.00 lb(US) (239.95 kg)
  • Number Of Mounting Holes
    0.51 in (13 mm)
  • Depth
    27.44 in (697 mm)
  • Height
    33.50 in (851 mm)
  • Let Through Current
    3.55 kA
  • Inrush Current
    777 A
  • %IZ
    5.08 %
  • X/R Ratio
    1.83
  • %IX
    4.30 %
  • DOE Efficiency
    98.66 % at 35 % load factor , 167 °F (75.0 °C)
  • Basic IMP Level (BIL)
    10 kV
  • Coil Material
    Aluminium
  • Primary Voltage
    480 V delta
  • Primary Operational Current
    90.21 A 180.42 A 75 kVA
  • Rated Operational Power In VA
    75 kVA
  • Box Number
    20M
  • Type Of Cooling
    Natural convection
  • Network Frequency
    60 Hz
  • Device Application
    Low voltage electrical distribution
  • Device Short Name
    DOE 2016
  • Transformer Type
    Energy efficient
  • Phase
    3 phase
  • Product Or Component Type
    DOE 2016 energy efficient transformer
  • Range Of Product
    Square D

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of EXN75T6HCT on Powermatic Associates is $5,978.00. Order now.
