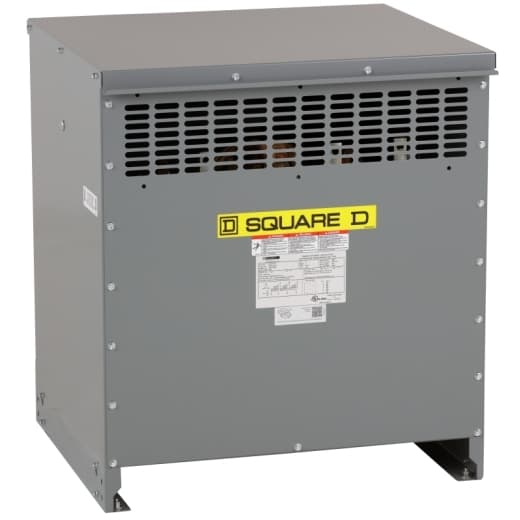

EXN75T3HF Schneider Electric Industrial Automation Components

EXN75T3HF on Powermatic Associates
Schneider Electric

Part#:EXN75T3HF

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

Schneider Electric - EXN75T3HF

Product Details

  • Transformer BTU/HR
    679 16.6 % 913 25 % 2180 50 % 4300 75 % 7268 100 %
  • Mounting Support
    Floor Floor, with 7400FMB Ceiling, with 7400CMB18M19M20M Wall, with 7400WMB18M19M20M
  • Electrical Connection
    2 Hole Nema Pad secondary 0.44 in (11.1 mm) 4 Hole Nema Pad sec - XO 0.44 in (11.1 mm) 4 Hole Nema Pad primary 0.44 in (11.1 mm)
  • Sound Level
    47 dB 6 dB NEMA ST-20
  • Number Of Tap-Offs
    2 2.5 % FCAN 4 2.5 % FCBN
  • Transformer Losses
    144 no load (core loss) 1979 load loss (coil loss)
  • Temperature Rise
    115 °C 220 °C insulated
  • Degree Of Protection
    UL type 2 UL type 3R, with 7400WS18M19M20M
  • Number Of Mounting Holes
    0.51 in (13 mm)
  • Width
    30.08 in (764 mm)
  • Net Weight
    526.99 lb(US) (239.04 kg)
  • Inrush Current
    777 A
  • %IX
    4.41 %
  • X/R Ratio
    1.83
  • Depth
    27.44 in (697 mm)
  • Height
    33.50 in (851 mm)
  • %IZ
    5.07 %
  • Let Through Current
    4.11 kA
  • Basic IMP Level (BIL)
    10 kV
  • Secondary Voltage
    208Y/120 V
  • Coil Material
    Aluminium
  • DOE Efficiency
    98.67 % at 35 % load factor , 167 °F (75.0 °C)
  • Primary Operational Current
    90.21 A 208.18 A 75 kVA
  • Primary Voltage
    480 V delta
  • Type Of Cooling
    Natural convection
  • Network Frequency
    60 Hz
  • Device Application
    Low voltage electrical distribution
  • Phase
    3 phase
  • Transformer Type
    Energy efficient
  • Box Number
    20M
  • Product Or Component Type
    DOE 2016 energy efficient transformer
  • Rated Operational Power In VA
    75 kVA
  • Device Short Name
    DOE 2016
  • Range Of Product
    Square D

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of EXN75T3HF on Powermatic Associates is $6,548.00. Order now.
