EZM11200GCBEMS Schneider Electric Industrial Automation Components

EZM11200GCBEMS on Powermatic Associates
Schneider Electric

Part#:EZM11200GCBEMS

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

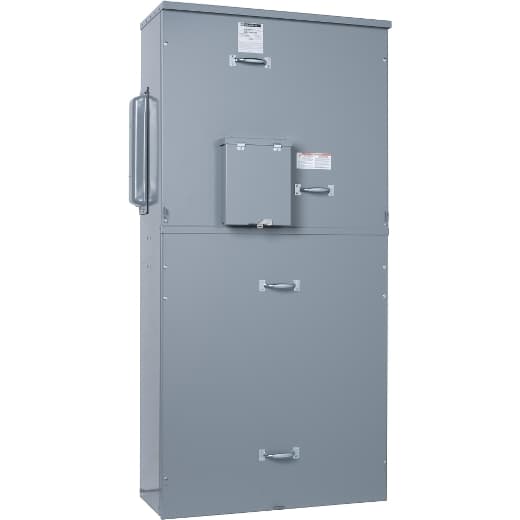

Square D by Schneider Electric EZM11200GCBEMS is a meter center main unit designed for wall mounting. It features a steel enclosure and aluminium busbar, ensuring durability and robustness for its intended applications. This unit is protected to a NEMA 3R degree, making it suitable for both indoor and rainproof environments. With dimensions of H1683mm x W823mm x D348mm (H66.26" x W32.4" x D13.7"), it operates at a rated voltage of 120Vac/240Vac. It is a single-phase indoor/rainproof metering center main unit that comes pre-equipped with an incoming breaker and an Energy Reduction Maintenance Switch (ERMS). The connection to the system is made through a busbar connection, supporting a rated current of 1200A for both the main and busbar. It is compatible with a single-phase (1PH-3W) network and allows for a cross-section of 1 x 6AWG to 300kcmil aluminium/copper lugs for the ground connection.

Product Details

  • Product Or Component Type
    Meter center main unit
  • Depth
    13.70 in (347.98 mm)
  • Device Mounting
    Wall mounted
  • Main Rated Current
    1200 A
  • Material
    Aluminium busbar
  • Width
    32.40 in (822.96 mm)
  • Enclosure Material
    Steel
  • Service Feed Location
    UG
  • Height
    66.26 in (1683.00 mm)
  • Bus Rated Current
    1200 A
  • Main Type
    Main Circuit Breaker
  • Wiring Configuration
    3-wire
  • Range Of Product
    EZ meter-pak
  • [Ue] Rated Operational Voltage
    120/240 V AC
  • Number Of Phases
    1 phase in 1 phase out
  • Electrical Connection
    Lugs 1 AWG 6...300 kcmil aluminium/copper) ground Busbar connection
  • Included Items
    Circuit breaker 1) 2P 1200 A 65 kA main supply, ready assembled Closing plate

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of EZM11200GCBEMS on Powermatic Associates is $36,044.30. Order now.
