EZM11200JCBE Schneider Electric Industrial Automation Components

EZM11200JCBE on Powermatic Associates
Schneider Electric

Part#:EZM11200JCBE

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

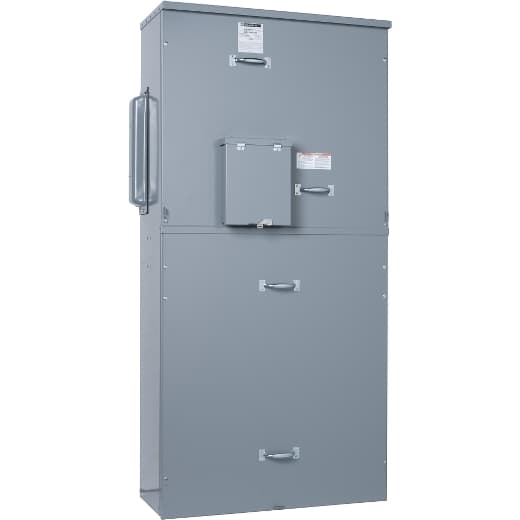

Square D by Schneider Electric EZM11200JCBE is a meter center main unit designed for surface mounting. It features a steel enclosure and an aluminium busbar, ensuring compatibility with indoor and rainproof environments as indicated by its NEMA 3R protection degree. This unit measures H1681mm x W823mm x D348mm (H66.2" x W32.39" x D13.69") and operates at a rated voltage of 120Vac/240Vac. It is designed for a single-phase (1PH-3W) network and supports a rated current of 1200A for both the main unit and the busbar. The EZM11200JCBE accommodates 1 x 6AWG to 300kcmil aluminium/copper lugs for grounding, catering to a wide range of wiring requirements.

Product Details

  • Device Mounting
    Surface
  • Main Type
    Main Circuit Breaker
  • Range Of Product
    EZ meter-pak
  • Main Rated Current
    1200 A
  • Bus Rated Current
    1200 A
  • Service Feed Location
    UG
  • Enclosure Material
    Steel
  • Wiring Configuration
    3-wire
  • Product Or Component Type
    Meter center main unit
  • Material
    Aluminium busbar
  • Height
    66.20 in (1681.48 mm)
  • [Ue] Rated Operational Voltage
    120/240 V AC
  • Width
    32.39 in (822.71 mm)
  • Depth
    13.69 in (347.73 mm)
  • Included Items
    Closing plate Circuit-breaker2P 1200 A 100 kA
  • Number Of Phases
    1 phase in 1 phase out
  • Electrical Connection
    Lugs 1 AWG 6...300 kcmil aluminium/copper) ground Studs 3line Studs 3neutral

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of EZM11200JCBE on Powermatic Associates is $31,998.00. Order now.
