EZM1400CB250 Schneider Electric Industrial Automation Components

EZM1400CB250 on Powermatic Associates
Schneider Electric

Part#:EZM1400CB250

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

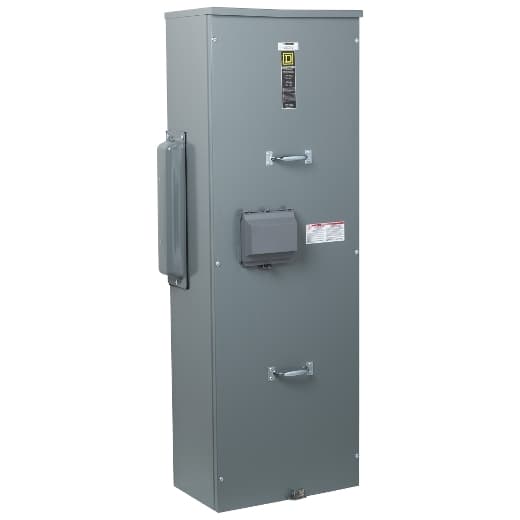

Square D by Schneider Electric EZM1400CB250 is a meter center main unit designed for surface mounting. It features a steel enclosure and aluminium busbar, ensuring durability and conductivity. With a degree of protection rated at NEMA 3R, this unit is suitable for both indoor and rainproof applications. It measures H1371mm x W474mm x D292mm (H53.97" x W18.66" x D11.5") and operates at a rated voltage of 120Vac/240Vac. The EZM1400CB250 is a single-phase (1PH-3W) indoor/rainproof metering center main unit pre-equipped with a special LH incoming breaker. It supports a main rated current of 250A and a busbar rated current of 400A. The unit accommodates a wide range of wire sizes, including 1 x 6AWG...300kcmil for aluminium/copper ground lugs, 1 x 1AWG...600kcmil and 2 x 1AWG...250kcmil for aluminium/copper line lugs, as well as 1 x 1AWG...600kcmil and 2 x 1AWG...250kcmil for aluminium/copper neutral lugs.

Product Details

  • Range Of Product
    EZ meter-pak
  • Main Rated Current
    250 A
  • Wiring Configuration
    3-wire
  • [Ue] Rated Operational Voltage
    120/240 V AC
  • Height
    53.97 in (1370.84 mm)
  • Bus Rated Current
    400 A
  • Product Or Component Type
    Meter center main unit
  • Main Type
    Main Circuit Breaker
  • Depth
    11.50 in (292.10 mm)
  • Material
    Aluminium busbar
  • Width
    18.66 in (473.96 mm)
  • Device Mounting
    Surface
  • Enclosure Material
    Steel
  • Service Feed Location
    OH UG
  • Included Items
    Closing plate Circuit breaker2P 250 A 65 kA
  • Number Of Phases
    1 phase in 1 phase out
  • Electrical Connection
    Lugs 1 AWG 6...300 kcmil aluminium/copper) ground Lugs 1 AWG 1...600 kcmil aluminium/copper) line Lugs 2 AWG 1...250 kcmil aluminium/copper) line Lugs 1 AWG 1...600 kcmil aluminium/copper) neutral Lugs 2 AWG 1...250 kcmil aluminium/cop

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of EZM1400CB250 on Powermatic Associates is $6,338.00. Order now.
