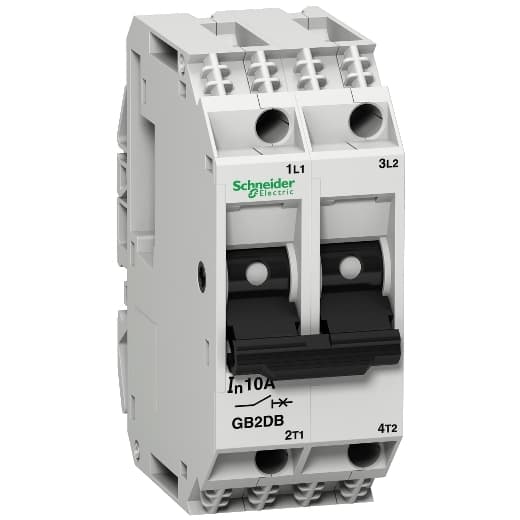

GB2DB12 Schneider Electric Industrial Automation Components

Product Details

• Trip Unit Technology
  Thermal-magnetic
• Height
  2.91 in (74 mm)
• Network Type
  AC/DC
• Product Name
  TeSys GB2
• Mechanical Durability
  8000 cycles
• 9 Mm Pitches
  4
• Product Or Component Type
  Circuit breaker
• Control Type
  Toggle
• Tightening Torque
  10.62 lbf.in (1.2 N.m) connector
• Device Application
  Control
• Power Dissipation Per Pole
  2 W
• Depth
  2.76 in (70 mm)
• Device Short Name
  GB2
• Mounting Mode
  By clips
• Network Frequency
  50/60 Hz IEC 60947-2
• [Uimp] Rated Impulse Withstand Voltage
  4 kV IEC 60947-2
• Net Weight
  0.25 lb(US) (0.115 kg)
• Range
  TeSys
• Quantity Per Set
  Set of 3
• Electrical Durability
  8000 cycles
Poles Description
2P
Line Rated Current
6 A
Width
1.18 in (30 mm)
Magnetic Tripping Current
83 A
[Ue] Rated Operational Voltage
415 V AC 50/60 Hz IEC 60947-2 48 V DC
Mounting Support
Rail Plate
Mounting Position
Horizontal Vertical
Mechanical Robustness
Shocks 22 Gn for 20 ms IEC 60068-2-27 Vibrations 5 Gn, 5...110 Hz IEC 60068-2-6
Utilisation Category
Category A conforming to IEC 60947-2 DC-12 IEC 60947-5-1 DC-13 IEC 60947-5-1
[Ics] Rated Service Short-Circuit Breaking Capacity
75 % 110 V AC 50/60 Hz IEC 60947-2 75 % 230/240 V AC 50/60 Hz IEC 60947-2 75 % 400/415 V AC 50/60 Hz IEC 60947-2
Connections - Terminals
connector 1 0.00…0.01 in² (0.75…6 mm²)solid without cable end connector 2 0.00…0.01 in² (0.75…4 mm²)solid without cable end connector 1 0.00…0.01 in² (0.75…4 mm²)flexible with cable end connector 2 0.00…0.00 in² (0.75…2.5 mm²)flexible wi
Breaking Capacity
3 kA Icu 110 V AC 50/60 Hz IEC 60947-2 1.5 kA Icu 230/240 V AC 50/60 Hz IEC 60947-2 1.5 kA Icu 400/415 V AC 50/60 Hz IEC 60947-2 1.5 kA Icu 24 V DC IEC 60947-2 1 kA Icu 48 V DC IEC 60947-2
